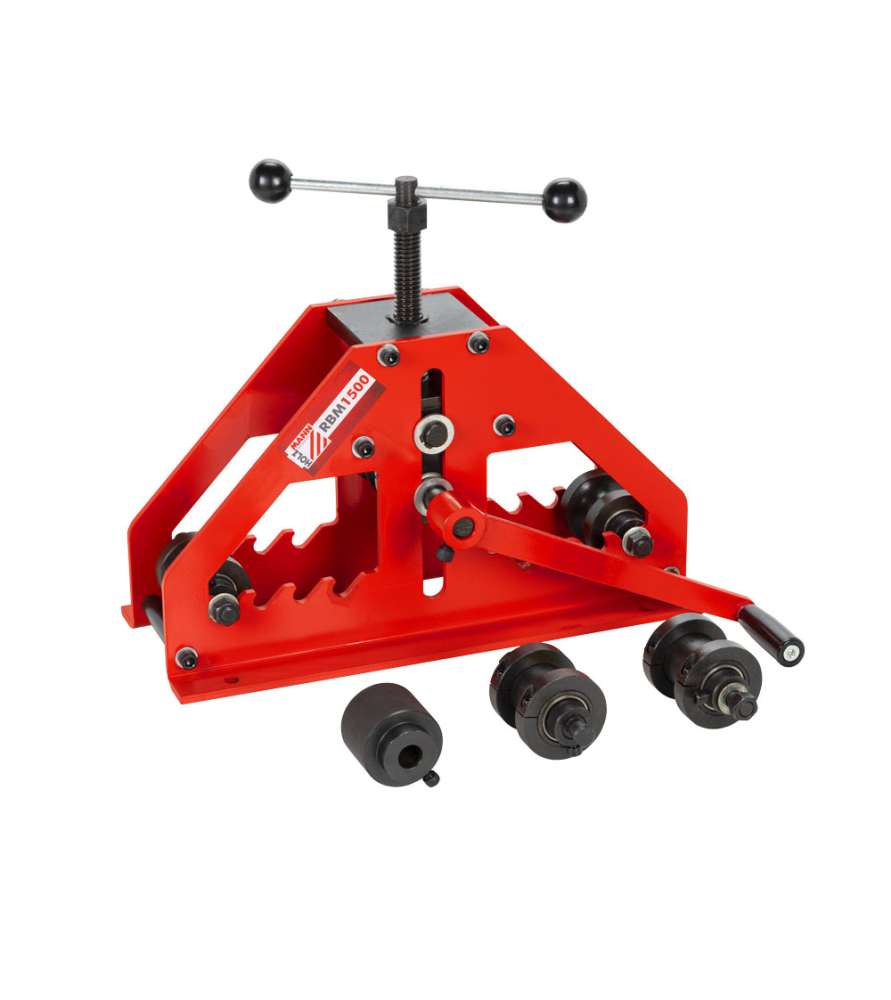

Holzmann RBM1500 Tube and Profile Bender

Holzmann RBM1500 tube and profile bender designed for the manual bending of round tubes and square profiles.

It allows bending of round tubes up to Ø38 mm and square profiles up to 40 x 40 mm, with a maximum wall thickness of 2 mm.

Robust and compact, this Holzmann manual tube bender offers a bending angle from 0 to 360° and is ideal for locksmithing, metalworking, ornamental ironwork and arch fabrication.

A versatile manual bender for tubes and profiles

The Holzmann RBM1500 is a tube and profile bender designed for the manual bending of various metal profiles. This machine allows the creation of curved shapes, arches, rings and large radius bends on tubes and profiles used in locksmithing, metalworking and ornamental ironwork.

Thanks to its robust and compact design, this manual tube bender is suitable for craftsmen, maintenance workshops and users looking for a compact solution for bending small and medium-sized tubes and profiles with precision.

What is the Holzmann RBM1500 used for?

Manufacturing arches, rings and metal structures

The Holzmann RBM1500 bender progressively forms tubes and profiles to create:

• metal arches,
• circles and rings,
• tubular frames,
• guardrails,
• decorative metal elements,
• curved structures for locksmithing and ornamental ironwork.

Its roller system ensures progressive bending while limiting excessive deformation of the profiles.

Bending capacities of the Holzmann RBM1500

For round tubes and square profiles

This Holzmann tube and profile bender accepts:

• round tubes up to Ø38 mm,
• square profiles up to 40 x 40 mm,
• a maximum wall thickness of 2 mm.

The adjustable bending angle from 0 to 360° allows the creation of simple curves, large radius bends and complete circular shapes depending on the project requirements.

Four working positions

The Holzmann RBM1500 features four different working positions allowing the machine to be adapted according to the profile type and the desired bending radius.

This versatility makes it easier to work on different metal sections while improving bending precision.

Robust construction and comfortable operation

Q235 steel construction

The Holzmann RBM1500 manual bender benefits from a robust Q235 steel structure, ensuring excellent rigidity during bending operations.

Its compact design allows easy installation on a workbench or fixed support thanks to the mounting holes provided on the base.

Long handle for reduced effort

The machine is equipped with a long operating handle allowing better force transmission during bending.

The bending diameter is easily adjusted thanks to the manual center roller adjustment system.

Accessories included with the RBM1500

Supplied roller sets

The Holzmann RBM1500 is supplied with:

• 1 roller set for round tubes,
• 1 roller set for square profiles,
• upper and lower rollers,
• operating handle.

Holzmann RBM1500 technical specifications

Main technical data

• Model: Holzmann RBM1500
• Type: manual tube and profile bender
• Construction: Q235 steel
• Maximum round tube diameter: Ø38 mm
• Maximum square profile: 40 x 40 mm
• Maximum wall thickness: 2 mm
• Bending angle: 0 to 360°
• Machine dimensions: 490 x 330 x 330 mm
• Net weight: 36.5 kg
• Gross weight: 38.1 kg
• Packing dimensions: 560 x 285 x 410 mm
• EAN code: 9120058378676

Important information before purchase

Actual capacity depending on the material used

Bending capacities may vary depending on:

• the material used,
• tube wall thickness,
• profile quality,
• and the desired bending radius.

For very tight bends or small circle diameters, it is recommended to verify compatibility according to the section being used.
