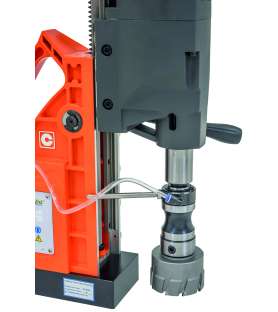

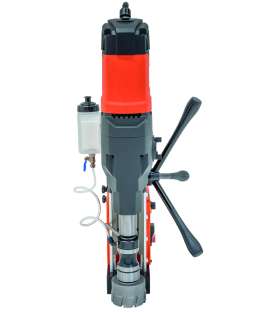

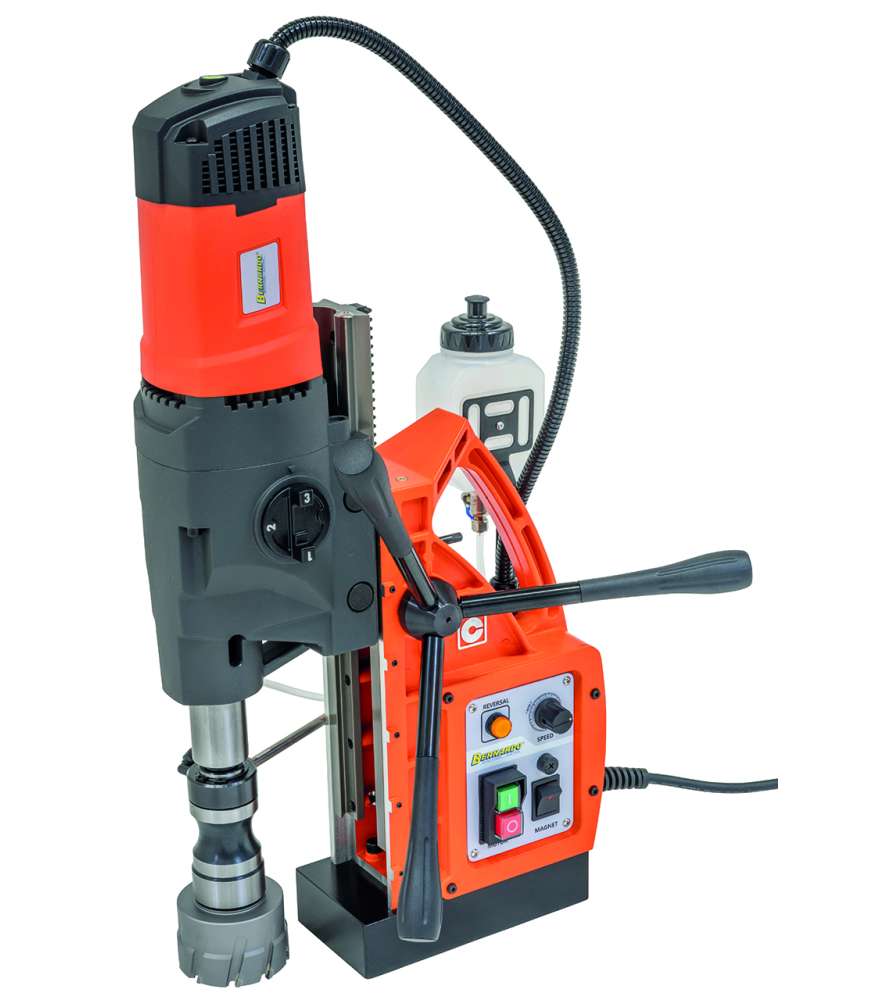

Bernardo TPC2000PRO magnetic-core drilling machine – Maximum capacity and performance

The Bernardo TPC2000PRO magnetic drill is a high-end magnetic drilling machine, designed for demanding applications in steel construction and heavy industry. It features a powerful 1980 W high-torque motor with soft start and overload protection.

Its 3-speed gearbox (100 / 210 / 530 rpm) allows precise adjustment for core drilling, tapping, reaming, and countersinking. The MT3 spindle ensures high versatility.

Advantages

• Magnetic force: 16,800 N

• 3-speed gearbox

• High-torque motor

• Automatic internal cooling

• MT3 spindle

• Weldon 19 / 32 mm

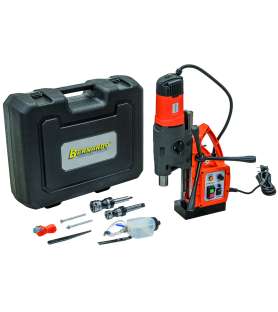

Delivery contents

• Plastic case

• Coolant tank

• Spirit level

• Tool holder with internal cooling (MT3 / Weldon)

• Safety belt

• Tools

• Manual

Technical specifications

• Core drill max. : Ø 85mm
• Core drill max. drilling depth : 50mm
• Spiral drill max. : Ø 25mm
• Drilling head travel distance max. : 190mm
• Thread cutting max. : Highway M20
• Idle speed : 100 - 210/250/530 rpm
• spindle mount : MK 3
• Weldonschaft admission : 19 mm/32 mm
• Distance between spindle and base plate max.* : 190mm
• Distance between weldon mount and base plate max.* : 80mm
• magnetic holding force : 16800 N
• Magnetic base dimensions (L x W x H) : 200 x 105 x 45mm
• engine power : 1980 W
• Tension : 230 V
• Machine dimensions (W x D x H) : 300 x 390 x 680 mm
• Weight ca. : 18 kg
• *Expandable by up to 80 mm
