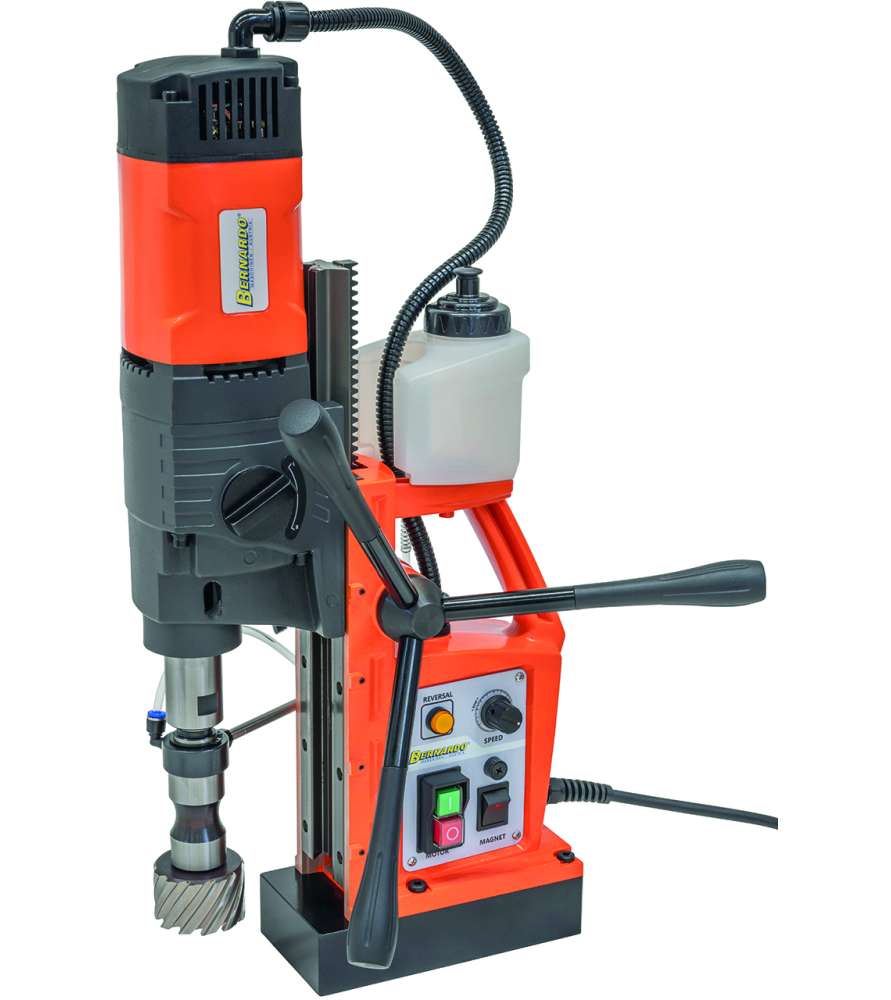

Bernardo TPC2200 magnetic drill – Maximum power for intensive steel applications

The Bernardo TPC2200 magnetic drill is a high-performance magnetic drilling machine, designed for demanding applications in steel construction, heavy industry, and mechanical engineering. Equipped with a powerful 1890 W high-torque motor with soft start and overload protection, it ensures maximum performance, reliability, and safety.

Its variable speed with two ranges (100–210 / 210–520 rpm) allows precise adjustment for operations such as core drilling, tapping, reaming, and countersinking. The MT3 spindle (Morse Taper 3) provides increased capacity and excellent versatility for a wide range of tools.

Key features and benefits

• Powerful electromagnetic base (15,800 N) for maximum holding force and safety

• High-torque motor with soft start and overload protection

• Variable speed (100–210 / 210–520 rpm) for optimal cutting performance

• Automatic internal lubrication system, delivering coolant directly to the cutting edge

• MT3 spindle (Morse Taper 3) for increased capacity and versatility

• 19 mm Weldon tool holder compatible with a wide range of cutters and accessories

• Heavy-duty construction for intensive professional use

Ideal applications

• heavy steel construction

• industrial maintenance

• metal fabrication

• demanding workshop and on-site operations

Delivery contents

• Plastic carrying case

• Coolant container

• Tool holder with automatic internal cooling (MT3 / Weldon 19 mm)

• Safety belt

• Service tools

• User manual

Technical specifications
