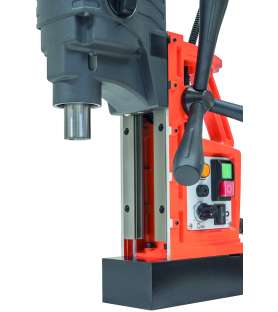

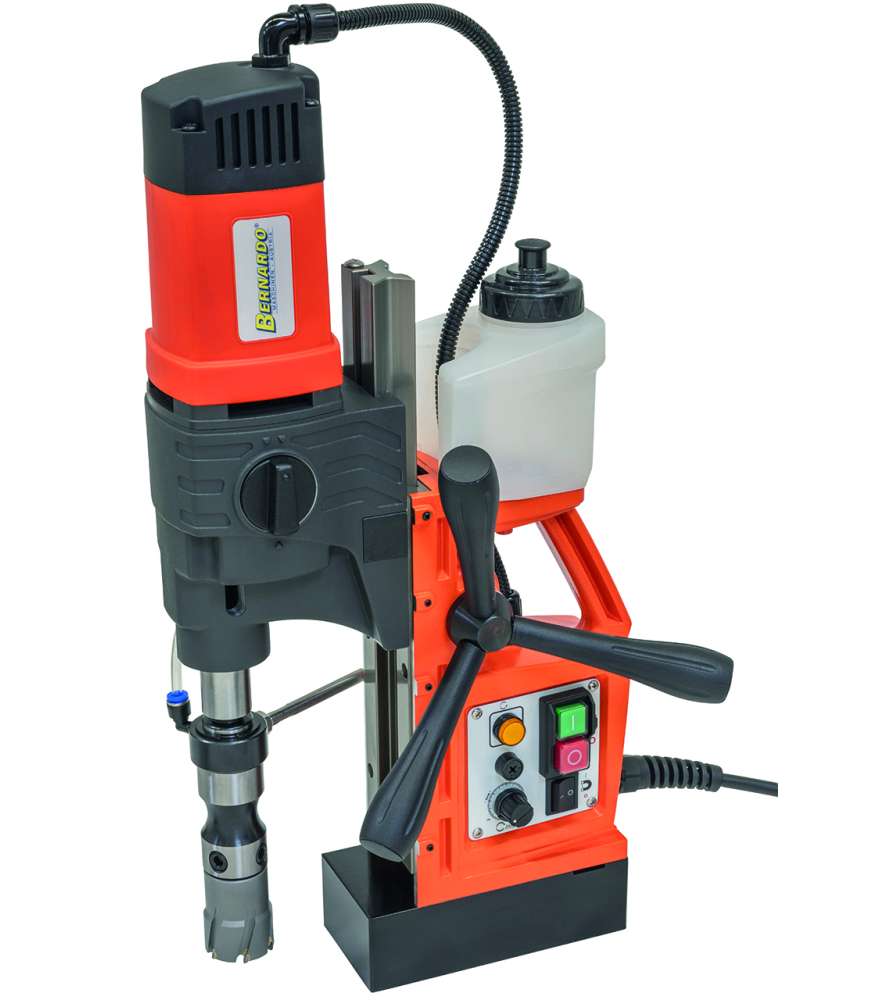

Magnetic-drilling and -tapping machine Bernardo TPC1000 with MT2 spindle and dual speed range

This magnetic drill is designed for precision work in steel construction, maintenance, and mechanical engineering. Equipped with a powerful 1550 W motor with soft start and overload protection, it ensures reliable performance and durability.

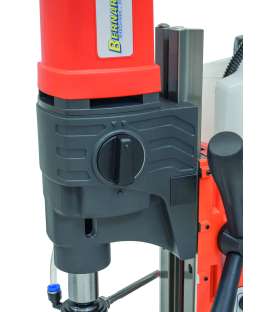

Its variable speed (2 ranges: 100–270 / 100–520 rpm) allows optimal adjustment for core drilling, tapping, reaming, and countersinking. The MT2 spindle provides excellent versatility for multiple tools.

Advantages of the magnetic-drilling and -tapping machine Bernardo TPC1000

• Variable speed (100–270 / 100–520 rpm)
• Automatic internal cooling system
• MT2 spindle (Morse Taper 2)
• Weldon 19 mm tool holder
• Soft start motor with overload protection
• Magnetic holding force: 14,200 N

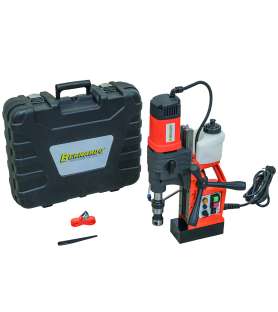

Delivery contents

• Plastic case
• Coolant container

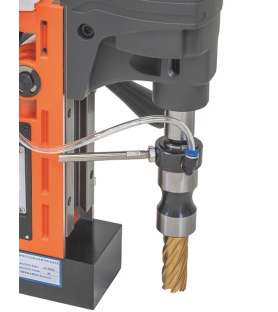

• Tool holder with automatic internal cooling (MT2 / Weldon 19 mm)
• Safety belt
• Service tools
• User manual

Technical specifications of the magnetic-drilling and -tapping machine Bernardo TPC1000

Max annular cutter : Ø 36 mm

Max drilling depth : 50 mm

Max twist drill : Ø 18 mm

Stroke : 170 mm

Max tapping : M18

Speed : 100–270 / 100–520 rpm

Spindle : MT2

Weldon holder : 19 mm

Spindle to base : 180 mm

Weldon to base : 80 mm

Magnetic force : 14,200 N

Base : 165 × 80 × 50 mm

Motor : 1550 W

Voltage : 230 V

Dimensions : 170 × 280 × 430 mm

Weight : approx. 12.5 kg
