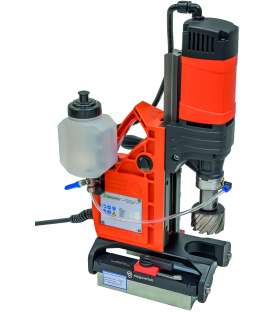

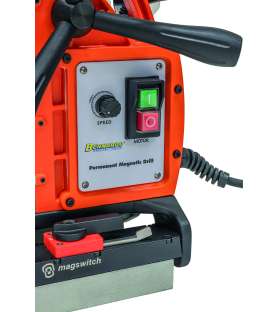

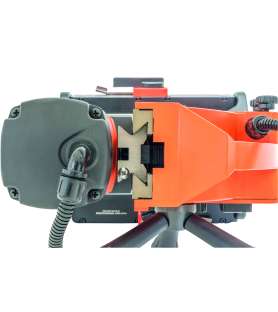

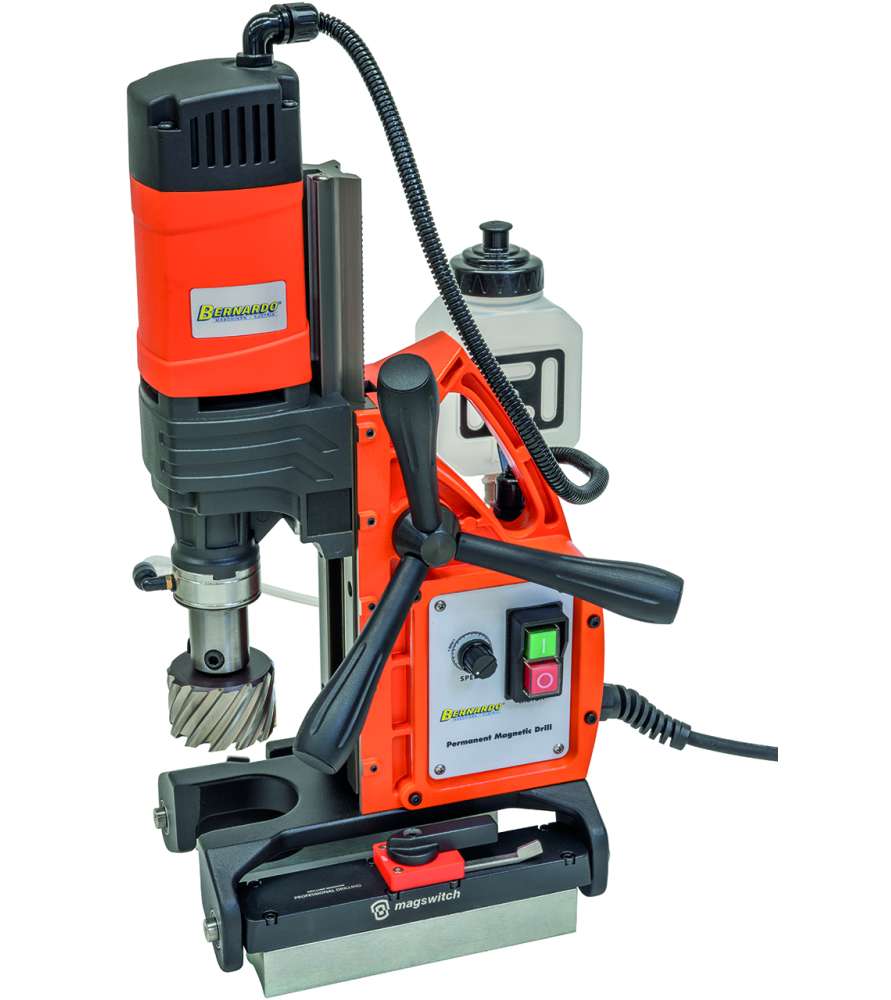

Magnetic-core drilling machine Bernardo MD5050P with dual flexible magnets

This magnetic-core drilling machine Bernardo MD5050P is designed for precision work in steel construction, automotive engineering, and mechanical engineering. Equipped with two powerful flexible magnets, it ensures a secure hold even on complex surfaces such as pipes and profiles.

With its 1700 W motor, variable speed (100–780 rpm), and automatic internal lubrication system, it delivers high performance and precision.

Advantages of the magnetic-core drilling machine Bernardo MD5050P

• Variable speed (100–780 rpm)

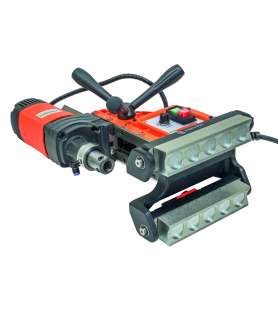

• Two powerful flexible magnets
• Automatic internal cooling system
• Ergonomic design with practical handle
• High magnetic holding force (16,500 N)
• Ideal for steel construction, automotive and mechanical engineering

Delivery contents

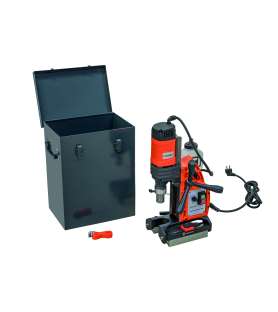

• Metal carrying case
• Coolant container
• Tool holder with automatic internal cooling
• Safety belt
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD5050P

• Max annular cutter : Ø 50 mm
• Max drilling depth : 50 mm
• Max twist drill : Ø 16 mm
• Stroke : 160 mm
• Speed : 100 – 780 rpm
• Weldon shank : 19 mm
• Spindle to base distance : 165 mm
• Magnetic force : 16,500 N
• Magnetic base (2 pcs) : 85 × 40 × 50 mm
• Motor power : 1700 W
• Voltage : 230 V
• Dimensions : 250 × 290 × 530 mm
• Weight approx. : 12.5 kg
• Stroke extendable up to 110 mm
