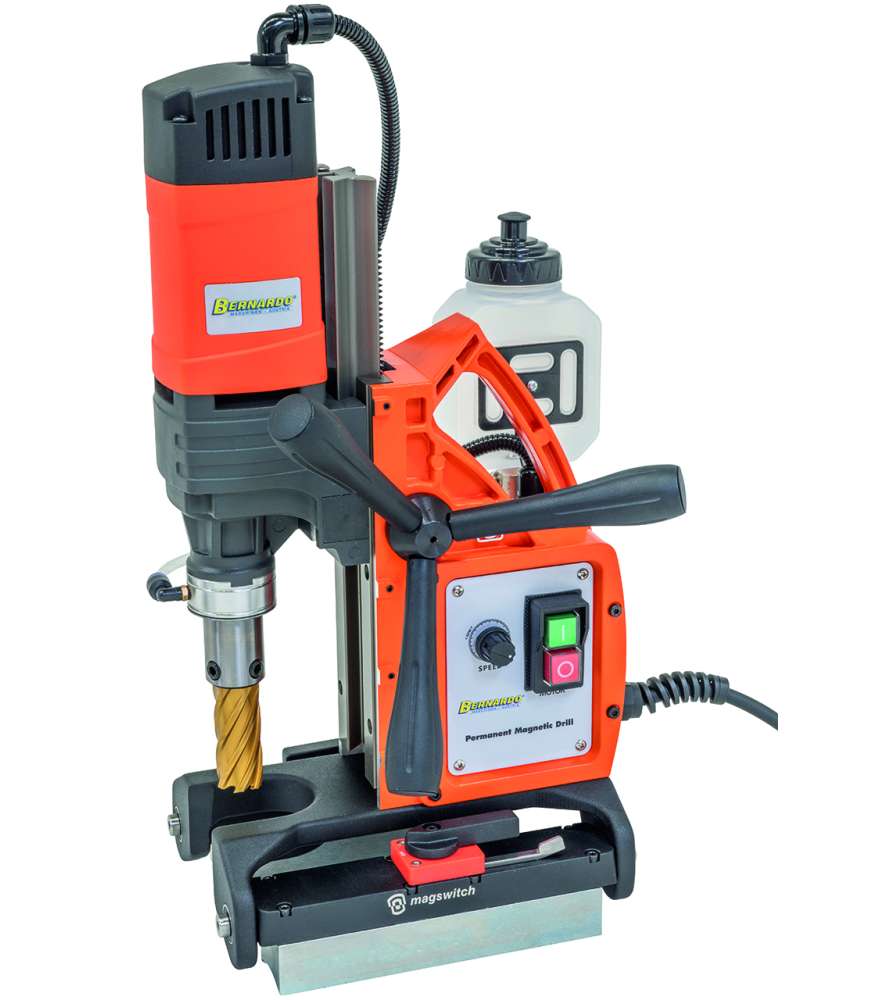

Magnetic-core drilling machine Bernardo MD3550P - Magnetic drill with flexible magnets

This magnetic-core drilling machine Bernardo MD3550P is designed for precision work in steel construction, automotive industry and mechanical engineering. Equipped with two powerful flexible magnets, it ensures secure positioning even on pipes and profiles.

Advantages of the magnetic-core drilling machine Bernardo MD3550P

• Variable speed (100–830 rpm) for optimal adjustment depending on the material

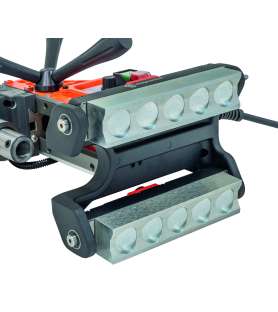

• Two powerful flexible magnets for secure positioning on pipes and profiles

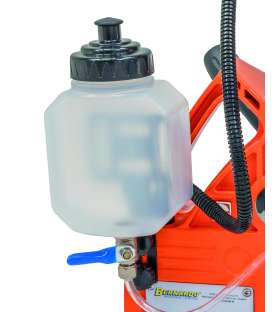

• Automatic internal lubrication system delivering coolant directly to the cutting tool
• Ergonomic design with practical handle for comfortable operation
• High magnetic holding force (16,000 N) for safe working conditions
• Ideal for :
  • steel construction
  • vehicle manufacturing
  • mechanical engineering

Delivery contents

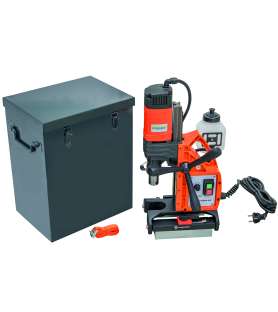

• Metal carrying case
• Coolant container
• Tool holder with automatic internal cooling
• Safety belt
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD3550P

• Max annular cutter diameter : 35 mm
• Max drilling depth : 50 mm
• Max twist drill diameter : 16 mm
• Stroke : 150 mm
• Variable speed : 100 – 830 rpm
• Weldon shank : 19 mm
• Max spindle to base distance : 160 mm
• Magnetic holding force : 16,000 N
• Magnetic base (2 pcs) : 85 × 40 × 50 mm
• Motor power : 1600 W
• Voltage : 230 V
• Machine dimensions : 250 × 290 × 520 mm
• Weight approx. : 12.5 kg
• Stroke extendable up to 110 mm
