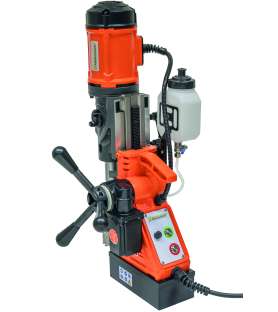

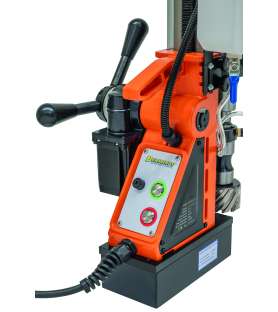

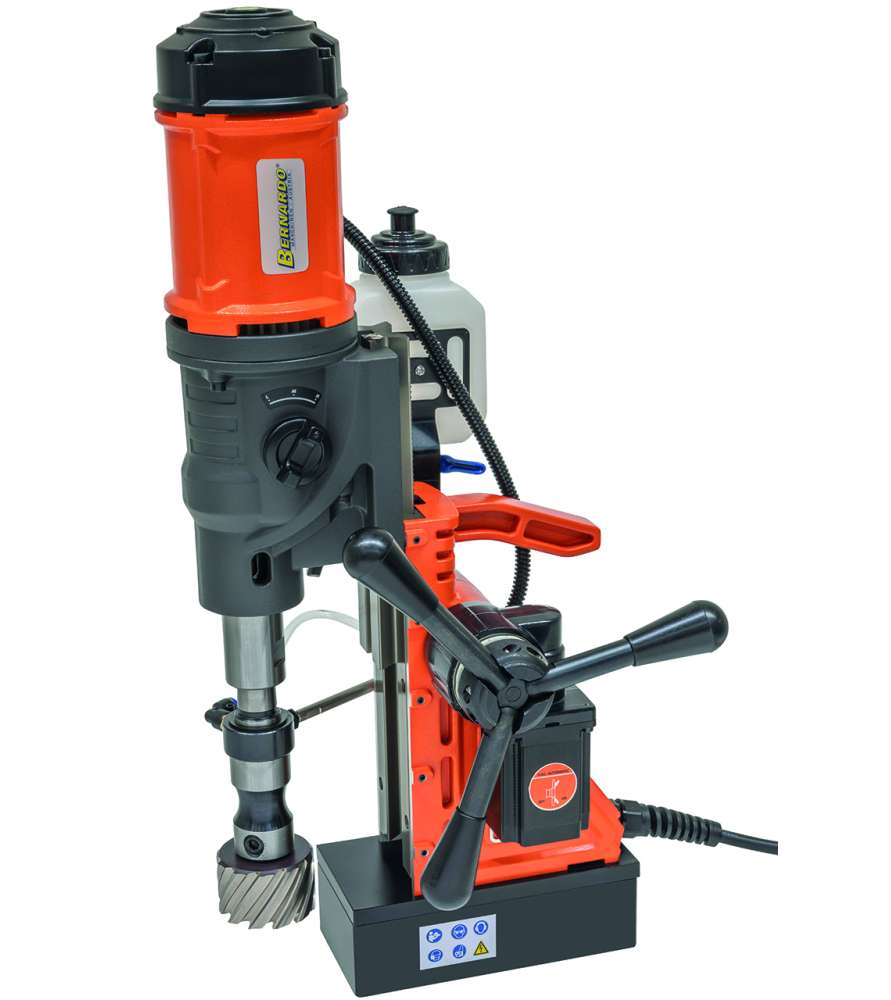

Bernardo MD8050PF Magnetic Drill – Heavy-duty automatic feed magnetic drilling machine

The Bernardo MD8050PF magnetic drill is a high-end professional magnetic drilling machine designed for heavy-duty steel applications. With its powerful 2690 W motor and magnetic holding force of 17,600 N, it ensures maximum performance and safety.

Advantages of the magnetic-core drilling machine Bernardo MD8050PF

• 3-speed gearbox (165 / 350 / 750 rpm)
• Fully automatic feed system with automatic adjustment
• High magnetic holding force (17,600 N)
• Automatic internal cooling system
• Reduced feed force with annular cutters
• MT2 spindle + 19 mm Weldon holder
• Heavy-duty construction
• Safety belt included

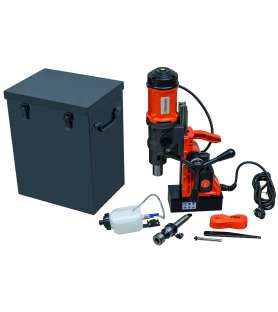

Delivery contents

• Metal carrying case
• Coolant tank
• Spirit level
• Automatic feed tool holder with internal cooling
• MT2 / Weldon 19 mm holder
• Safety belt
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD8050PF

• Max annular cutter Ø : 80 mm
• Max drilling depth : 50 mm
• Max twist drill : Ø 23 mm
• Stroke : 147 mm
• Speed : 165 / 350 / 750 rpm
• Spindle : MT2
• Weldon holder : 19 mm
• Spindle to base:  135 mm
• Magnetic force : 17,600 N
• Base : 185 × 90 × 50 mm
• Motor : 2690 W
• Voltage : 230 V
• Dimensions : 240 × 320 × 530 mm
• Weight approx. : 18 kg
