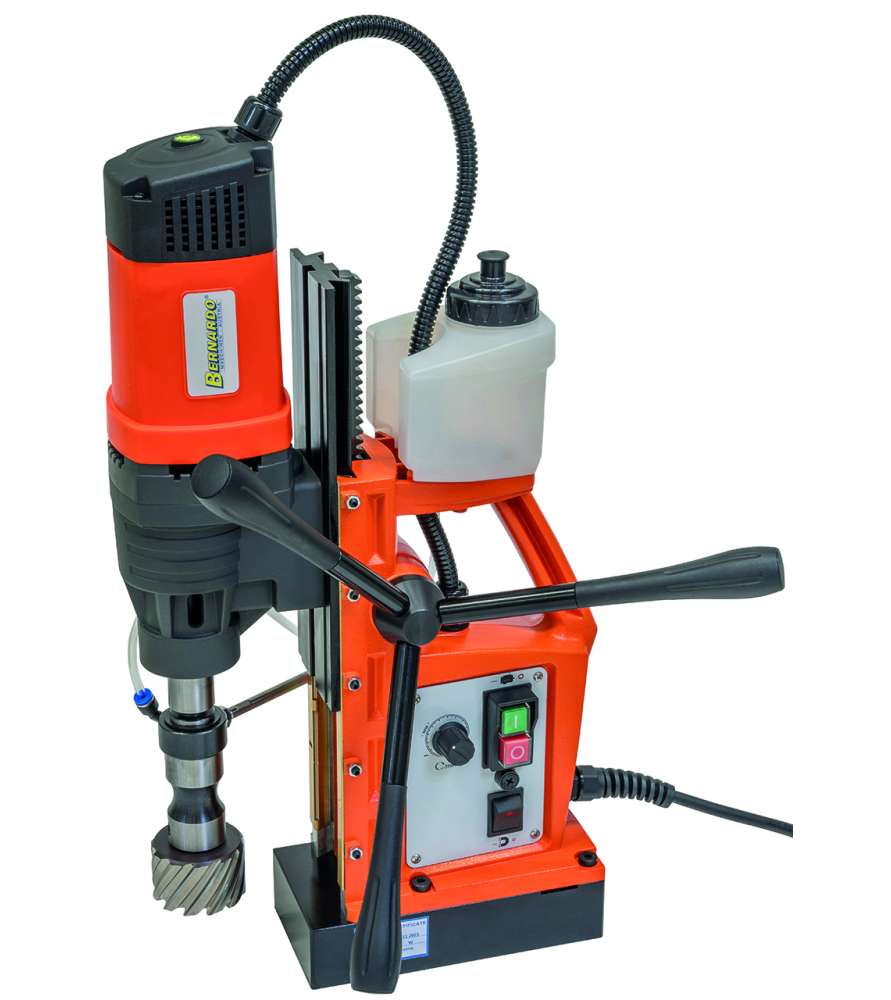

Bernardo MD6050VD Magnetic Drill – Variable speed core drilling machine with MT2 spindle

The Bernardo MD6050VD magnetic drill is a magnetic drilling machine designed for precise drilling in steel and metal structures. Equipped with a powerful 1890 W motor and a magnetic holding force of 16,000 N, it ensures maximum stability and safety during demanding operations.

Its variable speed (100–440 rpm) allows optimal adjustment for various applications such as core drilling, tapping, reaming and countersinking. Thanks to its MT2 spindle (Morse Taper 2), this magnetic drill offers excellent versatility and compatibility with a wide range of tools (twist drills, reamers, tapping tools, hole saws, etc.).

Advantages of the magnetic-core drilling machine Bernardo MD6050VD

• Variable speed (100–440 rpm) for optimal cutting performance
• MT2 spindle (Morse Taper 2) for versatile tool compatibility

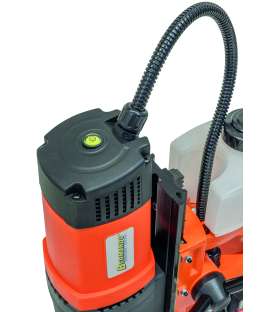

• Integrated spirit level for precise alignment
• Automatic internal lubrication system delivering coolant directly to the cutting tool
• High magnetic holding force (16,000 N) for safe and stable operation
• Robust construction with high-quality components for long service life
• Ideal for applications such as :
  • steel construction
  • mechanical engineering
  • automotive manufacturing
  • industrial maintenance

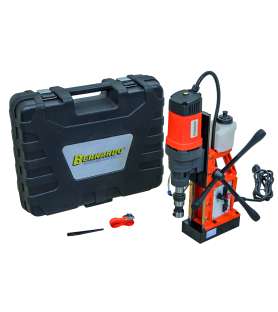

Delivery contents

The Bernardo MD6050VD magnetic drill is supplied with :

• Plastic carrying case
• Coolant container
• Spirit level
• Tool holder with internal cooling MT2 / Weldon 19 mm
• Safety belt
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD6050VD

• Max annular cutter diameter : 60 mm
• Max drilling depth : 50 mm
• Max twist drill diameter : 23 mm
• Stroke : 180 mm
• Variable speed : 100 – 440 rpm
• Spindle : MT2
• Weldon tool holder : 19 mm
• Max spindle to base distance : 220 mm
• Max Weldon holder to base distance : 125 mm
• Magnetic holding force : 16,000 N

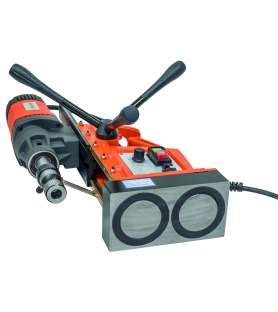

• Magnetic base dimensions : 202 × 105 × 45 mm
• Motor power : 1890 W
• Voltage : 230 V
• Machine dimensions : 200 × 320 × 500 mm
• Weight approx. : 17 kg
