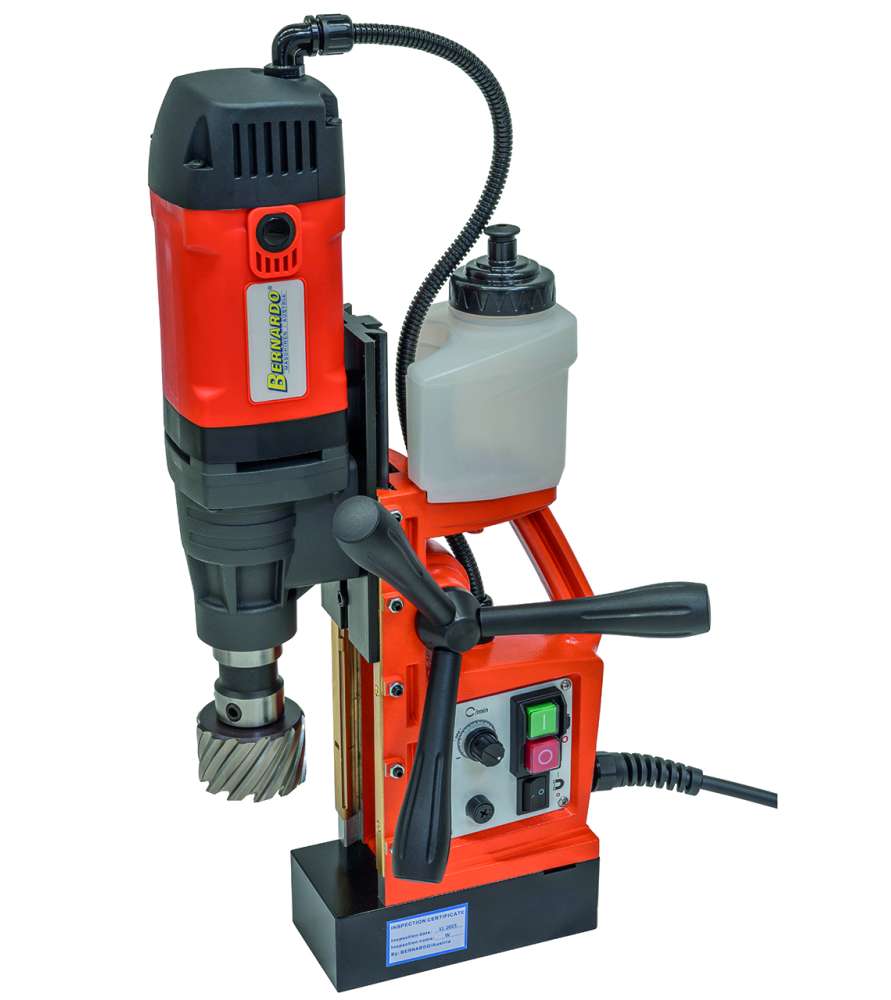

Bernardo MD5050VD Magnetic Drill – Professional variable speed core drilling machine

The Bernardo MD5050VD magnetic drill is a magnetic drilling machine designed for precise drilling in steel. With its 1700 W motor and magnetic holding force of 15,600 N, it ensures stability and safety.

Advantages of the magnetic-core drilling machine Bernardo MD5050VD

• Variable speed (100–810 rpm)
• High magnetic holding force (15,600 N)

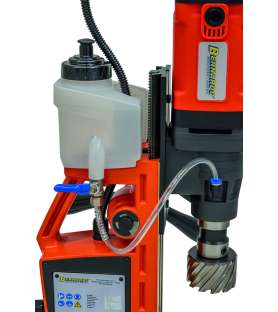

• Automatic internal lubrication system
• Reduced feed force with annular cutters
• 19 mm Weldon tool holder
• Robust construction
• Safety chain included

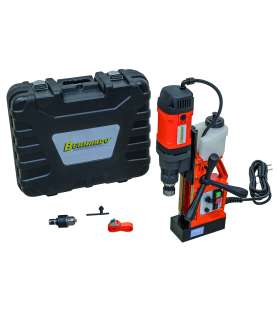

Delivery contents

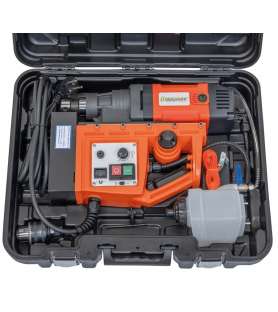

• Plastic carrying case
• Coolant container
• Adapter 1/2"-20 UNF / Weldon 19 mm
• Keyed drill chuck 1.5 – 13 mm
• Safety belt
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD5050VD

• Max annular cutter : Ø 50 mm
• Max drilling depth : 50 mm
• Max twist drill : Ø 13 mm
• Stroke : 155 mm
• Speed : 100 – 810 rpm
• Weldon holder : 19 mm
• Spindle to base : 170 mm
• Magnetic force : 15,600 N
• Base : 165 × 80 × 50 mm
• Motor : 1700 W
• Voltage : 230 V
• Dimensions : 150 × 280 × 430 mm
• Weight approx. : 11.2 kg
