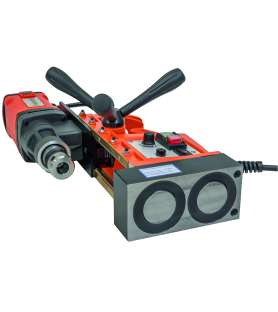

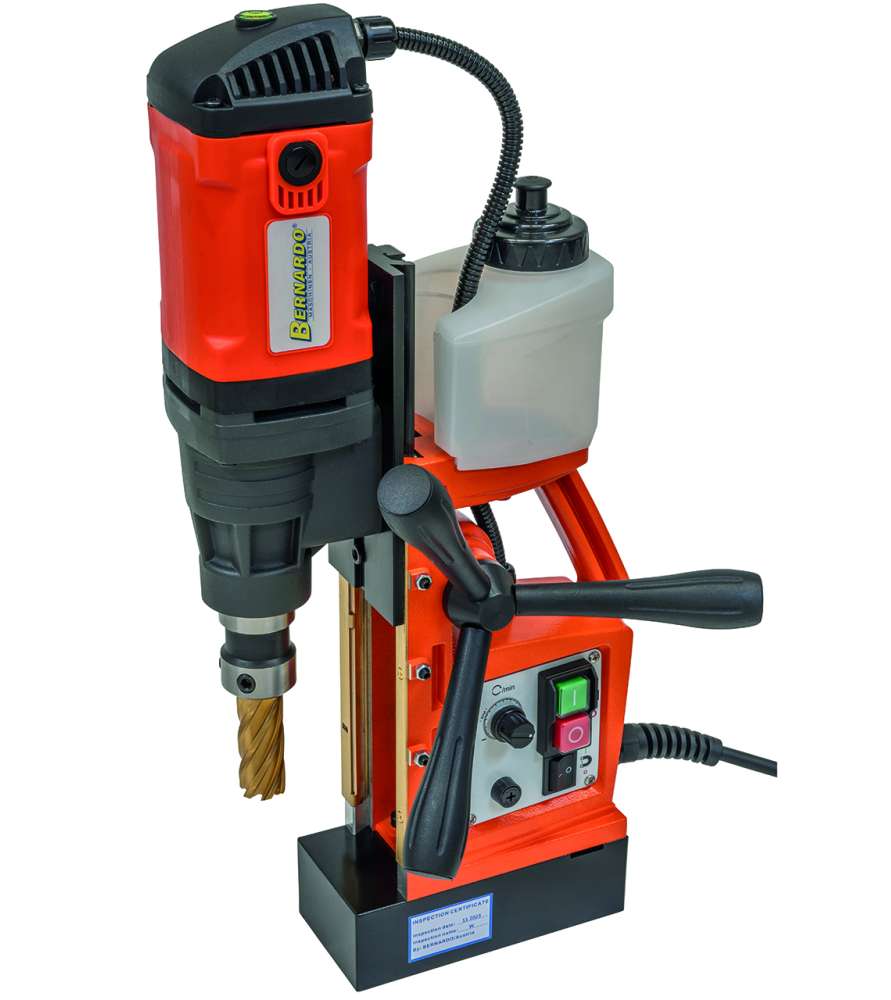

Bernardo MD3550VD Magnetic Drill – Professional variable speed core drilling machine

The Bernardo MD3550VD magnetic drill is a professional magnetic drilling machine designed for precise drilling in steel and metal structures. Equipped with a powerful 1550 W motor and a magnetic holding force of 14,800 N, it ensures excellent stability and safe operation.

Its variable speed control (100–830 rpm) allows optimal adjustment for various applications such as core drilling, drilling, reaming and deburring.

Advantages of the magnetic-core drilling machine Bernardo MD3550VD

• Variable speed (100–830 rpm) for optimal cutting performance

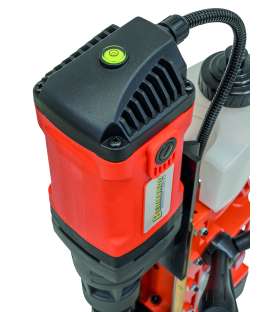

• Integrated spherical spirit level for precise alignment
• High magnetic holding force (14,800 N) for safe operation
• Automatic internal lubrication system delivering coolant directly to the cutting tool
• Reduced feed force required with annular cutters compared to twist drills
• Robust construction with high-quality components for long service life
• Safety chain included for vertical or overhead applications

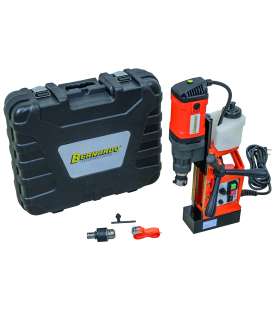

Delivery contents

• Plastic carrying case
• Coolant container
• Spherical spirit level
• Adapter for drill chuck 1/2"-20 UNF / Weldon 19 mm
• Keyed drill chuck 1.5 – 13 mm
• Safety belt
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD3550VD

• Max annular cutter diameter : 35 mm
• Max drilling depth : 50 mm
• Max twist drill diameter : 13 mm
• Stroke : 155 mm
• Variable speed : 100 – 830 rpm
• Weldon shank holder : 19 mm
• Spindle to base distance : 160 mm
• Magnetic holding force : 14,800 N
• Magnetic base : 165 × 80 × 50 mm
• Motor power : 1550 W
• Voltage : 230 V
• Machine dimensions : 150 × 280 × 430 mm
• Weight approx. : 11 kg
