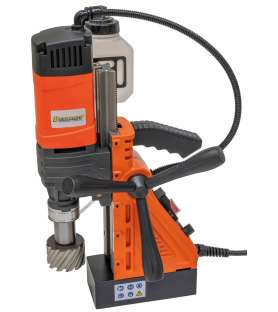

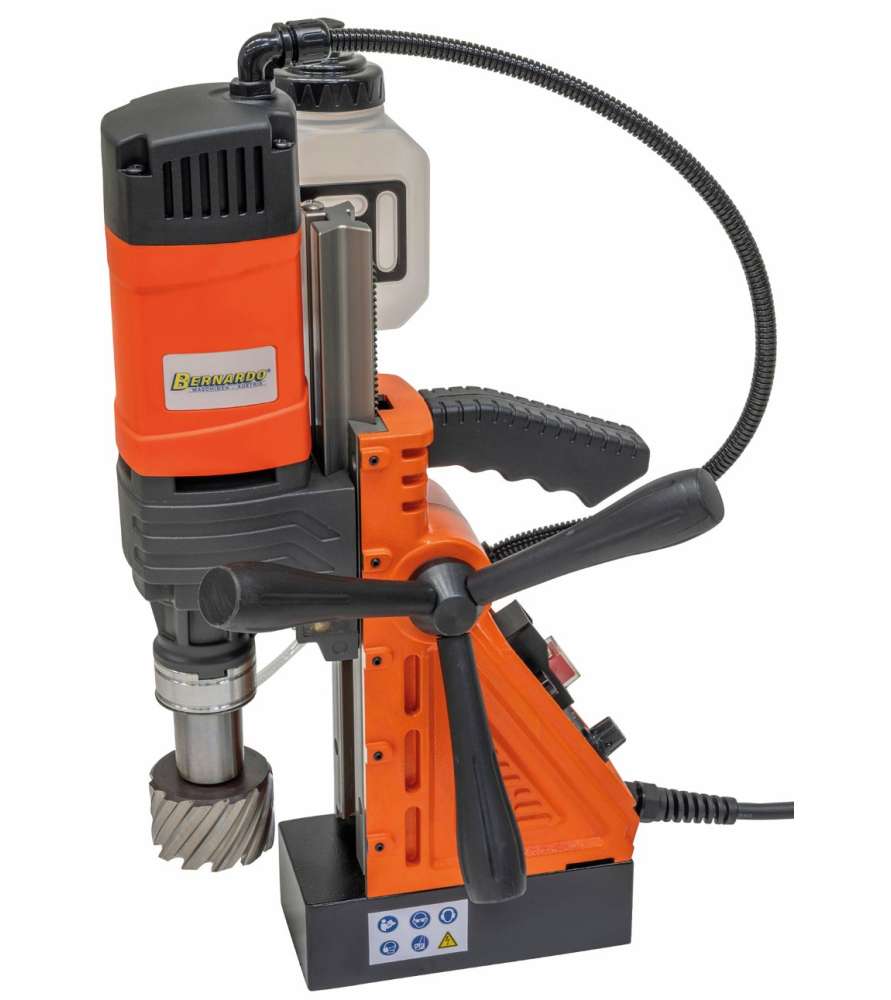

Bernardo MD5050V-eco Magnetic Drill – Powerful and versatile core drilling machine

The Bernardo MD5050V-eco magnetic drill is a professional magnetic drilling machine designed for precise drilling in steel and metal structures. With its 1650 W motor and magnetic holding force of 16,500 N, it ensures maximum stability and safety.

Its variable speed (100–780 rpm) and continuously adjustable drilling head height provide excellent flexibility, especially for long drilling tools.

Advantages of magnetic-core drilling machine Bernardo MD5050V-eco

• Stable drill guide for precise and consistent results
• Continuously adjustable drilling head height
• Variable speed (100–780 rpm) for different materials
• High magnetic holding force (16,500 N)
• 19 mm Weldon tool holder
• Robust construction with high-quality components
• Safety belt included

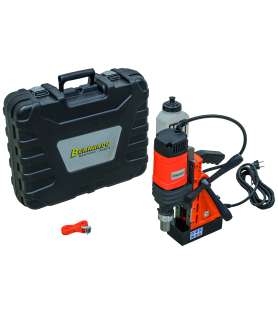

Delivery contents

• Plastic carrying case
• Coolant tank
• Tool holder with automatic internal cooling
• Safety belt
• Service tools
• User manual

Technical specifications of magnetic-core drilling machine Bernardo MD5050V-eco

• Max annular cutter diameter : 50 mm
• Max drilling depth : 50 mm
• Max twist drill diameter : 16 mm
• Stroke : 170 mm
• No-load speed : 100–780 rpm
• Weldon shank holder : 19 mm
• Spindle to base distance : 145 mm
• Magnetic holding force : 16,500 N

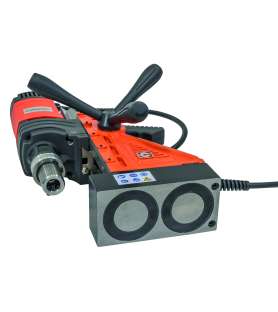

• Magnetic base : 165 × 80 × 50 mm
• Motor power : 1650 W
• Voltage : 230 V
• Machine dimensions : 280 × 320 × 500 mm
• Weight approx. : 12 kg
• Stroke extendable up to 110 mm
