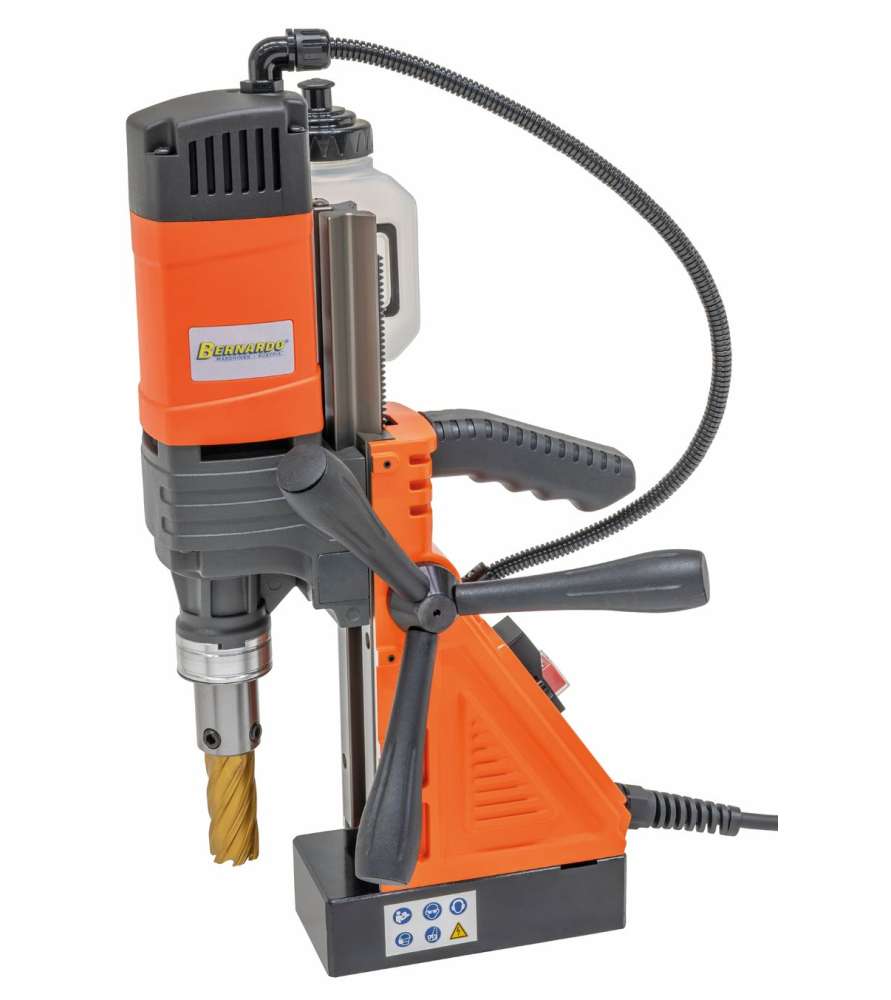

Magnetic-core drilling machine Bernardo MD3550eco – Compact professional core drilling machine

The Bernardo MD3550eco magnetic drill is a professional magnetic drilling machine designed for precise drilling in steel and metal structures. With its 1600 W motor and magnetic holding force of 16,000 N, it ensures excellent stability and safe operation.

The continuously adjustable drilling head height allows the use of long drilling tools and provides great flexibility for various applications.

Advantages of magnetic-core drilling machine Bernardo MD3550eco

• Continuously adjustable drilling head height
• High magnetic holding force (16,000 N) for safe operation
• Ergonomic one-hand operation
• Stable drill guide for precise drilling results

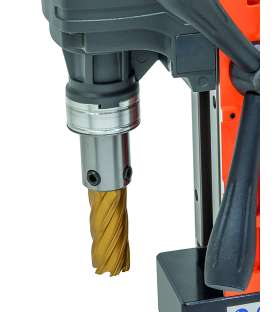

• 19 mm Weldon tool holder for standard annular cutters
• Robust construction with high-quality components
• Safety belt included for vertical or overhead drilling

Delivery contents

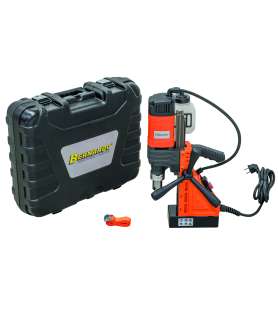

• Plastic carrying case

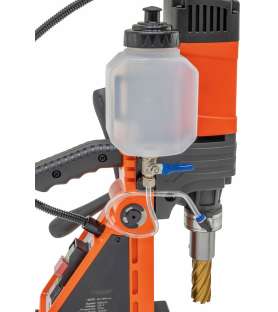

• Coolant tank
• Tool holder with automatic internal cooling
• Safety belt
• Service tools
• User manual

Technical specifications of magnetic-core drilling machine Bernardo MD3550eco

• Max annular cutter diameter : 35 mm
• Max drilling depth : 50 mm
• Max twist drill diameter : 13 mm
• Stroke : 145 mm
• No-load speed : 830 rpm
• Weldon shank holder : 19 mm
• Spindle to base distance : 125 mm
• Magnetic holding force : 16,000 N
• Magnetic base : 165 × 80 × 50 mm
• Motor power : 1600 W
• Voltage : 230 V
• Machine dimensions : 260 × 320 × 500 mm
• Weight approx. : 11 kg
