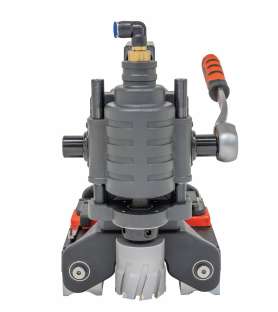

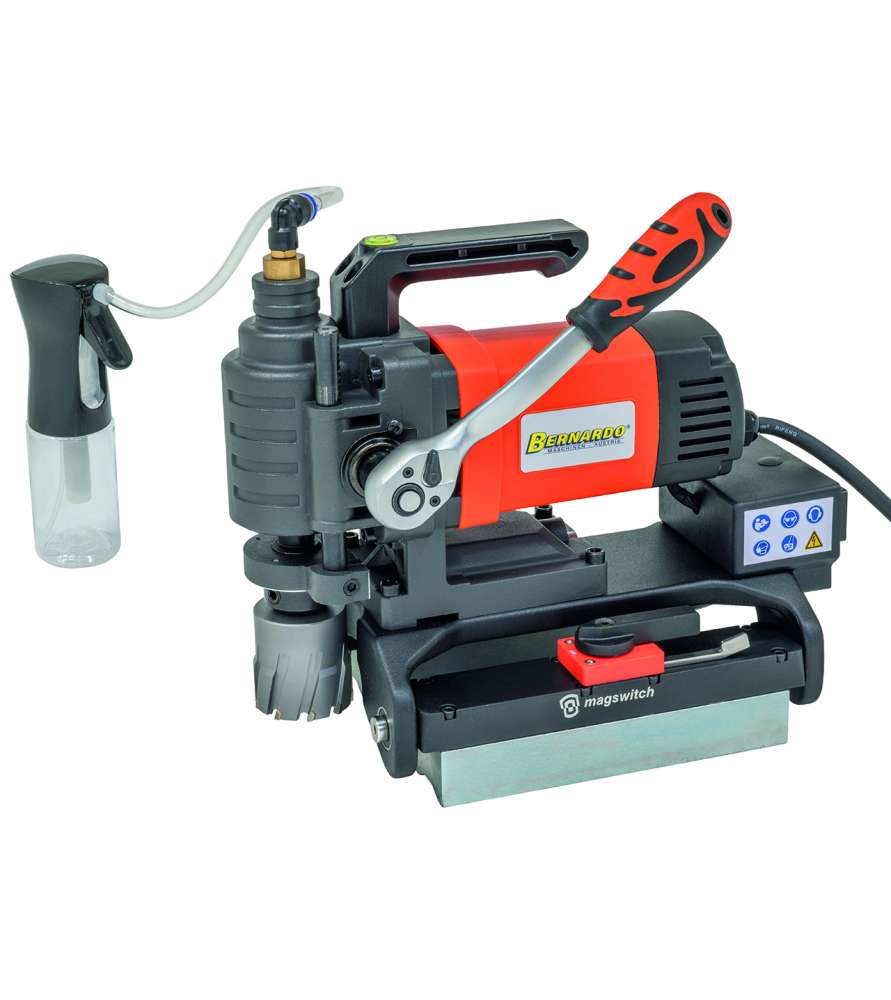

Magnetic-core drilling machine Bernardo MD5568PL – Professional core drilling machine with flexible magnets

The Bernardo MD5568PL magnetic drill is a professional magnetic drilling machine designed for precise drilling in steel and metal structures. With its powerful 1900 W motor and magnetic holding force of 15,500 N, it ensures maximum stability and safe operation.

This Bernardo magnetic drill features two flexible magnets, allowing better adaptation to metal surfaces and providing optimal fixation during drilling. The continuously adjustable drilling head height offers excellent flexibility for various applications.

Advantages of the magnetic-core drilling machine Bernardo MD5568PL

• Continuously adjustable drilling head height

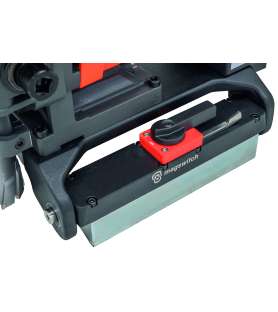

• Two flexible magnets for improved stability
• High magnetic holding force (15,500 N) for safe drilling
• Reversible feed lever, mountable on both sides
• Ergonomic one-hand operation
• 19 mm Weldon tool holder for standard annular cutters
• Robust construction with high-quality components
• Safety belt included for vertical or overhead drilling

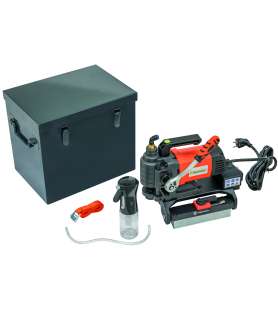

Delivery contents

• Metal carrying case
• Coolant tank
• Spirit level
• Transport handle
• Reversible ratchet
• Lubrication pump
• Flexible magnets
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD5568PL

• Max annular cutter diameter : 55 mm
• Max drilling depth : 68 mm
• Stroke : 75 mm
• No-load speed : 750 rpm
• Weldon shank holder : 19 mm
• Spindle to base distance : 95 mm
• Magnetic holding force : 15,500 N
• Magnetic base (2 magnets) : 185 × 40 × 50 mm
• Motor power : 1900 W
• Voltage : 230 V
• Machine dimensions : 170 × 330 × 290 mm
• Weight approx. : 11 kg
