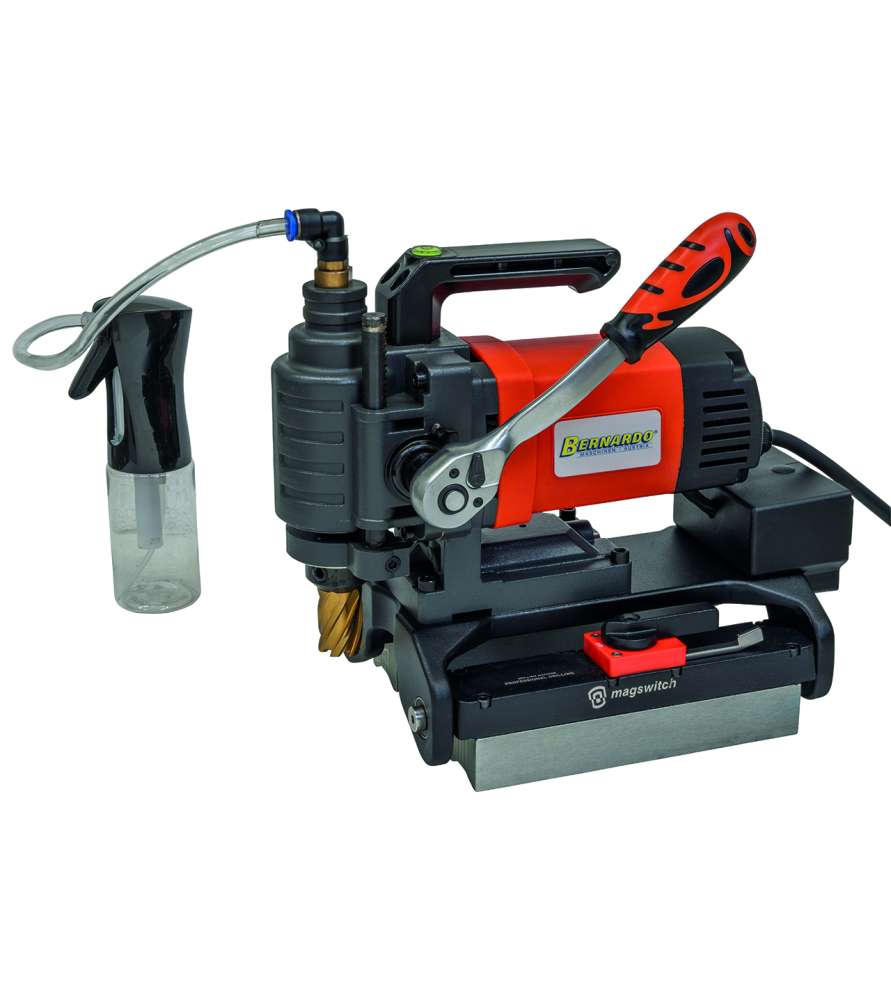

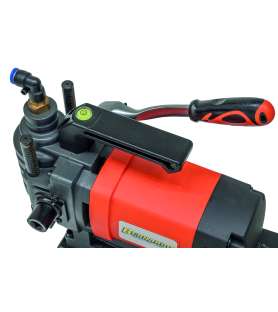

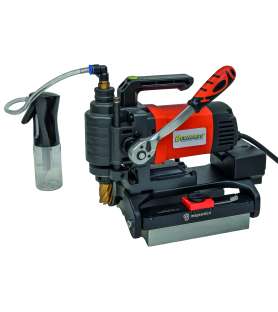

Bernardo MD3850PL magnetic Drill – Professional core drilling machine with flexible magnets

The Bernardo MD3850PL magnetic drill is a professional magnetic drilling machine designed for precise drilling in steel and metal structures. With its 1650 W motor and magnetic holding force of 14,500 N, it ensures excellent stability and safe operation.

This Bernardo magnetic drill features two flexible magnets, allowing better adaptation to surfaces and increased drilling stability. The continuously adjustable drilling head height provides maximum flexibility during operation.

Advantages of the magnetic-core drilling machine Bernardo MD3850PL

• Continuously adjustable drilling head height

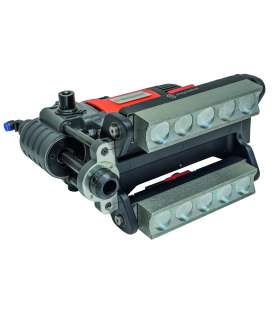

• Two flexible magnets for improved stability on metal surfaces
• High magnetic holding force (14,500 N) for safe operation
• Reversible feed lever, mountable on either side
• Ergonomic one-hand operation with clearly arranged controls
• Robust construction with high-quality components for long service life
• 19 mm Weldon tool holder compatible with standard annular cutters
• Safety belt included for vertical or overhead drilling

Delivery contents

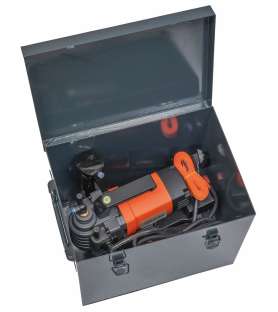

• Metal carrying case
• Coolant tank
• Spirit level
• Transport handle
• Reversible ratchet
• Lubrication pump
• Flexible magnets
• Service tools
• User manual

Technical specifications of the magnetic-core drilling machine Bernardo MD3850PL

• Max annular cutter diameter : 38 mm
• Max drilling depth : 50 mm
• Stroke : 75 mm
• No-load speed : 850 rpm
• Weldon shank holder : 19 mm
• Spindle to base distance : 95 mm
• Magnetic holding force : 14,500 N
• Magnetic base (2 magnets) : 185 × 40 × 50 mm
• Motor power : 1650 W
• Voltage : 230 V
• Machine dimensions : 170 × 330 × 290 mm
• Weight approx. : 11 kg
