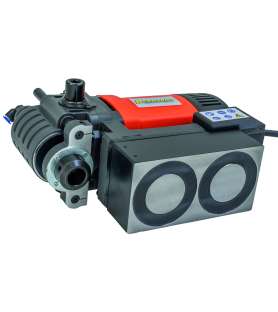

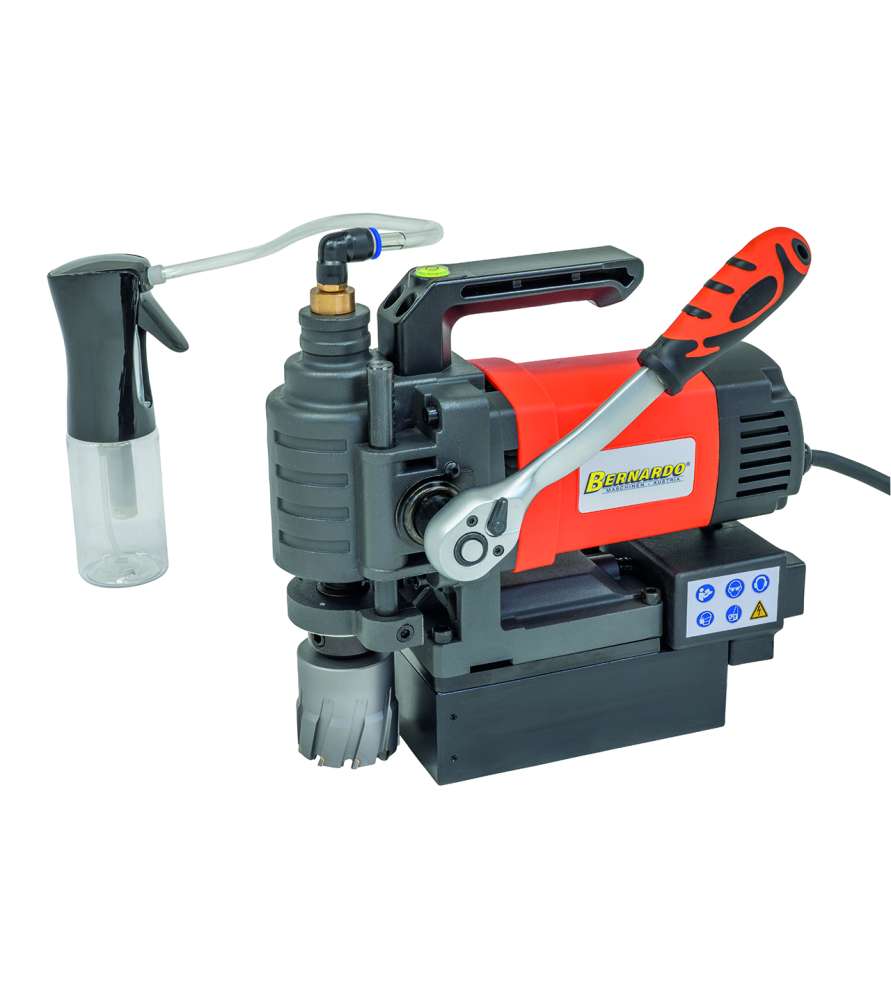

Bernardo MD5568 Magnetic-core drilling machine – Powerful core drilling machine for steel

The Bernardo MD5568 magnetic drill is a professional magnetic drilling machine designed for heavy-duty drilling in steel and metal structures. Equipped with a powerful 1900 W motor and a magnetic holding force of 15,500 N, it ensures maximum stability and precision during drilling operations.

Its compact and robust design makes it ideal for workshops and construction sites, even in confined spaces.

Advantages of the magnetic-core drilling machine Bernardo MD5568 :

• Compact and robust construction, ideal for limited spaces
• Portable design for mobile use on construction sites
• High magnetic holding force (15,500 N) for safe operation
• Straight gear transmission designed for continuous use
• Ergonomic one-hand operation thanks to clearly arranged controls
• Reversible ratchet handle, mountable on the left or right side
• Integrated spirit level for precise alignment
• Safety belt included for vertical or overhead drilling

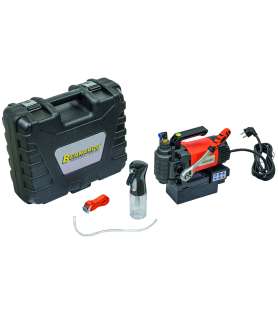

Delivery contents

• Plastic carrying case
• Safety belt
• Spirit level
• Transport handle
• Reversible ratchet handle
• Lubrication pump
• Service tools
• User manual

Technical specifications of Bernardo MD5568 Magnetic-core drilling machine :

• Max core drill diameter : 55 mm
• Max drilling depth : 68 mm
• Stroke : 70 mm
• No-load speed : 750 rpm
• Weldon shank holder : 19 mm
• Spindle to base distance : 75 mm
• Magnetic holding force : 15,500 N
• Magnetic base : 156 × 80 × 50 mm
• Motor power : 1900 W
• Voltage : 230 V
• Machine dimensions : 150 × 300 × 260 mm
• Weight approx. : 10 kg
