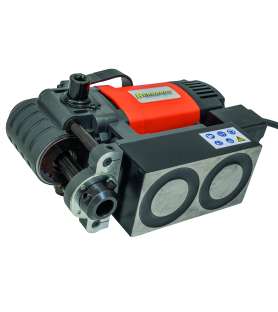

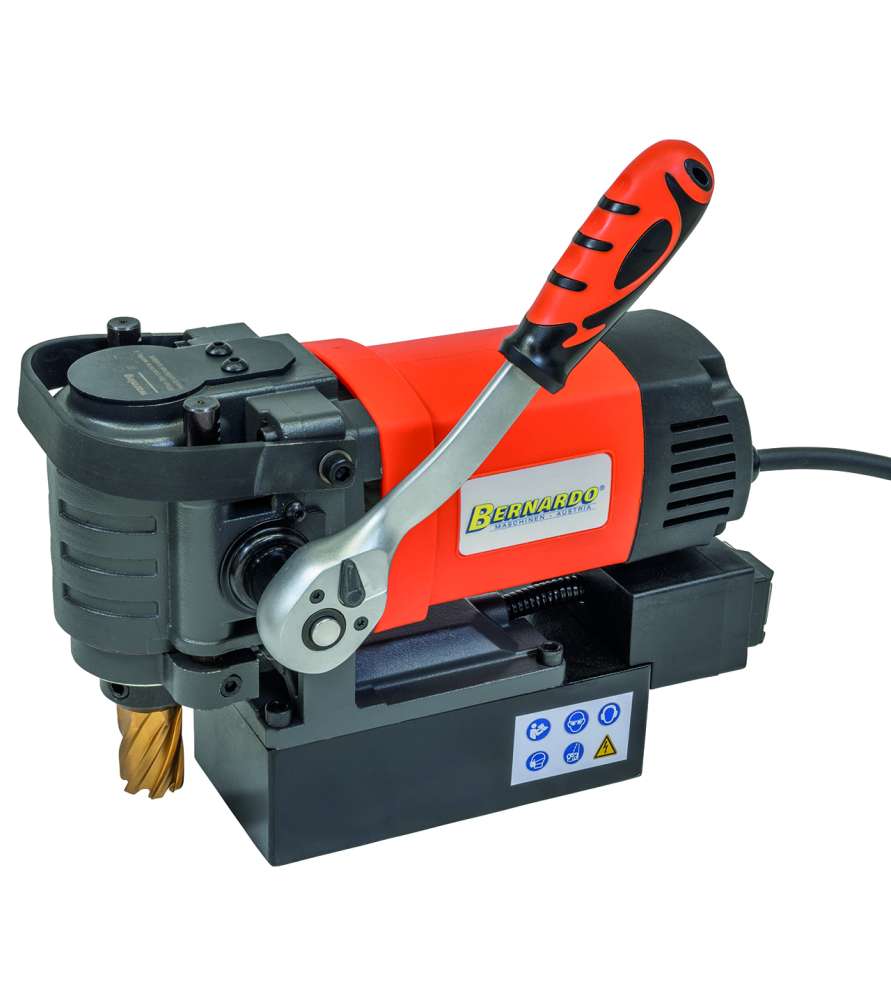

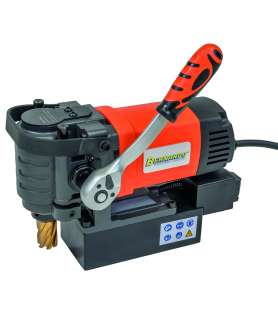

Magnetic-core drilling machine Bernardo MD3845L – Compact and Powerful

The Bernardo MD3845L magnetic pillar drill is a professional magnetic core drill mounted on a precision metal base. Thanks to its 1650 W motor and 14,500 N magnetic force, it ensures optimal stability and safety on structures in use.

Compact and portable, it is easy to use in both studios and workshops, even in confined spaces. This magnetic drill is ideal for professionals in metal construction, industrial mechanics, structural fabrication, and industrial maintenance.

Advantages of Using a Bernardo MD3845L Magnetic Drill

• Compact and lightweight design, ideal for use in confined spaces
• Perfect for mobile use on construction sites or in workshops
• Robust spur gear designed for intensive and continuous use
• High magnetic holding force (14,500 N) for maximum stability during drilling

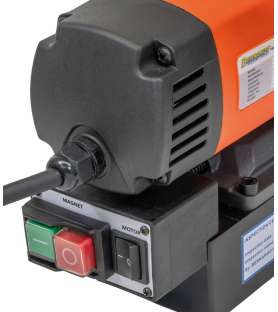

• Ergonomic design with a key advantage in the two-position controls

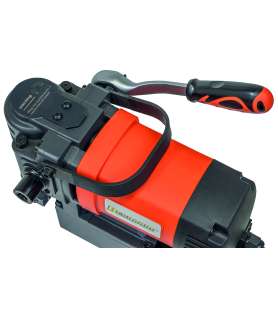

• Reversible ratchet that can be operated on the left or right side of the machine
• Enhanced safety with a included safety belt for vertical or overhead work
• Ideal for applications in :
  • metal construction
  • vehicle construction
  • mechanical engineering
  • industrial maintenance

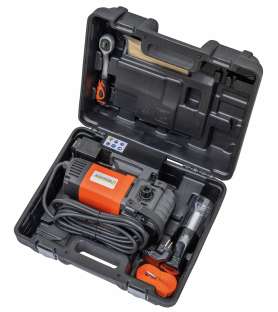

What's Included in the magnetic-core drilling machine Bernardo MD3845L Package

The magnetic-core drilling machine Bernardo MD3845L comes with :

• Sturdy plastic carrying case
• Refrigerator holder
• Reversible ratchet
• Handle
• Safety belt
• Operating tool
• Instructions for use

Technical specifications magnetic-core drilling machine Bernardo MD3845L :

• Max. core drilling diameter: 38 mm
• Max. drilling depth (core drill): 45 mm
• Max. drilling stroke: 50 mm
• No-load speed: 850 rpm
• Weldon shank diameter: 19 mm
• Max. distance between Weldon support and base: 60 mm
• Magnetic force: 14,500 N
• Dimensions of the magnetic base: 156 × 80 × 50 mm
• Motor power: 1,650 W
• Voltage: 230 V
• Machine dimensions: 150 × 280 × 250 mm
• Weight approx.: 10 kg

✅ Have you chosen the Bernardo MD3845L?

The Bernardo MD3845L magnetic drill combines power, precision, and mobility. Its compact design and powerful magnetic base make it an ideal solution for drilling steel on-site or in the workshop, ensuring fast, precise, and safe work.
