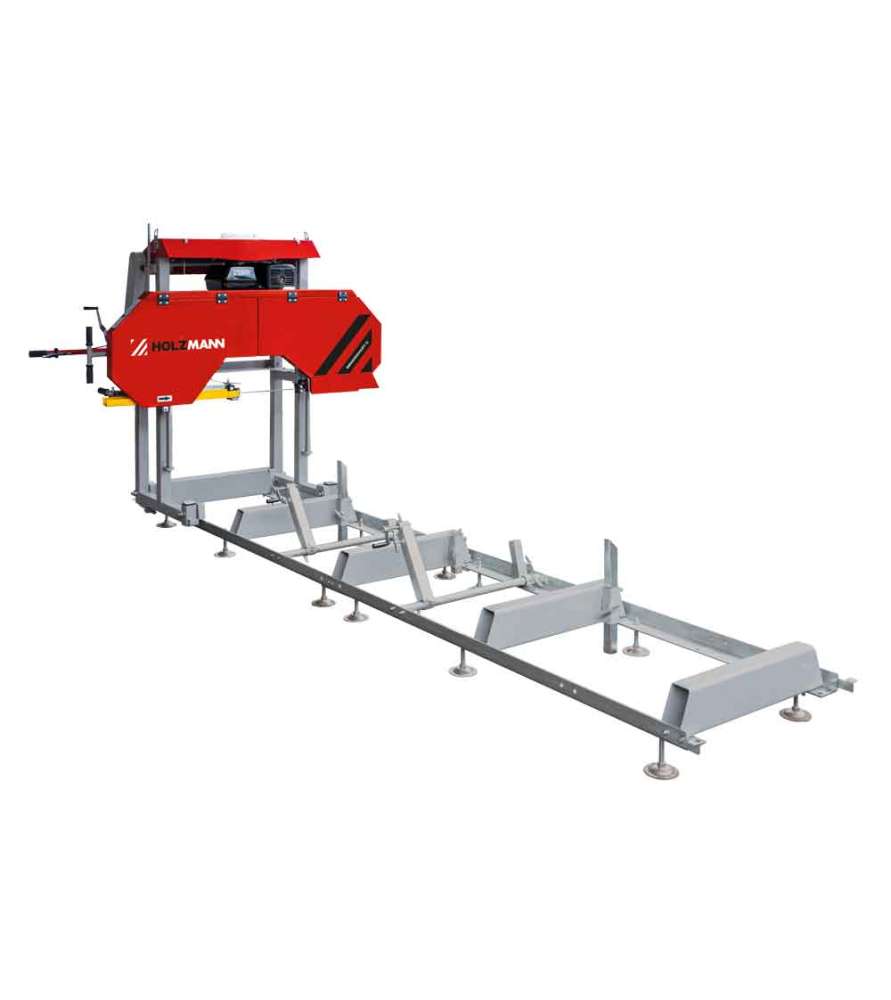

Holzmann BBS550SMART-G Petrol Sawmill – Powerful and Expandable Portable Band Sawmill

The Holzmann BBS550SMART-G is a petrol-powered portable band sawmill designed for accurately and efficiently sawing logs into boards, beams and timber. Robust, reliable and easy to operate, it is an ideal solution for landowners, sawmills, carpenters, timber professionals and anyone looking to process logs directly on site.

Powered by a 13 HP (8.2 kW) G390F petrol engine, this portable sawmill operates independently of the electrical grid, making it suitable for use in forests, construction sites and remote locations. Its heavy-duty frame, large cast iron band wheels and bi-metal bandsaw blade provide excellent stability and consistent cutting performance.

Key features of the Holzmann BBS550SMART-G

• Petrol-powered portable band sawmill for processing logs.
• Suitable for cutting all types of wood using the same bandsaw blade.
• Expandable cutting length with optional rail extension sections.
• Heavy-duty steel frame for excellent stability during operation.
• Large 475 mm cast iron band wheels for precise blade guidance.
• Manual saw head lifting and lowering.
• Eccentric log clamping system for fast and secure log positioning.
• Pre-cut adjustment for accurate first cuts.
• Simple assembly for easy transport and installation.
• Manual feed allows precise control of the cutting speed.

Expandable cutting capacity

The Holzmann BBS550SMART-G is supplied with a maximum cutting length of 3,200 mm.

Its cutting capacity can easily be extended by adding 2-metre extension rail sections, allowing the sawmill to process significantly longer logs whenever required.

This modular design makes the cutting length virtually unlimited, depending on the number of extension sections installed.

Heavy-duty construction

The reinforced frame has been designed to provide excellent rigidity throughout the sawing process.

The 475 mm cast iron band wheels ensure smooth blade operation and reliable tracking while helping to reduce vibration.

The saw head is raised and lowered manually, allowing accurate adjustment of the cutting thickness.

An eccentric log clamping system securely holds the log in position throughout the cutting operation.

Productivity depends on the type of wood being cut, including hardwood, softwood, dry wood and green (fresh) wood.

Technical specifications

• Maximum log diameter: 550 mm
• Maximum cutting width: 530 mm
• Maximum blade lifting height: 540 mm
• Clearance above the bandsaw blade: 105 mm
• Maximum cutting depth: 190 mm
• Maximum cutting length (standard configuration): 3,200 mm
• Minimum cutting length: 1,050 mm
• Extension rail section length: 2 metres
• Maximum cutting capacity: Expandable
• Engine: G390F petrol engine
• Engine power: 8.2 kW (13 HP)
• Engine oil capacity (SAE 15W40): 1.1 litres
• Fuel tank capacity (EN 228 RON 95 petrol): 6.5 litres
• Feed system: Manual
• Band wheel diameter: 475 mm
• Band wheel thickness: 25 mm
• Bi-metal bandsaw blade dimensions: 3658 × 25 × 0.9 mm
• Kerf width: 1.5 – 2.2 mm
• Blade speed: 20 m/s
• Machine dimensions: 4260 × 1780 × 1700 mm
• Packing dimensions: 2170 × 630 × 860 mm
• Net weight: 355 kg
• Gross weight: 407 kg
• Extension rail section weight: 76 kg

Why choose the Holzmann BBS550SMART-G?

The Holzmann BBS550SMART-G is a powerful and reliable portable petrol sawmill designed for users who require a robust, expandable and easy-to-operate machine. Featuring a 13 HP petrol engine, an extendable cutting capacity, a rigid frame and an efficient log clamping system, it is an excellent choice for accurately sawing logs into boards, beams and timber directly on site.
