Reference: HBBS550SMART

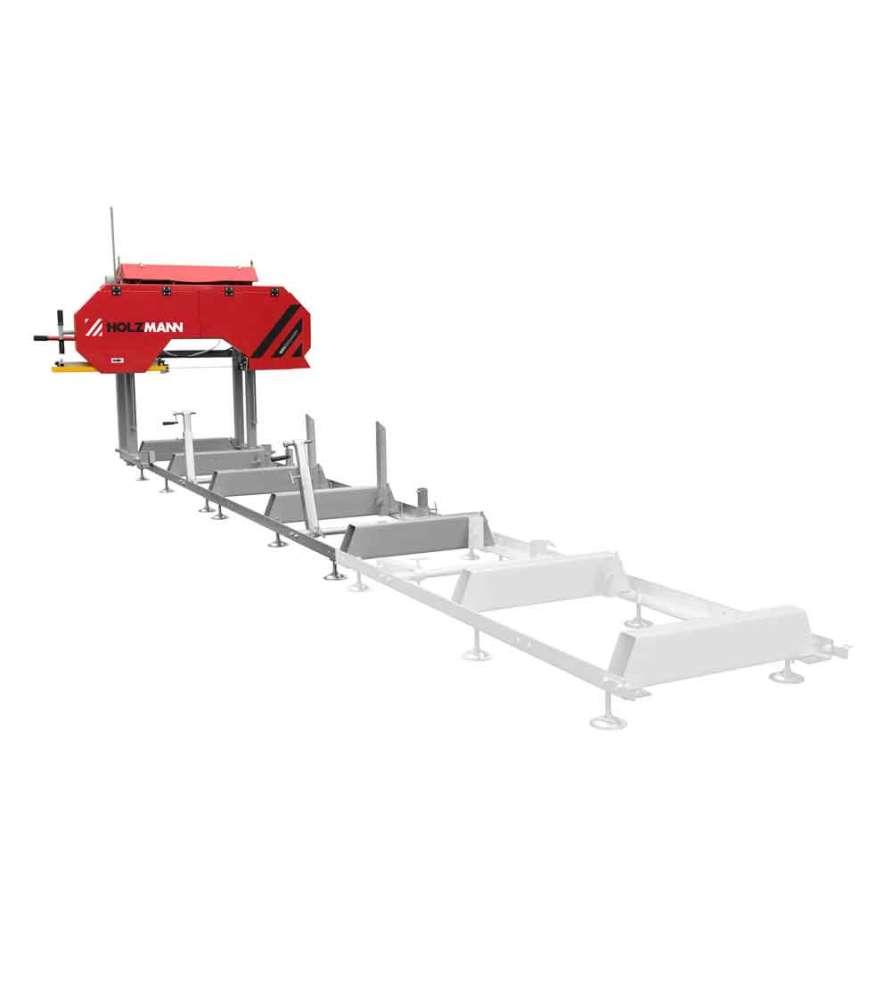

The Holzmann BBS550SMART Log Band Sawmill - 400V is designed exclusively for cutting soft, hard, dry, rough wood with a diameter of up to 550 mm.
.png)
The Holzmann BBS550SMART is a log band sawmill designed for cutting logs into boards, beams and timber with precision. Equipped with a 5.5 kW three-phase electric motor, it provides an efficient solution for users who want to process their own logs.
This band sawmill features a robust, rigid construction, simple operation and low maintenance requirements. Thanks to its modular rail system, the cutting length can be extended by adding additional track sections whenever required.
Three-phase 400 V electric band sawmill.
Expandable cutting length with additional track sections.
Suitable for cutting all types of wood with the same bandsaw blade.
Robust, rigid construction.
Low maintenance requirements.
Easy to operate.
Large cast iron drive wheel.
Precise blade guidance.
Eccentric log clamping system.
Manual height adjustment for cutting thickness.
Manual feed during cutting.
The Holzmann BBS550SMART is designed to grow with your requirements.
The cutting length depends on the number of 2-metre track extension sections installed. Additional extensions can be added whenever longer logs need to be processed.
Its rigid frame provides stability throughout the sawing process.
The 475 mm cast iron drive wheel ensures accurate blade tracking, while the eccentric clamping system securely holds the log in position during cutting.
The manual height adjustment makes it easy to set the desired board thickness before each cut.
Power supply: 400 V / 3 Ph / 50 Hz
Motor power (S1): 5,500 W
Overall dimensions: 4350 × 1600 × 1800 mm
Minimum workpiece length: 1,050 mm
Bandsaw blade dimensions: 3658 × 25 × 0.9 mm
Blade speed: 1,080 m/min
Band wheel diameter: 475 mm
Maximum log diameter: 550 mm
Maximum opening between blade guides: 530 mm
Kerf width: 1.5–2.2 mm
Track section length: 2.0 m
Sound power level: 98 dB(A)
Sound pressure level: 89 dB(A)
Net weight: 335 kg
Gross weight: 387 kg
The Holzmann BBS550SMART is the economical version of the BBS550 range. According to the manufacturer, this model is manufactured in Asia, while the BBS550 is manufactured in Europe.
Holzmann BBS550SMART 400 V log band sawmill with 5.5 kW motor, expandable cutting length, 550 mm log capacity and robust steel construction.
