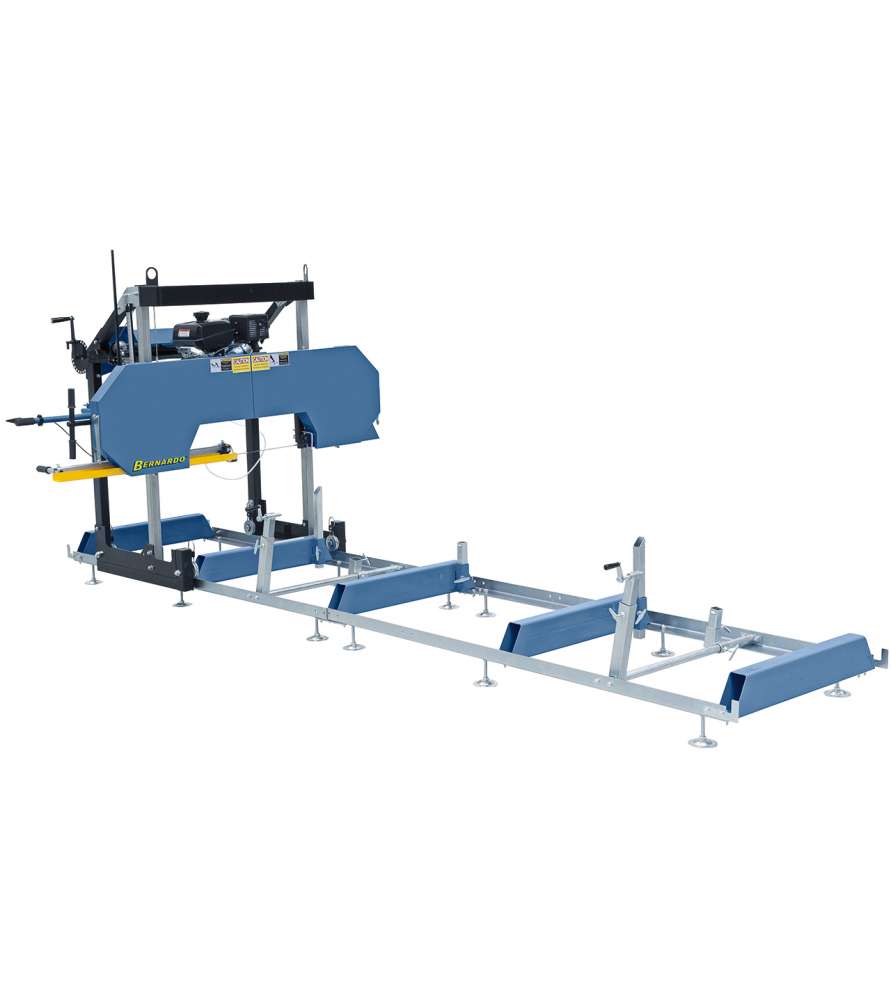

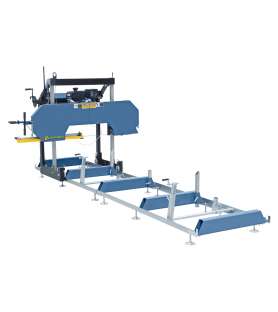

Advantages of the Bernardo BBS780B thermal Log Saw :

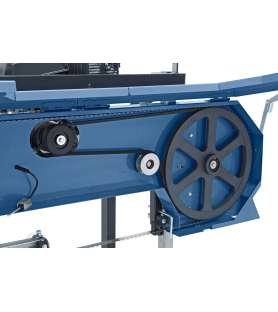

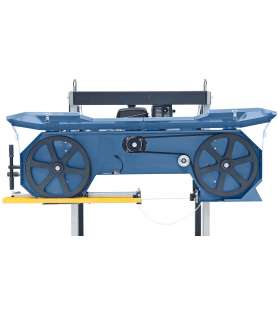

• Dynamically balanced, grey cast drive wheels allow for a smooth run
• Suitable for processing logs into boards, planks and beams

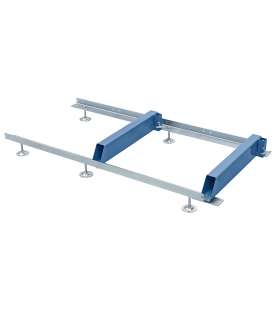

• Bed extensions are optionally available for various cutting lengths
• Suitable for cutting of soft as well as hard timber logs

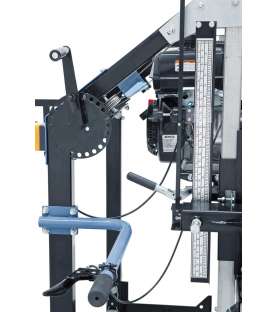

• Manual adjustment of feed and height of saw unit

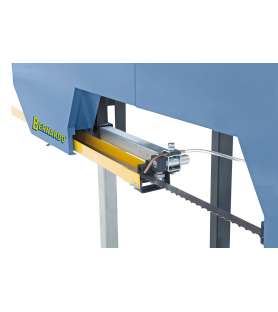

• Comes complete with coolant container and dosage valve for optimal lubrication and cooling of bandsaw blade
• Adjustable fences allow for easy clamping of timber logs
• Saw unit is fixed and guided from both sides

The Bernardo BBS780B thermal Log Saw comes with :

• Bandsaw blade HSS 4010 x 34 x 1,1 mm

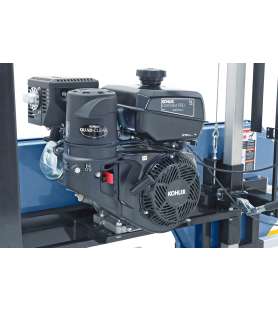

• Gasoline motor Kohler Command Pro CH 440

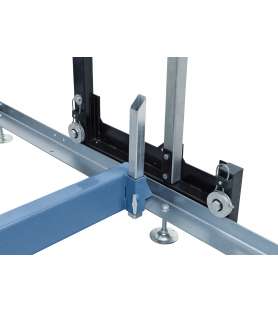

• 2 pcs. log clamping devices
• Coolant tank

Technical specifications of the Bernardo BBS780B thermal Log Saw :

• Max. log diameter : 760 mm
• Max. board width : 710 mm
• Max. cutting height : 590 mm
• Min. cutting height : 45 mm
• Max. cutting depth : 190 mm
• Cutting length basic version : 3650 mm
• Max. cutting length : unlimited
• Min. cutting length : 1150 mm
• Feed : manual
• Diameter of flywheel : 480 mm
• Width of flywheel : 24 mm
• Bandsaw blade : 4010 x 34 x 1,1 mm
• Bandsaw blade speed : 1200 m/min
• Motor power : 10,0 KW (14 HP)
• Machine dimension (W x H x L – basic version) : 2300 x 1900 x 4540 mm
• Weight approx. : 367 kg
