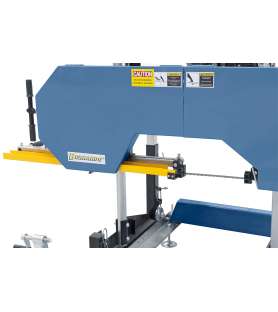

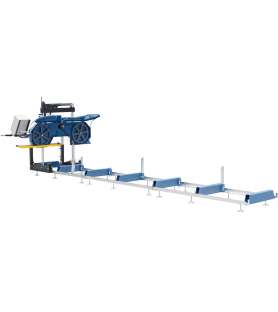

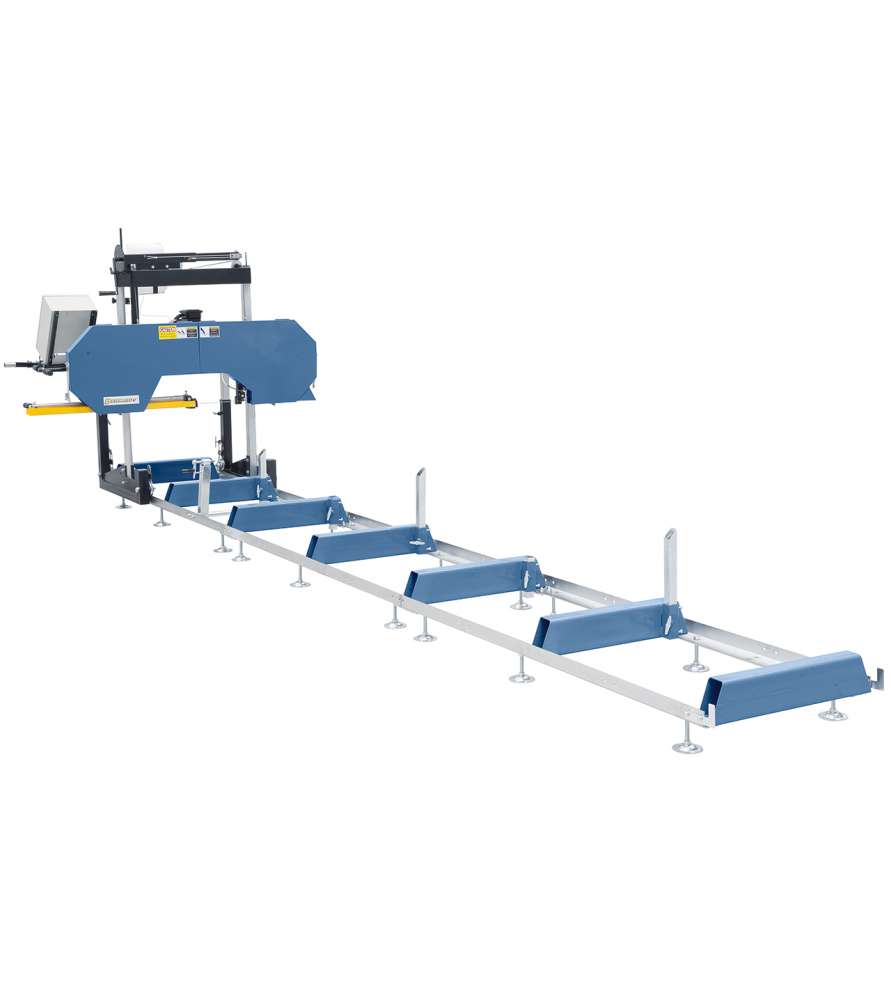

Advantages of the Bernardo BBS650E - 400V log bandsaw :

• Dynamically balanced, grey cast drive wheels allow for a smooth run
• Suitable for processing logs into boards, planks and beams
• Bed extensions are optionally available for various cutting lengths
• Suitable for cutting of soft as well as hard timber logs
• Manual adjustment of feed and height of saw unit
• Comes complete with coolant container and dosage valve for optimal lubrication and cooling of bandsaw blade
• Adjustable fences allow for easy clamping of timber logs
• Saw unit is fixed and guided from both sides

The Bernardo BBS650E - 400V log bandsaw is supplied with :

• Bandsaw blade HSS 3650 x 34 x 1,1 mm

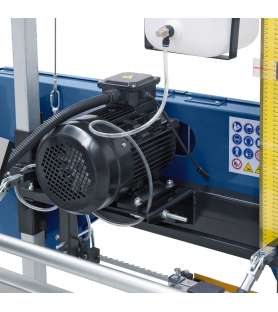

• Electric motor with star delta start-up
• Bed extension for cutting length max. 5,1 m

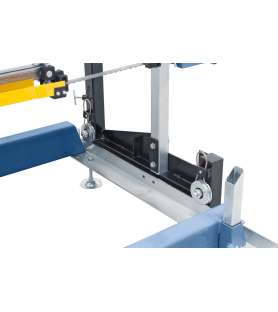

• 2 pcs. log clamping device
• Coolant tank

Technical specifications of the log bandsaw Bernardo BBS650E - 400V :

• Max. log diameter : 660 mm
• Max. board width : 520 mm
• Max. cutting height : 470 mm
• Min. cutting height : 45 mm
• Max. cutting depth : 180 mm
• Cutting length basic version : 5100 mm
• Max. cutting length : unlimited
• Min. cutting length : 1000 mm
• Feed : manual
• Diameter of flywheel : 480 mm
• Width of flywheel : 22 mm
• Bandsaw blade : 3650 x 34 x 1,1 mm
• Bandsaw blade speed : 1200 m/min
• Motor power : 7,5 kW (10 HP)
• Voltage : 400 V
• Machine dimension (W x H x L – basic version) : 1800 x 1700 x 6505 mm
• Weight approx. : 380 kg
