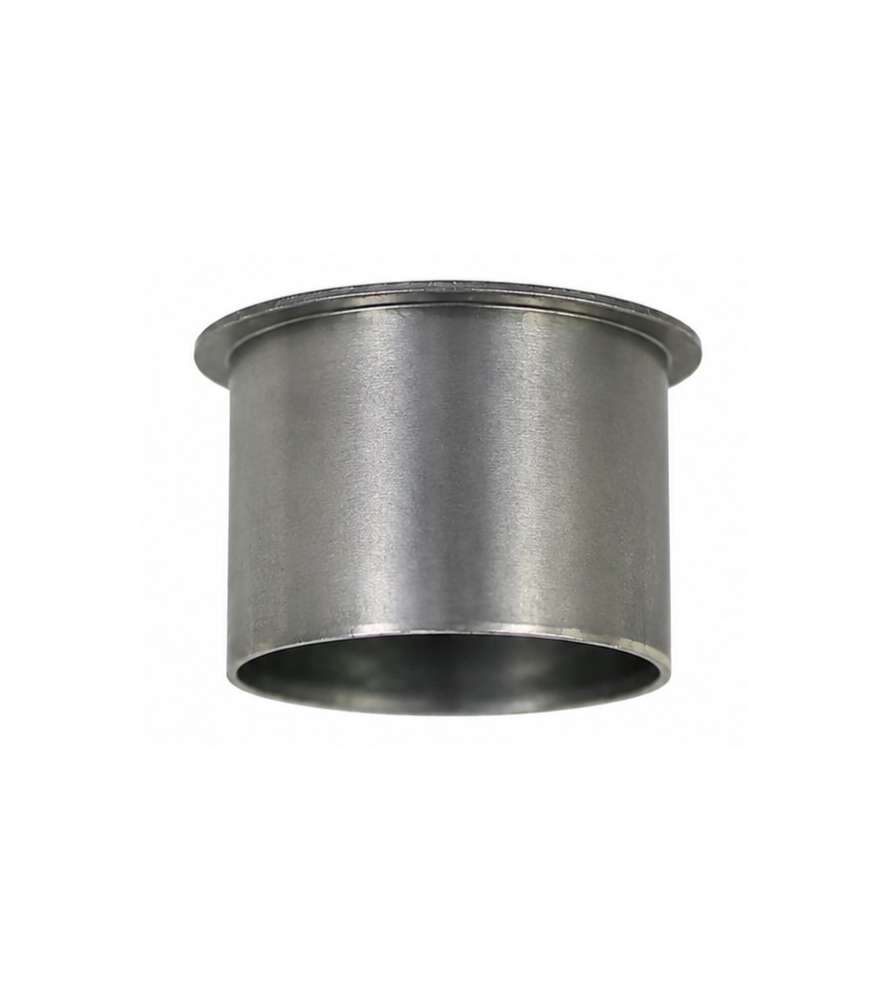

Cylinder Sleeve for Scheppach HC30V, HC50V and HC51V Air Compressors – Ref. 5906125023
  • Cylinder Sleeve for Scheppach HC30V, HC50V and HC51V Air Compressors – Ref. 5906125023

Cylinder Sleeve for Scheppach HC30V, HC50V and HC51V Air Compressors – Ref. 5906125023

26.99 € Tax included

Reference: KPD5906125023

Original Scheppach cylinder sleeve (ref. 5906125023) designed for Scheppach HC30V, HC50V and HC51V air compressors. This genuine replacement part guides the piston inside the cylinder and ensures optimal compression and reliable compressor performance.

Quantity
Delivery time 12-15 working days

Original Cylinder Sleeve for Scheppach HC30V, HC50V and HC51V Air Compressors

Restore your compressor's original performance

The Scheppach cylinder sleeve ref. 5906125023 is a genuine manufacturer replacement part designed to replace a worn or damaged cylinder sleeve on selected Scheppach oil-free air compressors.

As an essential component of the compressor pump, the cylinder sleeve guides the piston while providing the proper sealing surface for the piston ring. Replacing a worn sleeve helps restore compression, improve efficiency and extend the service life of your compressor.

Why replace the cylinder sleeve?

A worn cylinder sleeve may cause:

  • Loss of compression
  • Reduced compressor performance
  • Excessive operating temperature
  • Premature wear of the piston and piston ring
  • Longer tank filling times

Replacing the cylinder sleeve helps restore the compressor's original operating performance.

Compatible machines

This genuine Scheppach spare part is compatible with the following models:

  • 3906115953 - à partir de 07/2015 - Dexter AC50V
  • 3506101903 - à partir de 07/2015 - IXES HC50V Suisse
  • 5906113901 - à partir de 07/2015 - Scheppach HC50V (DIY)
  • 5906113972 - à partir de 07/2015 - Zgonc Yellow Profi Line YPL500
  • 5906113985 - à partir de 07/2015 - Scheppach HC50V (DIY)
  • 3906115954 - à partir de 07/2015 - Dexter AC51V
  • 5906113946 - à partir de 07/2015 - Scheppach HC50V (DIY) Royaume-Uni
  • 3906117948 - Dexter AIRBOX
  • 5906118901 - Scheppach Aircase (DIY)
  • 5906118985 - Scheppach Aircase (DIY)
  • 3906117926 - Meec (Jula) Aircase
  • 3906117904 - Dexter AIRBOX
  • 3906150948 - Dexter AIRBOX 2
  • 5906117901 - Scheppach HC24V (DIY)
  • 3906119953 - Dexter AC24V
  • 59061179977 - Scheppach HC24V (DIY)
  • 3906119915 - Herkules HC24V (Bauhaus) Autriche
  • 5906117905 - Scheppach HC24V (DIY) Royaume-Uni
  • 5906117901 - Scheppach HC24V (DIY)
  • 3906119953 - Dexter AC24V
  • 5906117903 - Scheppach HC24V (DIY)
  • 3906119931 - Herkules C24-5 (Bauhaus)
  • 5906117904 - Scheppach HC24V (DIY)
  • 59061179977 - Scheppach HC24V (DIY)
  • 59061179969 - Scheppach HC24V (DIY)
  • 5906121901 - Scheppach HC30V (DIY)
  • 5906124930 - Scheppach HC30V (DIY)
  • 3906122972 - Zgonc Yellow Profi Line YPL302
  • 5906121901-900 - Scheppach HC30V avec kit d'accessoires 13 pièces + tuyau de 10 m
  • 5906125901 - Scheppach HC51V (DIY)
  • 5906125900 - Scheppach HC51V (DIY)
  • 5906125901-900 - Scheppach HC51V avec kit d'accessoires 13 pièces + tuyau de 15 m
  • 5906125903 - Scheppach HC51V (DIY)
  • 3906131917 - Kraft HC51V
  • 5906125904 - Scheppach HC51V (DIY)
  • 5906125905 - Scheppach HC51V (DIY) Royaume-Uni
  • 5906125906 - Scheppach HC51V (DIY)
  • 5906125917 - Scheppach HC51V (DIY)
  • 5906125986 - Scheppach Black P-KV51
  • 5906139917 - Scheppach VC52Pro SE (DIY)
  • 59061259969 - Scheppach HC51V (DIY)
  • 3906131974 - Parkside PVKO50B2 LB1
  • 39061319915 - Parkside PVKO50B2 LB8
  • 59061259953 - Scheppach HC51V8A (DIY)
  • 5906125907 - Scheppach HC51V (DIY)
  • 59061649969 - Scheppach HC51V (DIY)
  • 59061399969 - Scheppach HC51V (DIY)
  • 3906131915 - Herkules HC51V (Bauhaus) Autriche
  • 5906125984 - Scheppach HC51V (DIY) Suisse
  • 58061199944 - Scheppach Black ACP51V-BE

Manufacturer reference: 5906125023

Dimensions:

  • Outside diameter: Ø61 mm
  • Inside diameter: Ø52.5 mm

Why choose a genuine Scheppach spare part?

Using an original Scheppach replacement part ensures:

  • Perfect fit and compatibility
  • Original compressor performance
  • Maximum reliability
  • Long service life

Technical specifications

  • Part type: Cylinder sleeve
  • Manufacturer: Scheppach
  • Manufacturer reference: 5906125023
  • Outside diameter: Ø61 mm
  • Inside diameter: Ø52.5 mm
  • Genuine original spare part

Compatible machines

  • Scheppach HC30V
  • Scheppach HC50V
  • Scheppach HC51V

⚠️ IMPORTANT: BEFORE PURCHASING, PLEASE CHECK THE LIST OF COMPATIBLE MACHINES FOR THIS PART, AS COMPATIBILITY MAY VARY DEPENDING ON THE MONTH AND YEAR OF MANUFACTURE AS WELL AS THE MACHINE'S SERIAL NUMBER.
