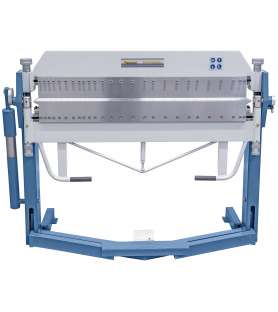

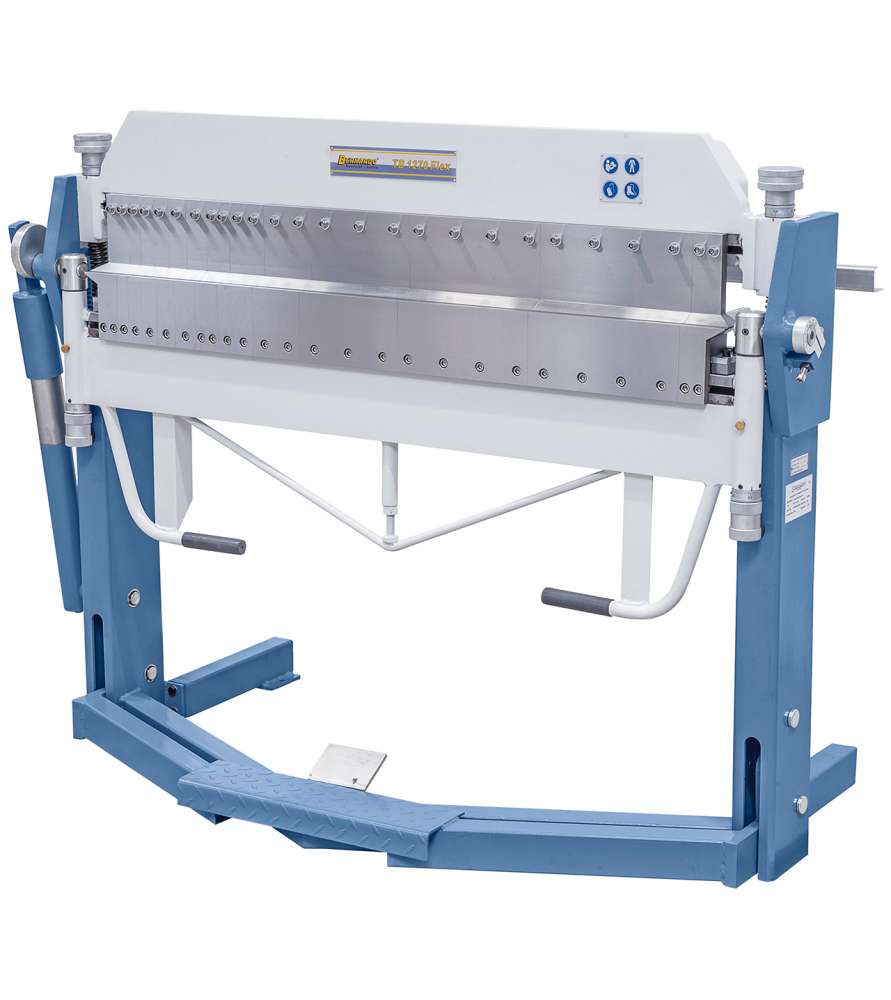

General description of the Bernardo TB1270FLEX folding machine :

• A large number of bending possibilities are achieved in the upper, lower and bending stringers thanks to the keypad elements
• Cassettes and special profiles with opposing bends are easy to make with this model
• Universal bender for zinc workers and repair companies

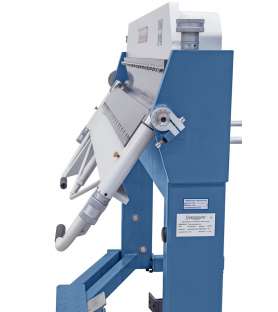

• Simple pivoting movement of the bending stringer via the yoke handle

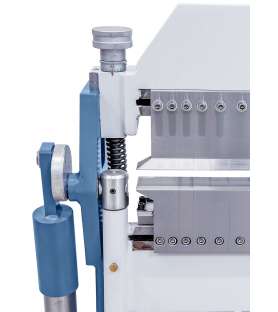

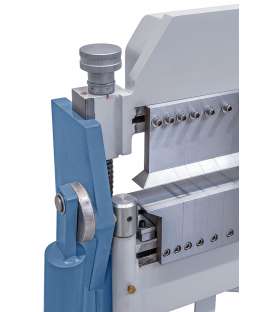

• Easy adjustment of the upper stringer for rational work
• High top stringer to make high bevel profiles
• Large flat guide for precise work

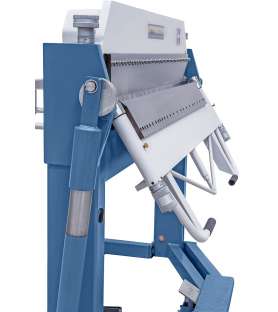

• An auxiliary cylinder assists the bending operation during chamfering

The Bernardo TB1270FLEX Folder is delivered with :

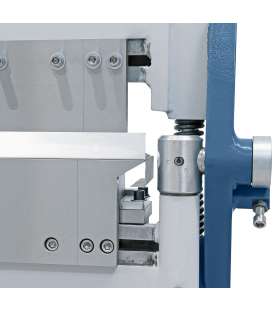

• Segmented upper, lower and bending stringers

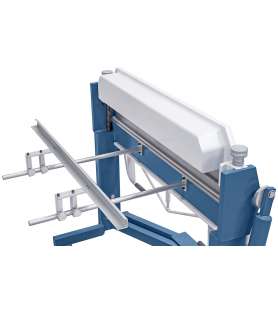

• Rear stop
• 75mm left/right corner segments | 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 200 | 250 | 270mm each

Technical characteristics of the Bernardo TB1270FLEX folder :

• Working length: 1270 mm
• Max thickness of sheet metal (400 N/mm2): 2.0 mm
• Maximum opening width. with segments: 48 mm
• Maximum opening width. without segments: 150 mm
• Maximum passage height. closed: 125 mm
• Bending angle: 0 - 135°
• Rear stop: 600 mm
• Working height: 900 mm
• Width: 1620 mm
• Depth*: 1070 mm
• Height: 1280 mm
• Weight approx. : 465 kg
• * with rear stop
