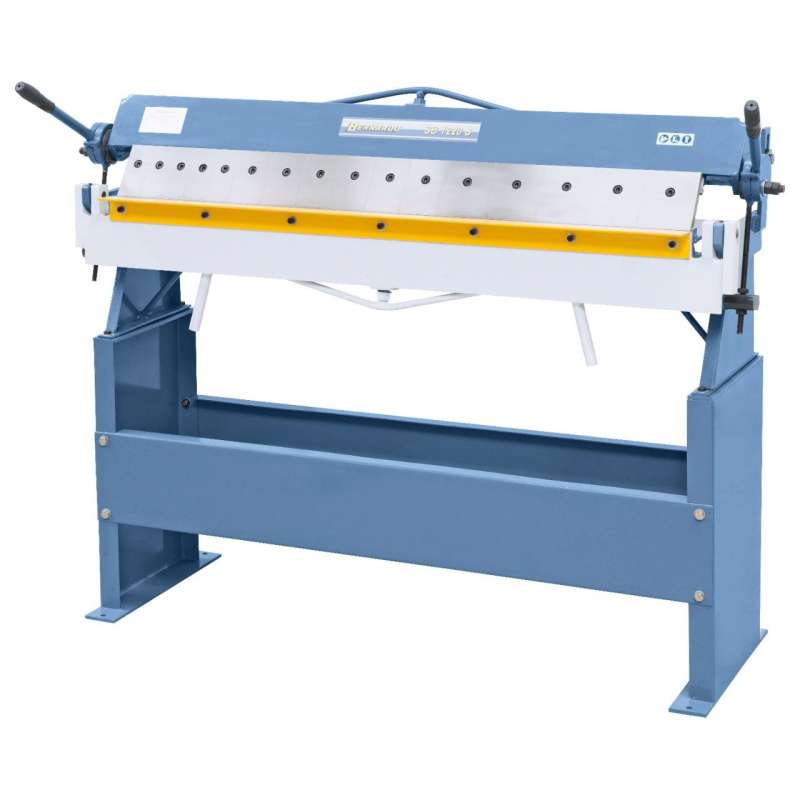

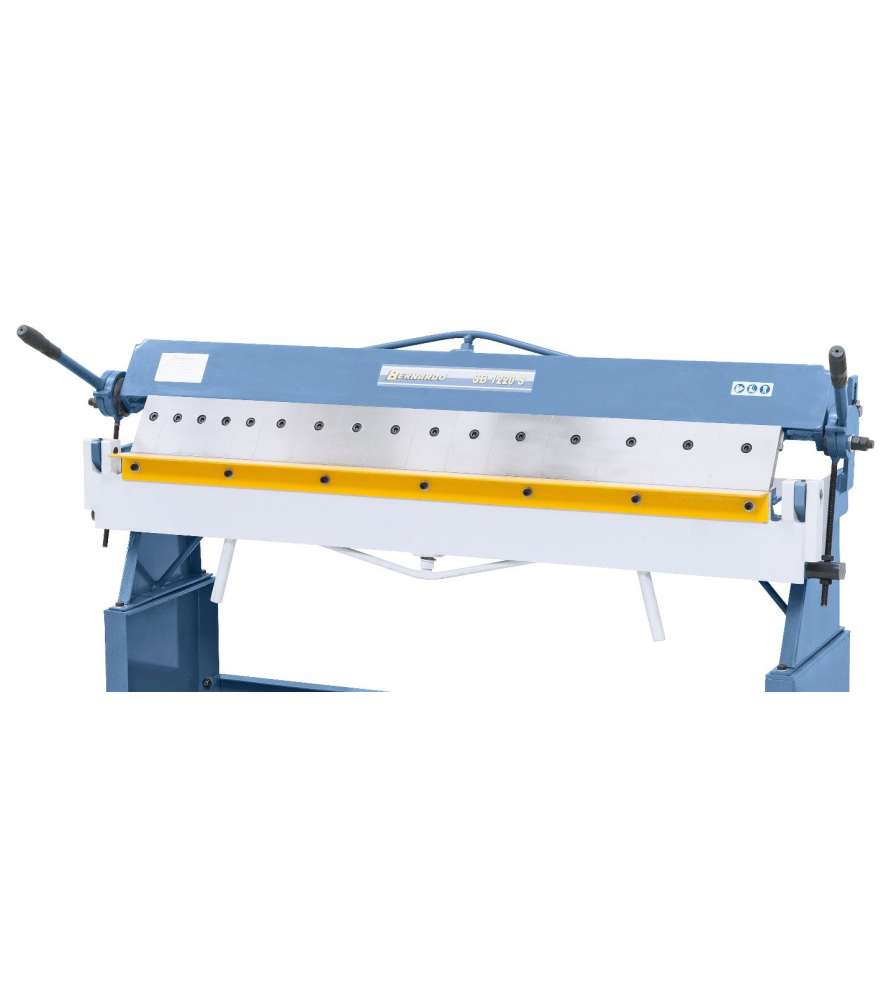

Manual folding machine Bernardo SB1220S
  • Manual folding machine Bernardo SB1220S
  • Manual folding machine Bernardo SB1220S
  • Manual folding machine Bernardo SB1220S
  • Manual folding machine Bernardo SB1220S

Manual folding machine Bernardo SB1220S

1,059.00 € Tax included

Reference: BSB1220S

This manual folding machine can bend profiles or make boxes with high precision 1220 mm working length.

Quantity
Factory shipment, delivery within 12 to 15 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

Properties

  • Manual bending machine for standard tasks
  • Pivoting movement of the bending beam via bow handle
  • Upper beam rail with point angle 45 °
  • Inexpensive entry-level model for the craftsman
  • User-friendly upper beam infeed via eccentric
  • Removeable segments for bending of boxes
  • Secure clamping of the sheet metal by means of a special clamping device

Technical specifications

  • Working length : 1220 mm
  • Sheet thickness max. (400 N / mm2) : 1,5 mm
  • Max. opening : 40 mm
  • Bending angle : 0 - 135°
  • Working height with stand : 900 mm
  • Width : 1520 mm
  • Depth : 360 mm
  • Height * : 530 mm
  • Weight approx. ca. : 135 kg
  • * without stand

The SB1200S is delivered with :

  • Segmented upper beam
  • Bending segments 5 x 51 | 6 x 76 | 5 x 102 mm
