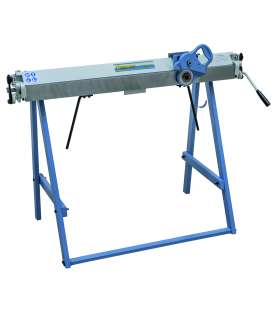

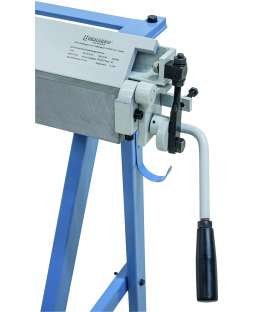

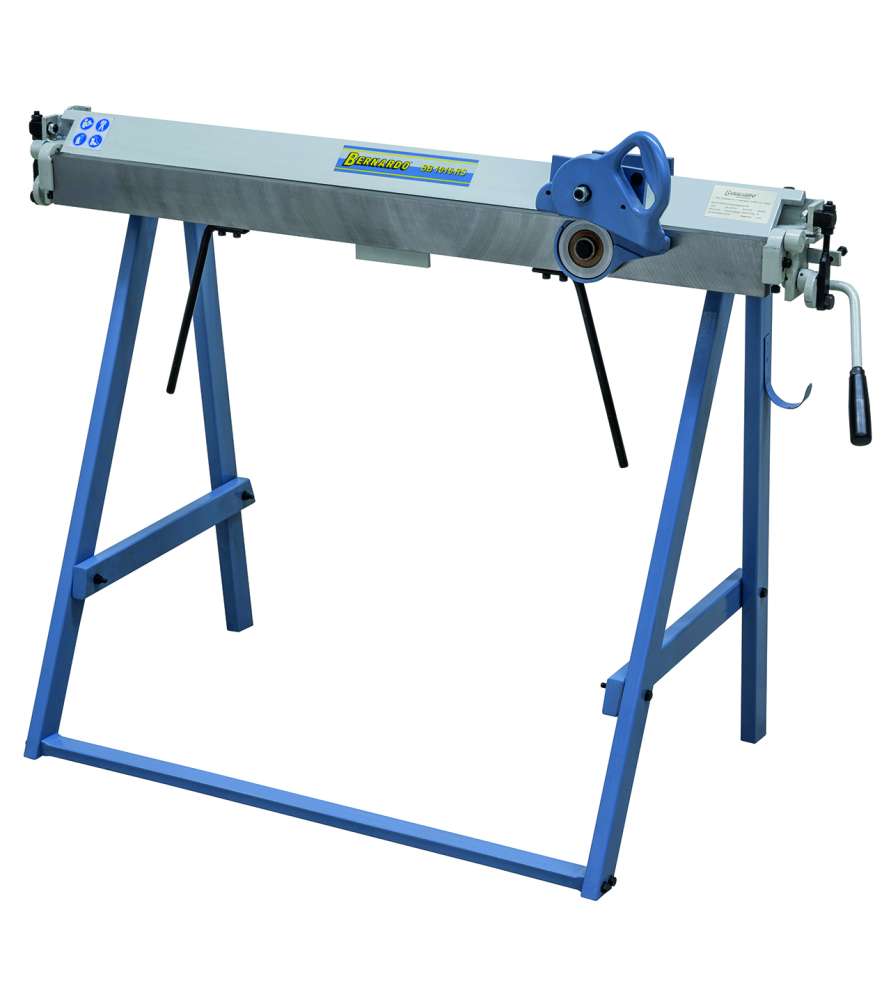

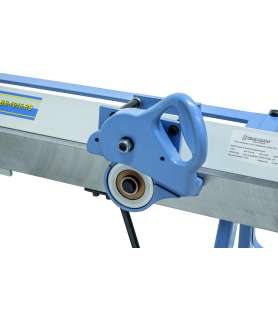

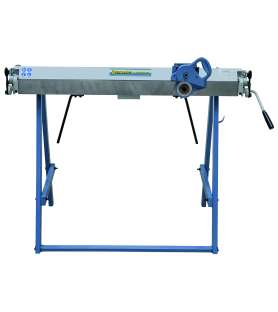

Advantages of the Bernardo BB1016RS bending machine with rotary shear :

• Manual bending machine for standard bending tasks
• User-friendly upper beam infeed via eccentric
• Robust welded steel construction, designed for heavy use
• Secure clamping of the sheet metal by means of a special clamping device
• Comes complete with sheet metal shear

The Bernardo BB1016RS bending machine with rotary shear comes with :

• Sheet metal shear
• Stand

Technical specifications of the Bernardo BB1016RS bending machine with rotary shear :

• Working length : 1050 mm
• Sheet thickness max. (400 N / mm2) : 1,0 mm
• Max. opening : 50 mm
• Bending angle : 0 - 135°
• Working height : 880 mm
• Width : 1420 mm
• Depth : 620 mm
• Height * : 930 mm
• Weight approx. ca. : 64 kg
