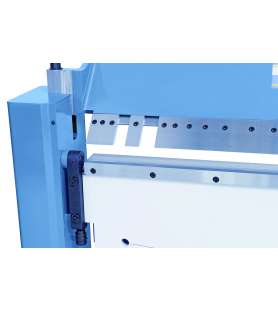

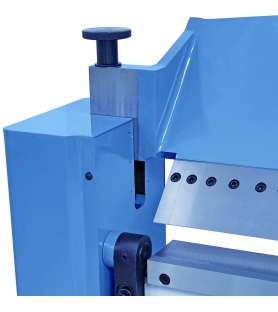

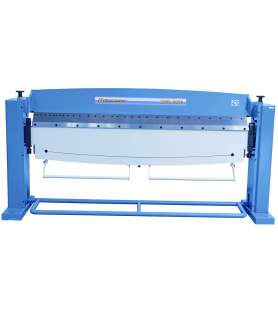

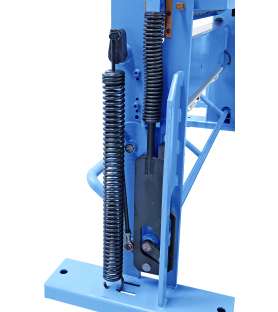

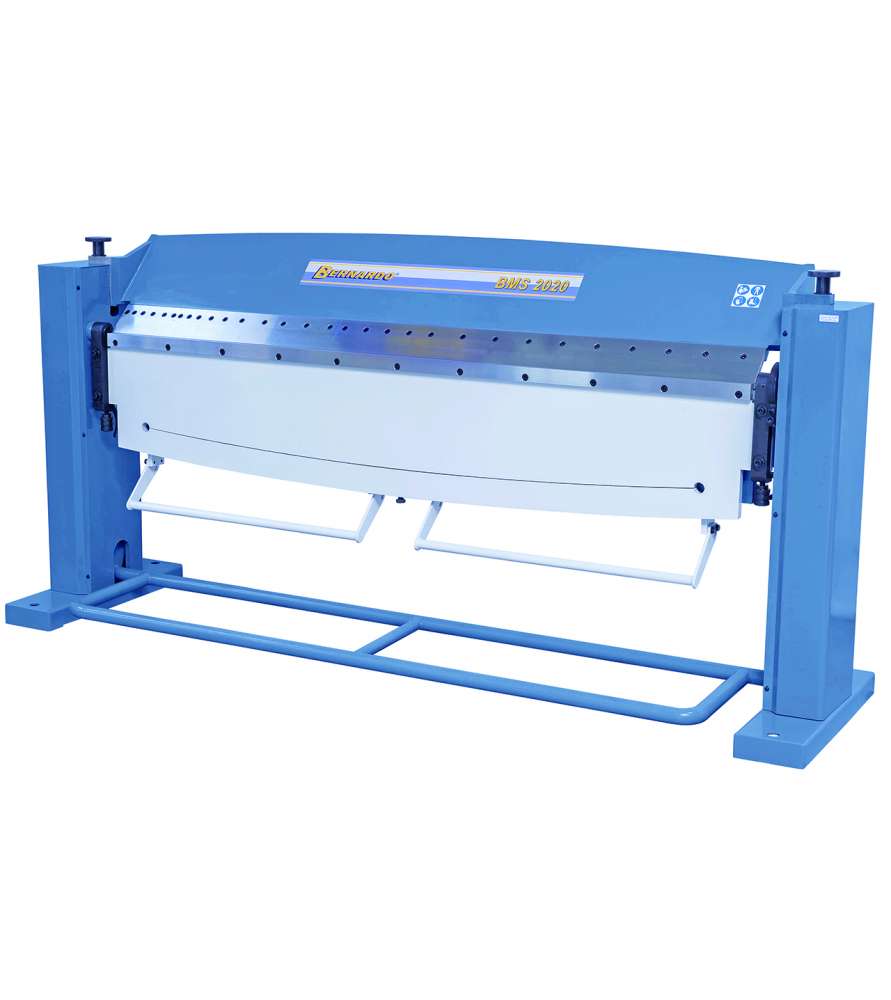

Advantages of the Bernardo BMS2020 manual folding machine :

• Universal bending machine for plumbers and repair shops
• Solid construction in modern design
• Easy adjustment of the upper beam with foot pedal, hands are free for the workpiece
• Manual bending machine for standard bending tasks
• Segmented upper beam for a large number of bending possibilities
• Long life span thanks to robust welded steel construction
• Quick and easy bending process by means of bow handle
• Easy adjustment of the lower beam to the respective sheet thickness

Technical specifications of the Bernardo BMS2020 manual folding machine :

• Working length : 2020 mm
• Sheet thickness max. (400 N / mm2) : 1,5 mm
• Max. opening with segments : 55 mm
• Max. opening without segments : 100 mm
• Max. clearance closed : 45 mm
• Bending angle : 0 - 135°
• Working height : 890 mm
• Width : 2490 mm
• Depth : 700 mm
• Height : 1280 mm
• Weight approx. ca. : 800 kg
