Advantages of the Bernardo BB2000RS folding machine with rotary shear :

• Manual bending machine for standard bending tasks
• User-friendly upper beam infeed via eccentric
• Robust welded steel construction, designed for heavy use
• Secure clamping of the sheet metal by means of a special clamping device

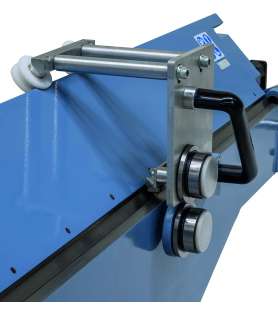

• Comes complete with sheet metal shear

The Bernardo BB2000RS folding machine with rotary shear comes with:

• Stand

Technical specifications of the Bernardo BB2000RS folding machine with rotary shear :

• Working length: 2000 mm
• Maximum sheet metal thickness (400 N/mm²): 0.8 mm
• Maximum opening: 59 mm
• Bending angle: 0 - 135°
• Working height: 945 mm
• Width: 2340 mm
• Depth: 660 mm
• Height: 1150 mm
• Approximate weight: 202 kg
