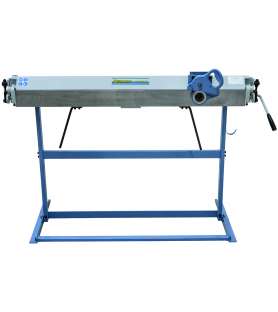

Advantages of the folding machine Bernardo BB1220RS with rotary shear :

• Manual bending machine for standard bending tasks
• User-friendly upper beam infeed via eccentric
• Robust welded steel construction, designed for heavy use
• Secure clamping of the sheet metal by means of a special clamping device

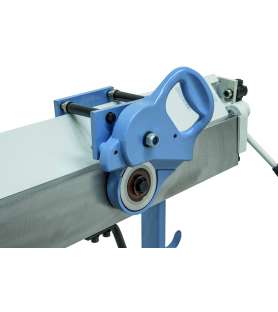

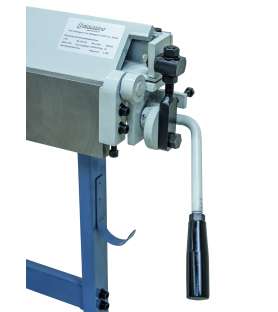

• Comes complete with sheet metal shear

The folding machine Bernardo BB1220RS with rotary shear comes with :

• Stand

Technical specifications of the folding machine Bernardo BB1220RS with rotary shear :

• Working length: 1250 mm
• Maximum sheet metal thickness (400 N/mm²): 0.8 mm
• Maximum opening width: 50 mm
• Bending angle: 0–135°
• Working height: 920 mm
• Width: 1640 mm
• Depth: 600 mm
• Height: 990 mm
• Approximate weight: 89 kg
