Bernardo BM25SB column drill with powerful and robust IP 54 aluminum motor!
Machine equipped as standard with digital spindle depth indicator and LED lighting
Advantages of the Bernardo BM25SB drill press:
Quiet operation thanks to gray cast iron pulleys
Quality bearings for excellent spindle concentricity
Large T-slot drilling table and cutting fluid discharge channel
Tiltable drilling table (360°), height adjustable by rack
Left/right rotation switch
Precision quick-release chuck as standard
Standard with T-slots in ground base
Ergonomic handles for comfortable use
Machine delivered with:
Keyless chuck 1 - 16 mm / B 18
CM 3 / B 18 chuck mounting shaft
Left/right rotation reversing switch
LED lighting
Laser aiming device

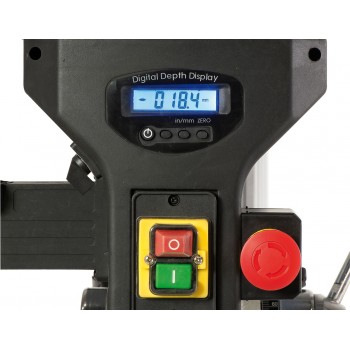

Digital depth indicator
Nuts for T-slots
Height adjustable protector
Separate emergency stop button
Technical characteristics of the Bernardo BM25SB drill press:
Maximum drilling diameter: 25 mm
Drill chuck: 1 - 16 mm / B 18
Morse taper: CM 3
Spindle Speed: (12) 150 - 2450 rpm
Gooseneck: 220 mm
Tiltable drilling table: 360°
Max spindle/table distance: 765 mm
Spindle/base distance: 1230 mm
Spindle stroke: 120 mm
Column diameter: 92 mm
Dimensions table / T-slots: 300 x 300 mm / 14 mm
Pedestal work surface: 290 x 270 mm
Continuous power S1 100%: 1.1 kW / 400 V
Power S6 40%: 1.6 kW / 400 V
Machine dimensions (W x D x H): 450 x 750 x 1680 mm
Weight (approx.): 110 kg
Reference
BBM25SB-400V
