Column Drilling press Bernardo SB 32 S - 400V
  • Column Drilling press Bernardo SB 32 S - 400V
  • Column Drilling press Bernardo SB 32 S - 400V
  • Column Drilling press Bernardo SB 32 S - 400V
  • Column Drilling press Bernardo SB 32 S - 400V
  • Column Drilling press Bernardo SB 32 S - 400V
  • Column Drilling press Bernardo SB 32 S - 400V
  • Column Drilling press Bernardo SB 32 S - 400V

Column Drilling press Bernardo SB 32 S - 400V

1,155.00 € Tax included

Including €2.50 for ecotax

Reference: BBM32SB-400V

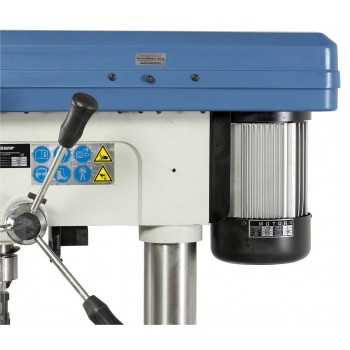

The powerful BM 32 SB drill press with modern design is equipped with a laser aiming, a digital display of the spindle depth and the reversal of the direction of rotation.

Quantity
Delivery within 10 to 15 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The powerful Bernardo BM32SB drill press has multiple options for precision drilling!

This model is suitable for the discerning DIY enthusiast, but also for workshops and craftsmen.

Advantages of the Bernardo BM32SB drill press:

  • Standard with digital pin depth indicator and LED lighting
  • Quiet operation thanks to gray cast iron pulleys
  • Quality bearings for excellent spindle concentricity
  • Large T-slot drilling table and cutting fluid discharge channel
  • Tilting tilting table (360 °), rack height adjustment
  • Left / right rotation switch
  • Powerful and robust aluminum motor IP 54
  • Standard quick-action chuck
  • Standard with T-slots in the ground base
  • Ergonomic handles for comfortable use.

    Technical specifications of the Bernardo BM32SB drill press:

    • Maximum drilling diameter: 32 mm
    • Drilling chuck: 1 - 16 mm / B 18
    • Morse taper: CM 4
    • Spindle speed (12): 150 - 2450 rpm
    • Gooseneck: 255 mm
    • Reclining Drilling Table: 360 °
    • Maximum distance spindle / table: 750 mm
    • Distance pin / base: 1210 mm
    • Spindle stroke: 120 mm
    • Column diameter: 92 mm
    • Table / T-slot dimensions: 385 x 335 mm / 14 mm
    • Work surface base: 380 x 335 mm
    • Continuous power S 1 100%: 1,1 kW / 400 V
    • Power S 6 40%: 1.6 kW / 400 V
    • Machine dimensions (W x D x H): 450 x 800 x 1730 mm
    • Weight (approx.): 125 kg

      Standard equipment for the Bernardo BM32SB drill press :

      • Quick-action chuck 1 - 16 mm / B 18
      • Chuck mounting shaft CM 4 / B 18
      • Toggle switch left / right
      • LED lighting
      • Laser sighting device
      • Digital depth indicator
      • T-slot nuts
      • Height-adjustable protector
      • Separate emergency stop button
