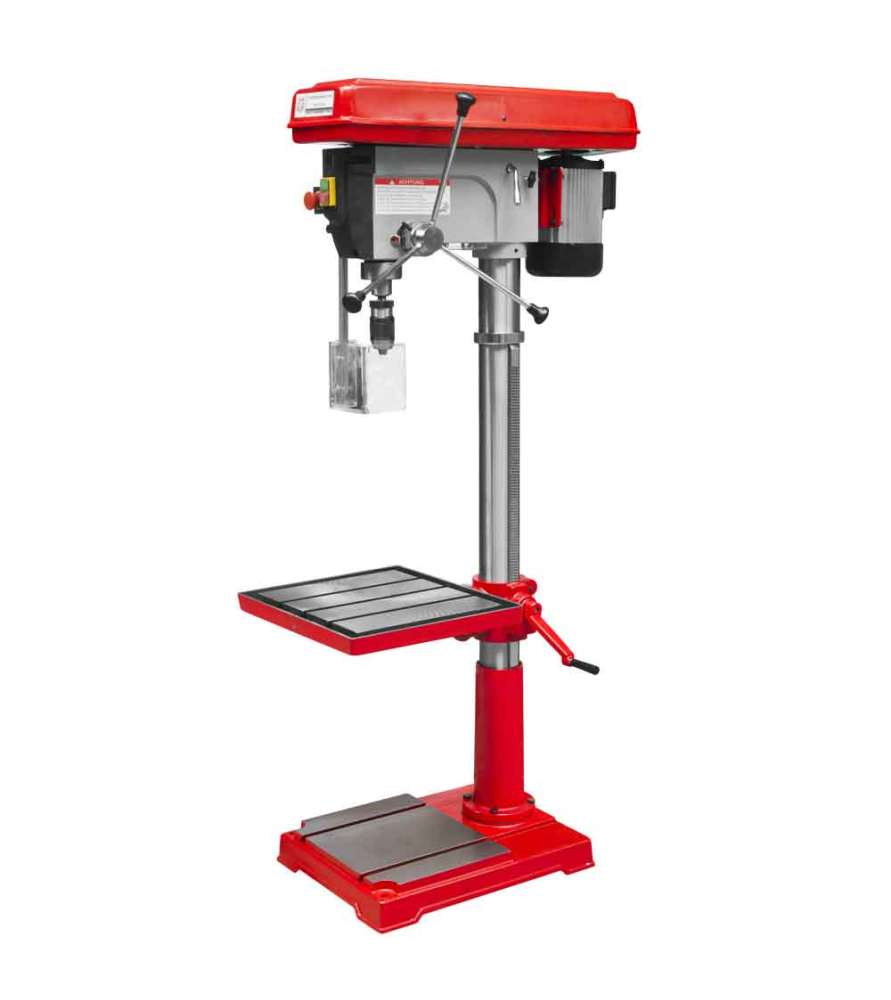

The Holzmann SB4132SM floor drill press is a robust and powerful machine designed for demanding drilling operations in workshops, maintenance departments, metalworking shops and professional environments. Equipped with a 2-step motor, 24 spindle speeds and forward/reverse spindle rotation, it delivers the precision and versatility required for drilling steel, aluminium, plastics, wood and many other materials.

Its rigid steel column, heavy-duty base and large tilting worktable provide excellent stability, making it ideal for accurate drilling applications.

A powerful and versatile floor drill press

Designed for professional use, the Holzmann SB4132SM combines a robust construction with a wide speed range, allowing the user to adapt the machine to different drill diameters and materials.

With a maximum drilling capacity of 32 mm, it is suitable for a wide variety of workshop applications.

Forward and reverse spindle rotation

One of the main advantages of the SB4132SM is its forward/reverse spindle rotation.

This feature allows you to:

• Perform standard drilling operations.

• Easily remove cutting tools.

• Increase versatility for various workshop applications.

• Improve overall operating convenience.

The direction of rotation is selected using the dedicated control switch.

Wide speed range

The 24 spindle speeds, ranging from 60 to 3480 rpm, allow you to select the ideal cutting speed according to the material and drill diameter.

This wide speed range makes the machine suitable for:

• Large-diameter drilling.

• Precision drilling.

• Metalworking.

• Woodworking.

• Plastic machining.

Heavy-duty construction

The Holzmann SB4132SM has been designed for maximum rigidity and long service life.

It features:

• Heavy-duty polished cast iron base with T-slots.

• Torsion-resistant polished steel column.

• Aluminium motor with IP54 protection.

• Hinged spindle safety guard.

• Adjustable drilling depth stop with graduated scale.

These features ensure excellent drilling precision while providing a high level of operator safety.

Large adjustable worktable

The spacious worktable measures 475 × 420 mm and provides excellent support for large workpieces.

It can:

• Tilt from -45° to +45°.

• Rotate 360° around the column.

• Be adjusted in height.

This flexibility allows the drill press to adapt easily to a wide range of drilling applications.

Powerful 2-step motor

The SB4132SM is equipped with a 2-step motor delivering:

• S1 (continuous duty): 700 / 1100 W

• S6 (intermittent duty): 1500 / 2200 W

Powered by a 400 V three-phase supply, it provides the power required for intensive professional use.

Technical specifications

Model: Holzmann SB4132SM

Maximum drilling capacity: 32 mm

Spindle speeds: 24 speeds (60–3480 rpm)

Power supply: 400 V

Motor power S1: 700 / 1100 W

Motor power S6: 1500 / 2200 W

Spindle taper: MT4 (Morse Taper No. 4)

Spindle travel: 120 mm

Maximum distance from spindle to table: 680 mm

Maximum distance from spindle to base: 1160 mm

Throat depth: 257 mm

Table dimensions: 475 × 420 mm

Base dimensions: 580 × 450 mm

Table tilt: -45° to +45°

Machine dimensions: 570 × 870 × 1710 mm

Net weight: 143 kg

Gross weight: 125 kg

Standard equipment

The machine is supplied with:

• 1–16 mm keyless drill chuck (B18).

Key features of the Holzmann SB4132SM

• Professional floor drill press

• Maximum drilling capacity of 32 mm

• Forward and reverse spindle rotation

• 24 spindle speeds from 60 to 3480 rpm

• Powerful 2-step motor

• Heavy-duty polished steel column

• Large tilting worktable (-45° to +45°)

• 360° rotating table

• Adjustable drilling depth stop with graduated scale

• Hinged spindle safety guard

• IP54 aluminium motor

• Heavy-duty cast iron base with T-slots

• Supplied with a 1–16 mm keyless drill chuck

• Ideal for professional workshops, maintenance departments and metalworking applications
