Column drill Holzmann SB4116HN
  • Column drill Holzmann SB4116HN

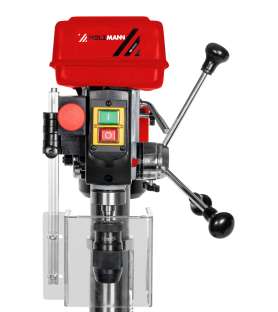

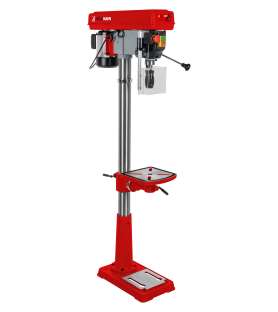

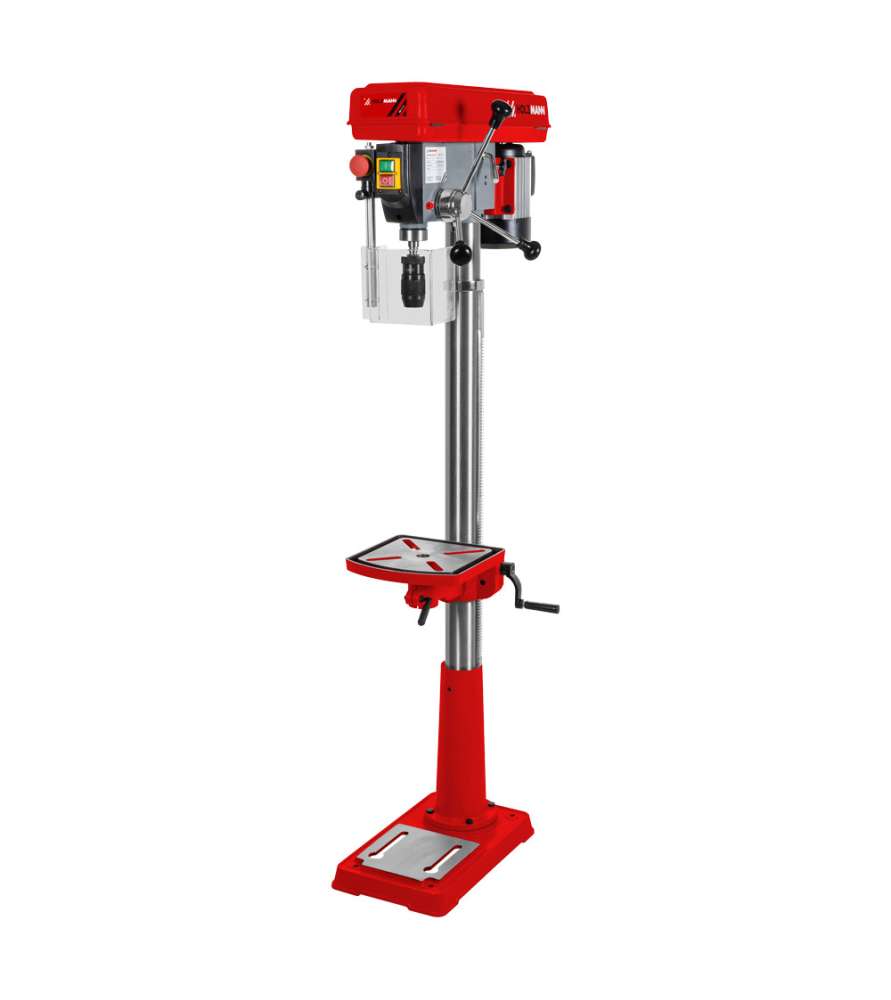

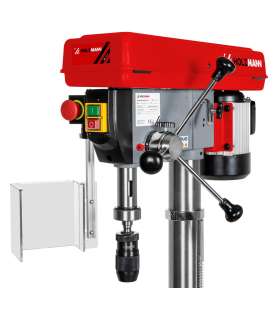

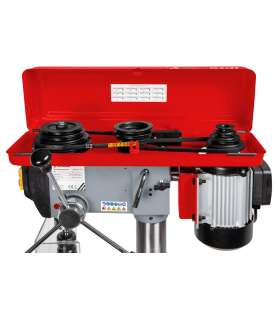

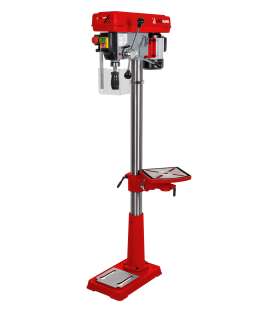

Floor column drill Holzmann SB4116HN - 230V

370.83 € Tax included

Including €2.50 for ecotax

Reference: HSB4116HN-230V

The floor column drill Holzmann SB4116HN is the improved version of the SB4115H drill, larger and more powerful, it will allow you to perform quality work!

Quantity
In stock, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

Floor column drill Holzmann SB4116HN with a solid base for a good balance of the machine, with T-slots!

Advantages of the column drill Holzmann SB4116HN :

  • Solid base for a good balance of the machine, with T-slots.
  • Aluminum motor according to IP54 standards.
  • Steel column, solid, polished, and resistant to torsion.
  • Tilting and adjustable protection screen.
  • Adjustable drilling depth stop, with scale for precise depth control.
  • The work table can be tilted from -45 ° to + 45 ° and also rotate 360 ​​° around the column.

Specifications of the floor column drill Holzmann SB4116HN :

  • Max. drilling capacity : 16 mm
  • Speed ​​of rotation: (12) 180-2740 min-1
  • Voltage: 230V
  • Gooseneck: 165 mm
  • Morse taper of the spit: MK2
  • Chuck stroke: 80 mm
  • Distance table spindle (max): 670 mm
  • Distance pin-base (max): 1180 mm
  • Overall height: 1630 mm
  • Table dimensions: 254x254 mm
  • Base: 456x280 mm
  • Engine power: 400W / 600W
  • Net weight: 51 kg
  • Gross weight: 56 kg
  • Size of the package (WxDxH): 1430x510x256 mm

The machine ships with:

Self-tightening chuck 1 to 16 mm, B16.

HSB4116HN-230V
