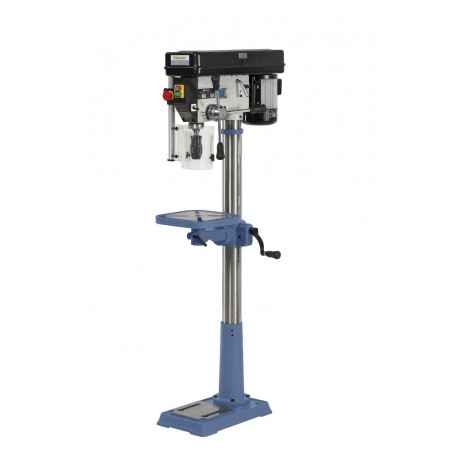

Drill press Bernardo SB 25 S - 400V

Floor column drill Bernardo SB 25 S - 400V

Reference: BSB25S-400V

499.17 €

Including €2.50 for ecotax

Bernardo SB 25 S drill has a switch to turn left and right and a powerful motor with a capacity of 25 mm!

Quantity
Factory shipment, delivery within 10 to 12 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

Bernardo SB 25 S drill has a switch to turn left and right and a powerful motor with a capacity of 25 mm!

Advantages of the floor column drill Bernardo SB25S :

  • High-quality ball bearings ensure high spindle concentricity
  • Surface treated work table can be adjusted in height via gear rack and crank
  • Switch for left and right turning
  • Powerful, high torque aluminium motor according to IP 54 standard
  • Precise keyless drill chuck comes standard
  • Treated base allows clamping of oversize workpieces
  • Drill table (±45°), height adjustable via gear rack
  • Large drill table features T-slots and coolant groove

Technical characteristics of the floor column drill Bernardo SB25S :

  • Drilling capacity steel 25 mm
  • Chuck : 1-16 mm / B 18
  • Morse taper : MT 3
  • 12-speed : 280-2380 RPM
  • Distance axis column: 175 mm
  • Tilt table : - 45 ° à + 45 °
  • Distance PIN at the table Max. : 685 mm
  • Distance PIN base : 1175 mm
  • Race the spindle : 85 mm
  • Diameter of the column : 80 mm
  • Table / size T-slot : 290 x 290 mm. 16 mm
  • Surface Working Base : 205 x 205 mm
  • Engine power exit S1 1 100%  : 0,75 kW - 400V
  • Entry power engine S6 40% : 1.1 kW - 400V
  • Dimension of the machine (L x W x H) : 380 x 660 x 1560 mm- Weight approx. : 65 kg

Delivery with :

  • Chuck 1-16 mm / B 18
  • Chuck tree MT 3 / B 18
  • Nuts for T-slot
  • Switch for turn left and right
  • Protective cover height-adjustable
  • Switchseparate emergency stop
  • Tools
