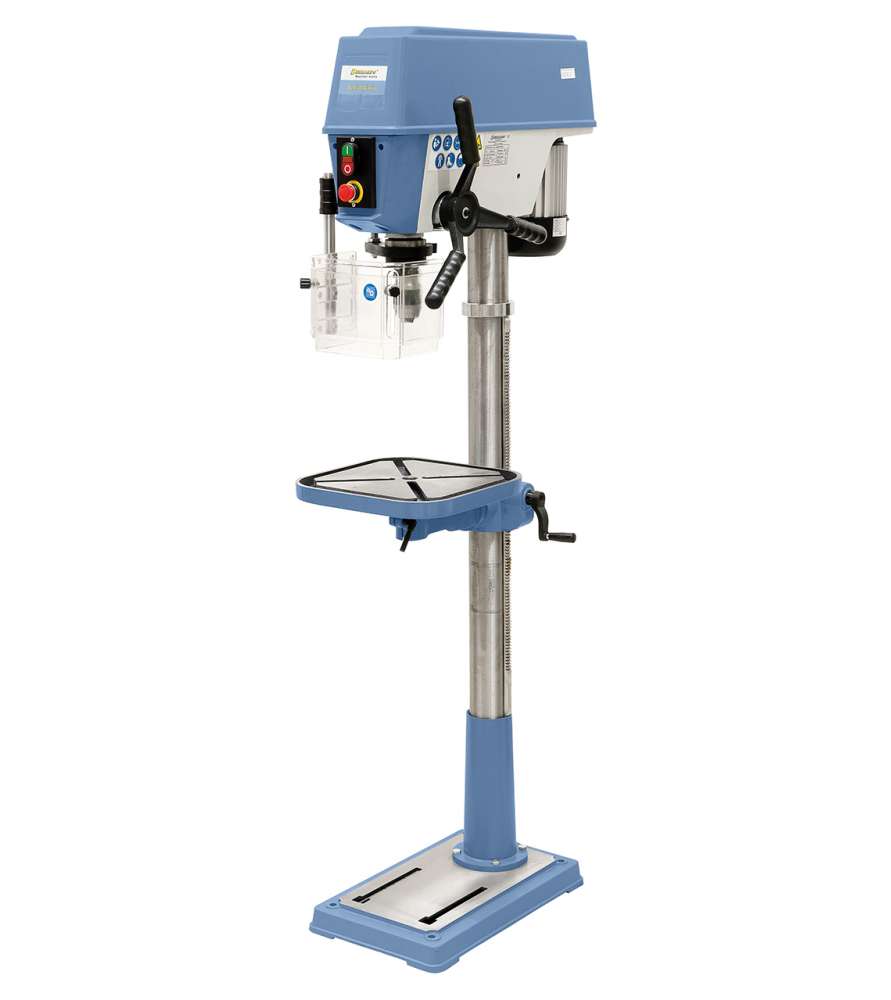

Advantages of the vario drilling machine Bernardo B 430 Vario - 400V :

• Safety switch with undervoltage release
• Stepless speed adjustment
• Compact, solid construction with modern design
• Aluminium-motor according to IP 54 - 400 V
• Table rotates 360°
• Solid, polished steel column
• Top quality at a reasonable price
• Scale for drill depth
• Cast iron table with cooling grooves
• Spindle runs on high-quality ball bearings
• Gear rack allows easy table height adjustment

The vario drilling machine Bernardo B 430 Vario - 400V comes with :

• Drill chuck arbor MT 3 / B 16
• Keyless drill chuck 3 - 16 mm / B 16
• T-slot nuts
• Height adjustable protecive cover

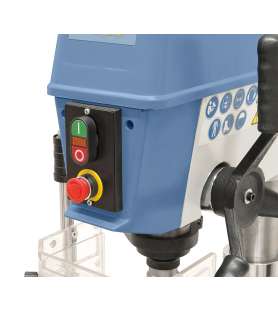

• Separate emergency stop switch
• Tools

Technical specifications of the vario drilling machine Bernardo B 430 Vario - 400V :

• Drilling capacity max. : 25 mm
• Keyless drill chuck : 3 - 16 mm / B 16
• Morse taper : MT 3
• Spindle speed, stepless : 280 - 2600 rpm
• Distance spindle to column : 220 mm
• Table rotatable : 360°
• Distance spindle to table max. : 790 mm
• Distance spindle to base : 1250 mm
• Spindle stroke : 80 mm
• Column diameter : 80 mm
• Table size / T-slot size : 345 x 345 mm / 16 mm
• Working surface of base : 240 x 275 mm
• Motor power output S1 100% :  0,75 kW (1,1 HP) / 400 V
• Motor power input S6 40% : 1,1 kW (1,5 HP) / 400 V
• Machine dimension (W x D x H) : 350 x 720 x 1710 mm
• Weight approx. : 100 kg
