Dust collector Jean l'ébéniste FM230

220.83 €

Including €2.50 for ecotax

Reference: HJFM230-230V

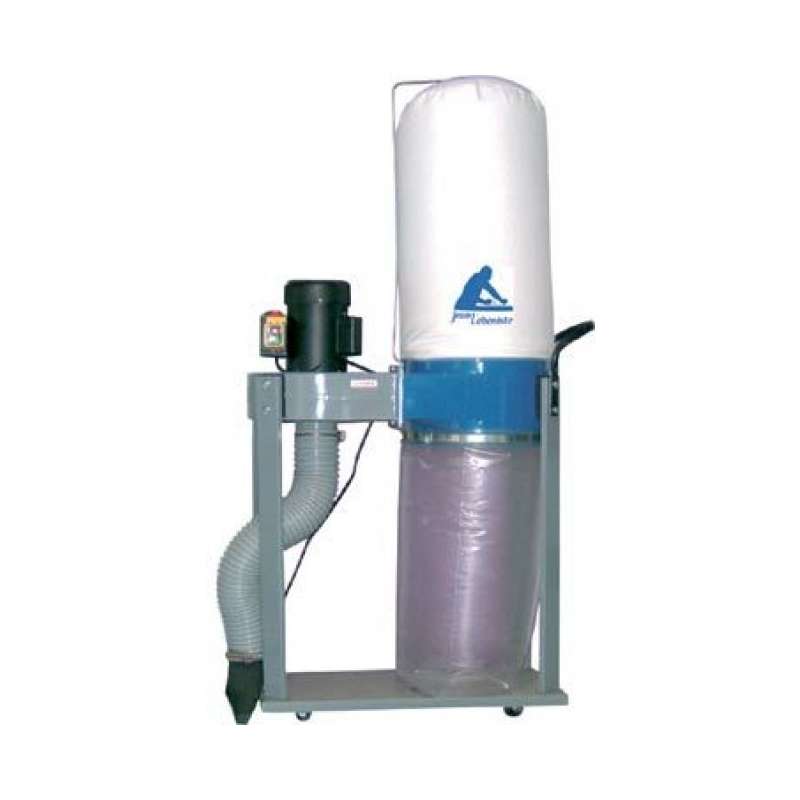

This dust collector Jean l'ébéniste FM230 has a 750W motor and a suction power of 850 m³ / h. It comes with a suction nozzle for the floor!

Quantity
Factory shipment, delivery within 4 to 6 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level dust collector.
On the other hand, the larger the size of the machines on which the vacuum cleaner is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

Take note of the features of this dust collector Jean l'ébéniste FM230 !

The dust collector Jean l'ébéniste FM230 has a 750W motor and offers a suction of 850 m3 / hour making it ideal for a DIY workshop!

Its main features are :

  • Welded base mounted on 4 independent multidirectional wheels.
  • Large handle for easy movement.
  • Floor suction nozzle attached to the base with 0.75m hose included.
  • Riveted steel propeller for greater wear resistance and profiled fins to optimize airflow and minimize noise.
  • Fan, collector, and welded posts.
  • Felt filter bag and plastic recovery bag. The clamping on the collector is done by a strap passed in the hem of the bag.
  • Connection to the fan Ø 100 mm.

Technical characteristics of the dust collector Jean l'ébéniste FM230 :

  • Engine power: 750W
  • Air suction: 850 m3 / h
  • Tank capacity: 60 liters
  • Speed ​​of rotation: 2950 rpm
  • Dimension W x W x H: 870 x 380 x 1520 mm
  • Length of pipe: 0.75 m
  • Weight: about 33 kg
  • Voltage: 230 V

The dust collector Jean l'ébéniste FM230 comes with:

  • 1 felt filter bag
  • 1 plastic recovery bag
  • 1 suction nozzle on the ground
  • 0.75 meter hose to connect the nozzle to the vacuum cleaner only
  • 2 clamps
  • Keywords
  • instructions for use

Remember to buy 100mm diameter chip suction pipe to the desired length to connect your woodworking machine to this dust collector!
