Including €2.80 for ecotax (not impacted by the discount)
Reference: HABS2480-CART

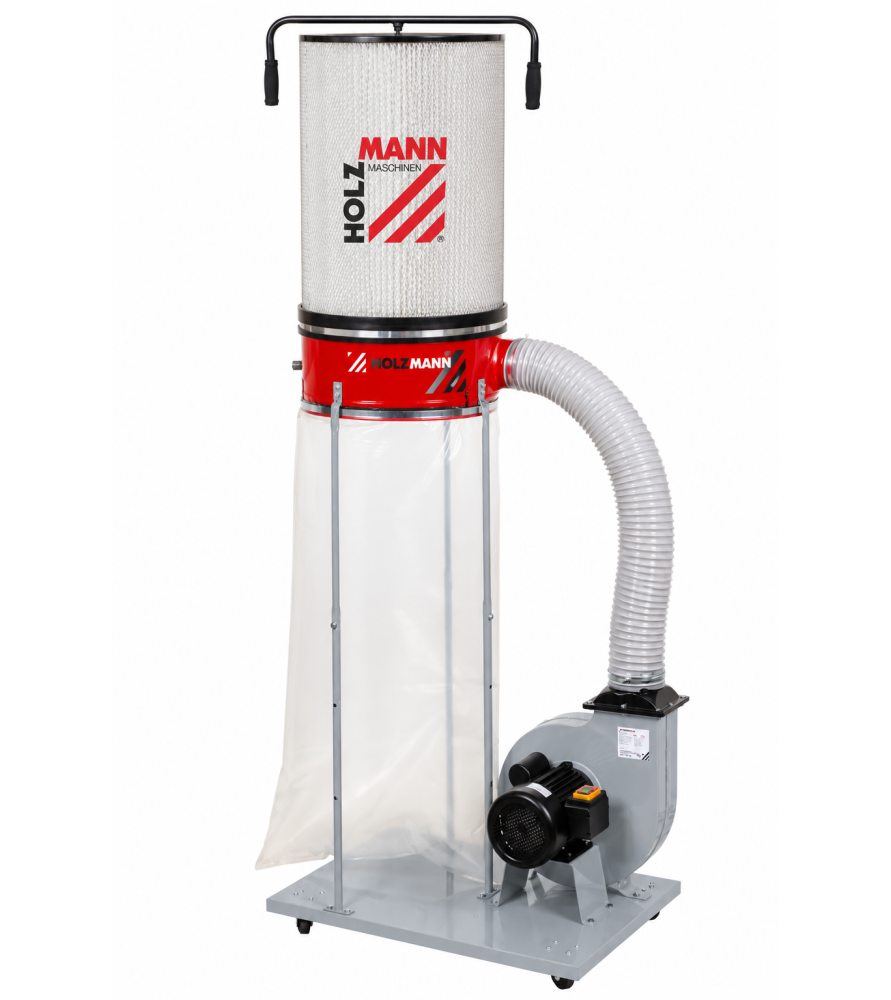

The Holzmann ABS2480 230V dust collector with FP2 filter cartridge is a powerful dust extraction solution designed for woodworking workshops.
Equipped with a 1500 W S1 motor, a maximum rated airflow of 2480 m³/h, two 100 mm extraction connections and a large 270-litre collection bag, this dust collector is suitable for extracting wood chips and sawdust from various woodworking machines.
This version includes the Holzmann FP2 filter cartridge (ABSFF2), featuring a manufacturer-rated 1 micron filtration level. Installed in place of the standard upper fabric filter bag, the cartridge improves fine dust filtration.
Its mobile base makes it easy to move the dust collector around the workshop.
The Holzmann ABS2480 230V dust collector with FP2 filter cartridge is a powerful dust extraction system designed for woodworking workshops, joinery shops and woodworkers who need an efficient solution for collecting wood chips, sawdust and airborne dust generated during machining operations.
With a manufacturer-rated maximum airflow of 2480 m³/h, a 1500 W single-phase motor and a robust metal impeller, this woodworking dust collector is suitable for use with a wide range of stationary woodworking machines.
This special package includes the Holzmann FP2 filter cartridge, manufacturer reference ABSFF2, which replaces the standard upper fabric filter bag and provides improved fine dust filtration.
With a manufacturer-rated 1 micron filtration level, the FP2 cartridge helps reduce the amount of fine dust released back into the workshop. It is particularly useful for woodworking applications involving planing, thicknessing, sawing, routing and other machining operations that generate significant quantities of wood dust.
The Holzmann ABS2480 dust collector is powered by a 230 V single-phase electric motor, making it suitable for workshops equipped with a standard single-phase electrical supply.
Its motor delivers a rated output of 1500 W in S1 operation and a manufacturer-specified output of 2250 W in S6 operation. Combined with a 300 mm metal impeller, it provides the airflow needed to collect wood chips and sawdust from compatible woodworking equipment.
The manufacturer specifies a maximum airflow of 2480 m³/h and a maximum negative pressure of 1800 Pa.
These specifications make the machine suitable for extracting wood chips from woodworking equipment such as jointer planers, thicknessers, table saws, band saws, spindle moulders and other stationary woodworking machines.
Actual extraction performance depends on the diameter and length of the extraction hose, the number of bends, the resistance of the connected machine and the condition of the filter cartridge.
For the best results, the extraction system should be properly sized for the airflow requirements of the connected woodworking machine.

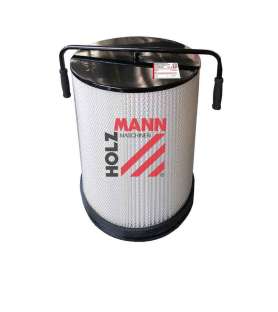

The main advantage of this package is the inclusion of the Holzmann FP2 filter cartridge (ABSFF2), which is installed on top of the dust collector instead of the standard upper fabric filter bag.
The FP2 cartridge features a pleated filtration medium designed to capture fine dust particles while allowing extracted air to pass through the filter.
Its manufacturer-rated 1 micron filtration level provides improved dust retention compared with the standard fabric filter configuration.
This is particularly beneficial in woodworking workshops where fine dust can be generated during cutting, machining and sanding operations.
The cartridge has a diameter of 500 mm and a specified height of 625 mm. A rubber sealing gasket helps provide an effective connection between the filter cartridge and the dust collector housing.
The FP2 filter is also equipped with a manual cleaning mechanism, making routine maintenance easier and helping remove accumulated dust from the filtration medium.
Regular cleaning helps reduce filter clogging and maintain adequate airflow during operation.
Although the cartridge improves fine dust filtration, it is not a HEPA filter and does not replace suitable workshop ventilation or personal respiratory protection when required.
The Holzmann ABS2480 with FP2 filter cartridge can be connected to various woodworking machines equipped with compatible dust extraction outlets.
It is particularly useful for the following applications:
The suitability of the dust collector must always be checked against the airflow requirements specified by the manufacturer of the connected machine.
To maintain efficient extraction, it is advisable to use appropriately sized hoses, minimise unnecessary bends and regularly inspect the filter and collection bag.
The Holzmann ABS2480 features two 100 mm diameter extraction connections, offering flexibility when connecting woodworking machines or an appropriately designed workshop extraction system.
These connections can be used with compatible extraction hoses and fittings, depending on the workshop layout.
Unused extraction connections should be properly closed to prevent unnecessary airflow losses.
For installations requiring additional hoses, adapters or fittings, these accessories can be selected separately according to the equipment being connected.
The correct hose diameter is essential for maintaining adequate air velocity and ensuring efficient wood chip transportation.
The Holzmann ABS2480 dust collector is equipped with a large lower collection bag offering a manufacturer-rated capacity of 270 litres.
This generous capacity is particularly useful for woodworking operations that produce substantial quantities of wood chips, such as planing and thicknessing solid timber.
The transparent collection bag allows the operator to monitor the amount of accumulated material and determine when emptying is necessary.
The collection bag has a specified diameter of 500 mm and a height of 1400 mm.
Regular emptying is recommended to prevent excessive accumulation of wood chips, which could restrict airflow and reduce extraction performance.
Before removing or replacing the collection bag, the dust collector must be switched off and disconnected from the electrical supply.
The Holzmann ABS2480 woodworking dust collector features a robust metal construction designed for reliable use in woodworking environments.
Its 300 mm riveted metal impeller is designed to move wood chips and sawdust through the extraction system.
The dust collector is mounted on a mobile base, allowing it to be repositioned around the workshop when required.
This makes it a practical option for users who operate several woodworking machines but do not have a permanently installed central dust extraction system.
The mobile configuration also allows the dust collector to be positioned close to the machine being used, helping reduce the length of extraction hoses.
The ABS2480 features telescopic supports, allowing the machine configuration to be adjusted according to the installation.
When fitting the FP2 cartridge, sufficient overhead clearance must be provided. The exact overall height of the assembled dust collector with the cartridge should be checked before installation.
This package includes:
Important: the FP2 filter cartridge replaces the standard upper fabric filter bag in this configuration. Dust extraction hoses are not included unless otherwise stated in the product offer.
Choosing the Holzmann ABS2480 230V dust collector with FP2 filter provides a practical combination of powerful wood chip extraction and improved fine dust filtration.
Unlike the standard configuration with an upper fabric filter bag, this package includes a pleated cartridge with a manufacturer-rated filtration level of 1 micron.
This makes it an attractive option for woodworkers who want to improve the dust filtration performance of their workshop extraction system without purchasing the filter cartridge separately.
Its main advantages include a high maximum rated airflow, a single-phase 230 V motor, a large 270-litre collection bag, two 100 mm extraction connections and a mobile frame.
The manual filter cleaning mechanism also makes maintenance easier and helps maintain airflow by reducing dust accumulation on the filtration medium.
Whether you are equipping a new woodworking workshop, replacing an older dust collector or upgrading your existing extraction equipment, the ABS2480 with FP2 cartridge offers a versatile solution for collecting wood chips and sawdust.
For efficient operation, the dust collector should be installed on a stable surface and connected to an electrical supply suitable for its motor specifications.
Extraction hoses should have an appropriate diameter, and unnecessary bends or excessive hose lengths should be avoided to minimise pressure losses.
The FP2 filter cartridge should be cleaned regularly according to the manufacturer's instructions to help maintain filtration efficiency and adequate airflow.
The lower collection bag should also be inspected and emptied before it becomes excessively full.
Always switch off and disconnect the dust collector from the electrical supply before cleaning, servicing or replacing the collection bag.
The machine must only be used for materials and applications authorised by the manufacturer. It must not be used to collect hot embers, explosive dusts or hazardous substances for which the equipment is not specifically designed.
With the Holzmann ABS2480 230V dust collector and FP2 1 micron filter cartridge, you can equip your woodworking workshop with a powerful wood chip extraction system featuring a large collection capacity and improved fine dust filtration.
```
