A dust extractor is essential in woodworking and joinery. It collects dust and wood chips, protecting your machine and thus extending its warranty, and most importantly, protecting the user's health!

But how do you choose the right dust extractor?

The higher the suction power, the more efficient the extractor. The higher the airflow, the more suitable and therefore powerful the motor.

For small woodworking machines such as planers and jointers up to 200 mm wide, small band saws, etc., an entry-level extractor can suffice.

However, the larger the machines to which the extractor will be connected, the more you will need to choose a dust extractor with high suction power. A 300mm wide planer/thicknesser, for example, produces large wood chips in large quantities; if the vacuum cleaner is undersized or unsuitable, it will not be able to extract what the machine requires, and therefore clogging is guaranteed, and even more so, damage to both machines!

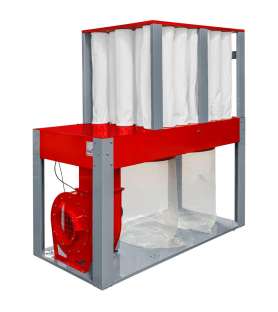

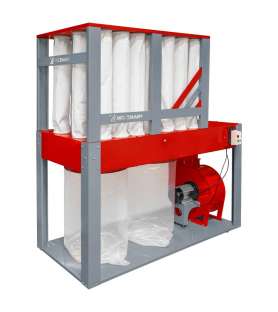

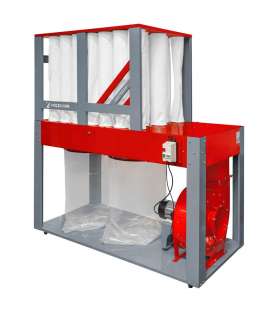

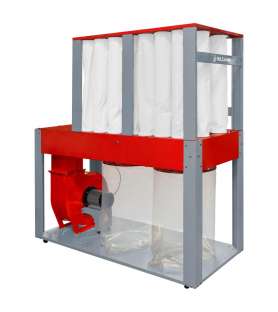

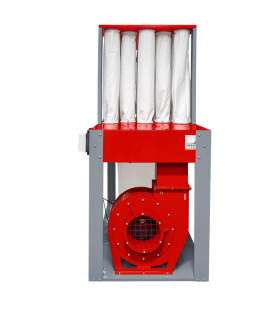

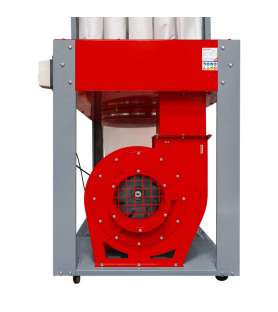

The HOLZMANN ABS7500MF_400V is the ideal solution for anyone who values efficient and powerful dust extraction during woodworking.

With an impressive dust collector capacity of 7500 m³/h and a static vacuum pressure of 3835 Pa, this dust collector provides more than enough power to reliably remove wood residues generated by your woodworking machines. Equipped with 35 filter bags and a total filter surface of 16.45 m², it ensures excellent filtration performance. This robust unit is perfectly suited for use with multiple woodworking machines simultaneously, making it an excellent choice for your woodworking workshop.

Advantages of the Holzmann ABS7500MF - 400V dust collector :

• solid construction ensures ideal flow conditions
• resistant fan wheel
• constant suction power even under continuous use
• good vacuum performance (filter dimensions: ø160x945mm x 35 = multi-filter)
• integrated moving device for easy maneuvering

The Holzmann ABS7500MF - 400V dust collector comes with :

• moving device
• 35 filters
• and 2 chip bags

Technical specifications of the Holzmann ABS7500MF - 400V dust collector :

• motor power s1 : 5500 W
• voltage : 400 V / 50 Hz
• dust collector port : 280 mm
• total dimensions : 2110 x 1140 x 2260 mm
• suction performance : 7500 m³/h
• chip bag capacity : 265 l
• chip bag diameter : 610 mm
• chip bag length : 900 mm
• fan wheel diameter : 460 mm
• hypotension : 3835 Pa
• sound power level : 99,8 dB(A)
• sound pressure level : 88,8 dB(A)
• gross weight : 320 kg
• net weight : 243 kg
