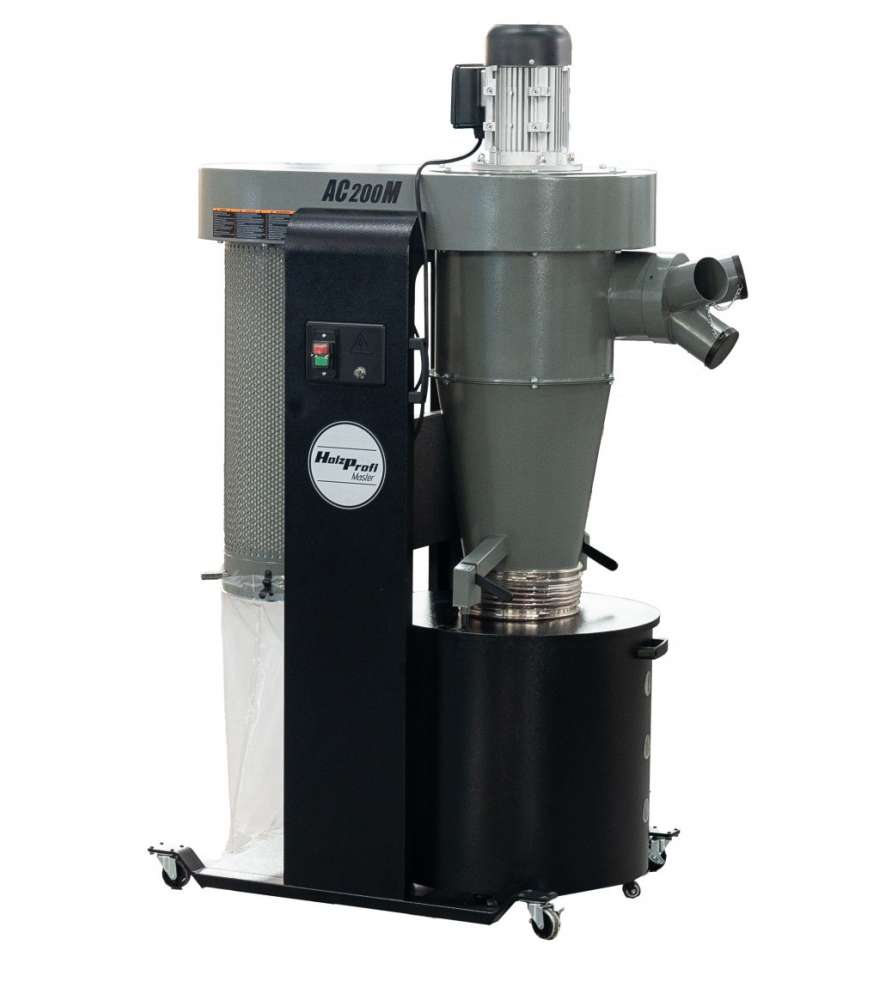

Holzprofi AC200M-TRI Cyclonic Dual Filtration Dust Collector

The Holzprofi AC200M-TRI dust collector is a mobile 400V three-phase dual-filtration extraction system designed to collect wood chips, sawdust and dust produced by woodworking machines.

With its large 175-litre collection drum, 2080 m³/h airflow capacity and 3027 Pa vacuum pressure, it provides an effective dust extraction solution for woodworking and joinery workshops.

One of the main advantages of this dust collector is its dual filtration system combining cyclonic separation with a large filter cartridge. This design separates larger wood chips and sawdust before the remaining air passes through the filter cartridge.

Dual filtration with cyclonic separation

The Holzprofi AC200M-TRI uses a two-stage filtration system.

The first filtration stage uses the cyclonic principle. Centrifugal force separates wood chips, sawdust and larger particles from the airflow before they reach the main filter.

The second filtration stage uses a Ø410 x 750 mm filter cartridge with a large 8 m² filtration area. Residual dust is collected in a PVC bag.

Holzprofi specifies a dust emission of less than 5 µ/m³.

2080 m³/h airflow capacity

The AC200M-TRI dust collector provides an airflow capacity of 2080 m³/h and a vacuum pressure of 3027 Pa.

The manufacturer specifies that the airflow capacity is measured using the Pitot tube method.

These characteristics make the dust collector suitable for collecting wood chips, sawdust and dust generated by a range of woodworking machines.

Large 175-litre collection drum

The AC200M-TRI features a large 175-litre collection drum, providing substantial capacity for collecting wood chips before emptying is required.

This capacity is particularly useful with woodworking machines that generate large quantities of chips, especially during planing, thicknessing, sawing and spindle moulding operations.

Ø200 mm extraction inlet and 3 x Ø100 mm adapter

The dust collector features a Ø200 mm main extraction inlet.

It is also supplied with a 3-way adapter with 3 x Ø100 mm connections, making it easier to adapt the dust collector to different workshop extraction layouts and connect several extraction lines.

8 m² filter cartridge with manual cleaning system

The Ø410 x 750 mm filter cartridge provides a large total filtration area of 8 m².

For easier maintenance, the Holzprofi AC200M-TRI is equipped with a manual filter cartridge cleaning system. This helps remove accumulated dust from the filter and maintain effective filtration performance.

Remote control with timer

The dust collector is equipped with a remote control with timer. Remote operation provides greater convenience in the workshop, particularly when the dust collector is installed away from the woodworking machine being used.

400V three-phase version for woodworking workshops

The Holzprofi AC200M-TRI is the 400V three-phase version of the AC200M dust collector. It is designed for workshops equipped with a three-phase electrical supply.

This configuration makes it easy to integrate the dust collector into a workshop equipped with woodworking machinery operating on a three-phase electrical supply.

Main advantages of the Holzprofi AC200M-TRI dust collector

• Cyclonic dust collector for woodworking machines
• 400V three-phase power supply
• Dual filtration: cyclone + filter cartridge
• Large 175-litre collection drum
• Airflow capacity: 2080 m³/h
• Vacuum pressure: 3027 Pa
• Ø410 x 750 mm filter cartridge
• Large 8 m² filtration area
• Specified dust emission < 5 µ/m³
• Ø200 mm main extraction inlet
• Supplied with 3 x Ø100 mm connections
• Manual filter cartridge cleaning system
• Remote control with timer
• Mobile design for convenient workshop installation

Technical specifications of the Holzprofi AC200M-TRI

High-performance cyclonic dust extraction for woodworking machines

By combining cyclonic separation, an 8 m² filter cartridge and a 175-litre collection drum, the Holzprofi AC200M-TRI provides a complete solution for collecting wood chips, sawdust and dust in the workshop.

Its 2080 m³/h airflow capacity, Ø200 mm extraction inlet with 3 x Ø100 mm adapter, manual filter cleaning system, remote control with timer and 400V three-phase power supply make it particularly suitable for woodworking machines and joinery workshops.
