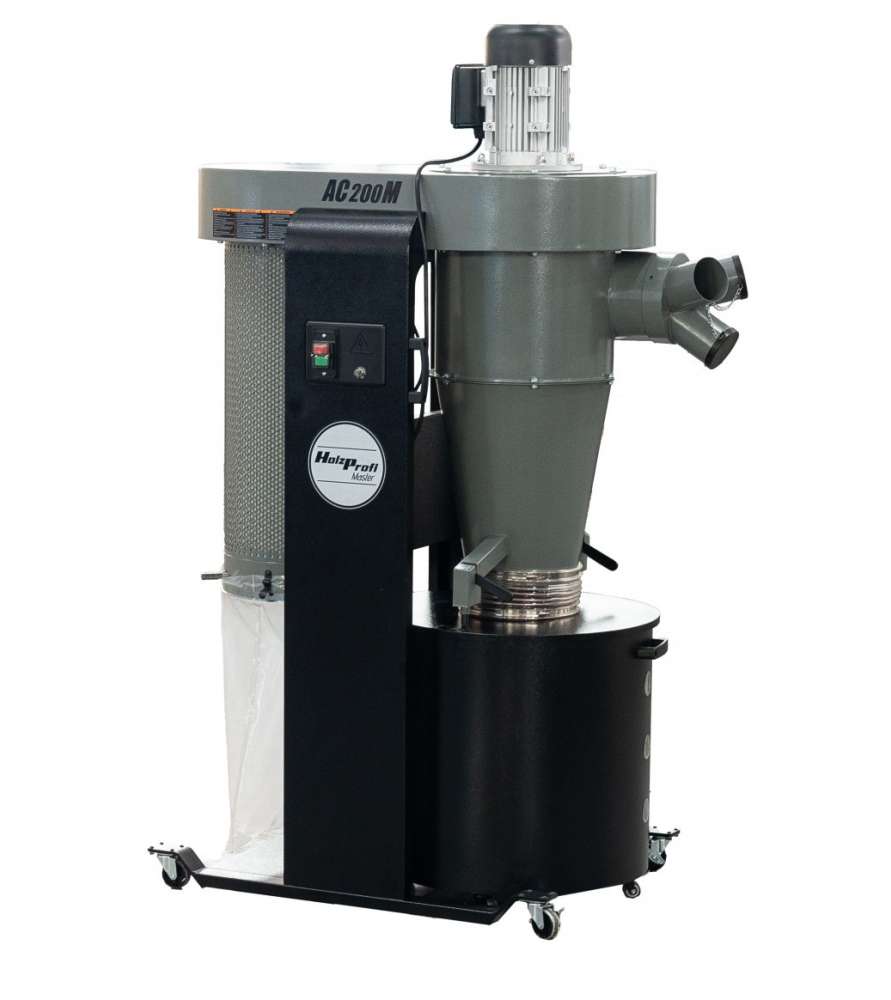

Holzprofi AC200M-MONO Cyclonic Dual Filtration Dust Collector

The Holzprofi AC200M-MONO dust collector is a mobile dual-filtration extraction system designed to collect wood chips, sawdust and dust produced by woodworking machines.

With its large 175-litre collection drum, 2080 m³/h airflow capacity and 3027 Pa vacuum pressure, it provides an effective dust extraction solution for woodworking and joinery workshops.

One of the main advantages of this dust collector is its dual filtration system combining cyclonic separation with a large filter cartridge. This design separates larger wood chips and sawdust before the remaining air passes through the filter cartridge.

Dual filtration with cyclone and filter cartridge

The Holzprofi AC200M-MONO uses a two-stage filtration system.

The first stage uses cyclonic separation. The airflow is set into a rotating motion, allowing centrifugal force to separate wood chips, sawdust and other larger particles from the air before they reach the main filter.

The second filtration stage uses a Ø410 x 750 mm filter cartridge with a large 8 m² filtration area. Residual dust is collected in a PVC bag.

Holzprofi specifies a dust emission of less than 5 µ/m³.

2080 m³/h airflow capacity

The AC200M-MONO dust collector provides an airflow capacity of 2080 m³/h and a vacuum pressure of 3027 Pa.

The manufacturer specifies that the airflow capacity is measured using the Pitot tube method.

These characteristics make the dust collector suitable for collecting the wood chips, sawdust and dust generated by a range of woodworking machines.

Large 175-litre collection drum

The AC200M-MONO features a large 175-litre collection drum, providing substantial capacity for collecting wood chips before emptying is required.

This capacity is particularly useful when working with woodworking machines that generate large quantities of chips, especially during planing, thicknessing, sawing and spindle moulding operations.

Ø200 mm extraction inlet and 3 x Ø100 mm adapter

The dust collector features a Ø200 mm main extraction inlet.

It is also supplied with a 3-way adapter with 3 x Ø100 mm connections, making it easier to adapt the extractor to different workshop dust extraction layouts and connect several extraction lines.

8 m² filter cartridge with manual cleaning system

The Ø410 x 750 mm filter cartridge provides a large total filtration area of 8 m².

For easier maintenance, the Holzprofi AC200M-MONO is equipped with a manual filter cartridge cleaning system. This helps remove accumulated dust from the filter and maintain effective filtration performance.

Remote control with timer

The dust collector is equipped with a remote control with timer. Remote operation provides greater convenience in the workshop, particularly when the dust collector is installed away from the woodworking machine being used.

Main advantages of the Holzprofi AC200M-MONO dust collector

• Cyclonic dust collector for woodworking machines
• Dual filtration: cyclone + filter cartridge
• Large 175-litre collection drum
• Airflow capacity: 2080 m³/h
• Vacuum pressure: 3027 Pa
• Ø410 x 750 mm filter cartridge
• Large 8 m² filtration area
• Specified dust emission < 5 µ/m³
• Ø200 mm main extraction inlet
• Supplied with 3 x Ø100 mm connections
• Manual filter cartridge cleaning system
• Remote control with timer
• Mobile design for convenient workshop installation

Technical specifications of the Holzprofi AC200M-MONO

High-performance cyclonic dust extraction for woodworking workshops

By combining cyclonic separation, an 8 m² filter cartridge and a 175-litre collection drum, the Holzprofi AC200M-MONO provides a complete solution for collecting wood chips, sawdust and dust in a woodworking workshop.

Its 2080 m³/h airflow capacity, Ø200 mm extraction inlet with 3 x Ø100 mm adapter, manual filter cleaning system and remote control with timer make it a highly practical dust collector for woodworking machines and joinery workshops.
