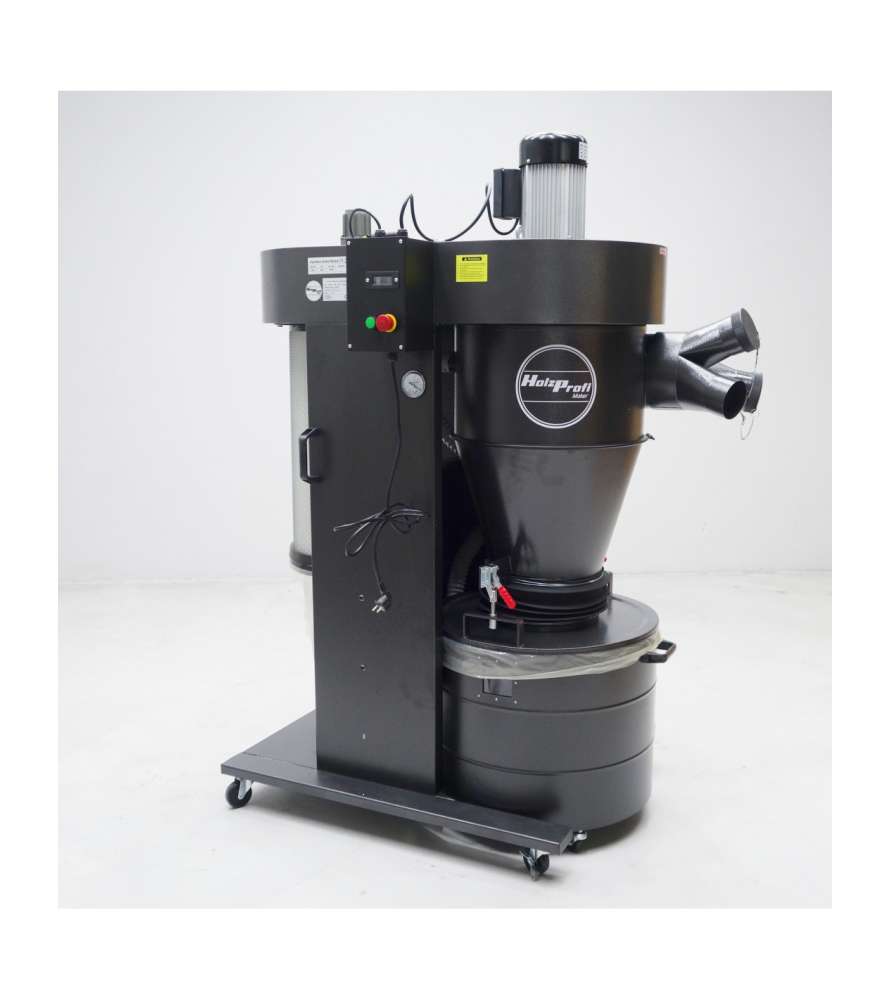

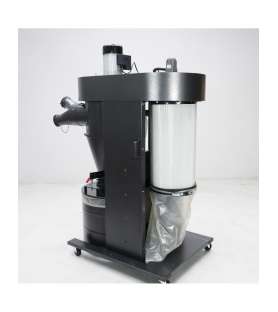

The cyclonic double filtration suction unit Holzprofi R150M 190 litre is equipped with a dual filtration system to ensure optimal air quality.

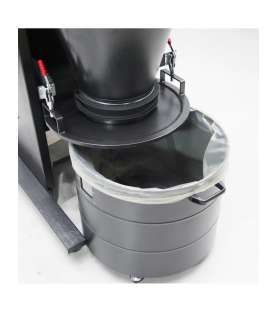

The first filtration stage is cyclone-type, using centrifugation to separate the air from suspended shavings and sawdust, enabling efficient extraction of larger particles. The second filtration stage is provided by a filter cartridge, capturing residual fine dust, ensuring better protection of the ambient air. The remaining particles are then collected in a PVC bag.

The R150M also features practical features, such as a timed electric cleaning system that keeps the filters clean for long-lasting efficiency, as well as a remote control for added convenience. A tank full warning light informs you when the tank needs to be emptied, ensuring continuity in the filtration process.

The filter cartridge has three layers: the first filters 10% at 3 microns, the second filters 90% at 3 microns, and the third filters 99.97% at 3 microns, for a filtration level of 99.5% at 3 microns, HEPA class H13.

Technical specifications of the Holzprofi R150M 190-liter cyclonic double-filter vacuum unit :

• Dust emission <1µ/m3
• Suction connection diameter: 200 mm
• Vacuum pressure: 2,800 Pa
• Collection tank: 190 L
• Filter surface area: 2.84 m²
• Motor (230V/50Hz): 3 kW / 4 HP
• Sound pressure: 78 dB
• Air flow rate: 2,100 m³/h (new measurement) / 2,700 m³/h (old measurement)
• Weight: 155 kg

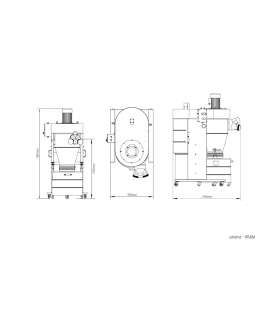

• Dimensions: 1,343 x 900 x 1,827 mm
• Packaging: 1,350 × 730 × 1,145 mm
• Total weight: 180 kg
• Supplied with cow's feet 3 x 100mm diameter outlets
• Timed electric cleaning and remote control
• Tank full warning light
