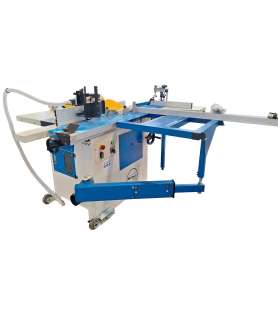

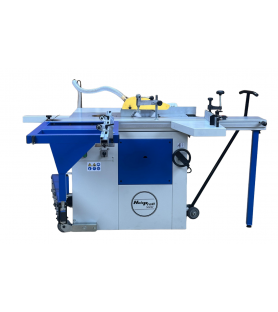

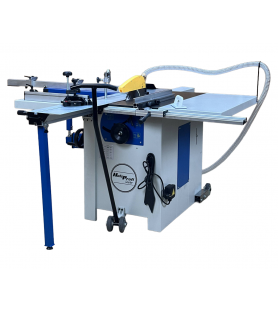

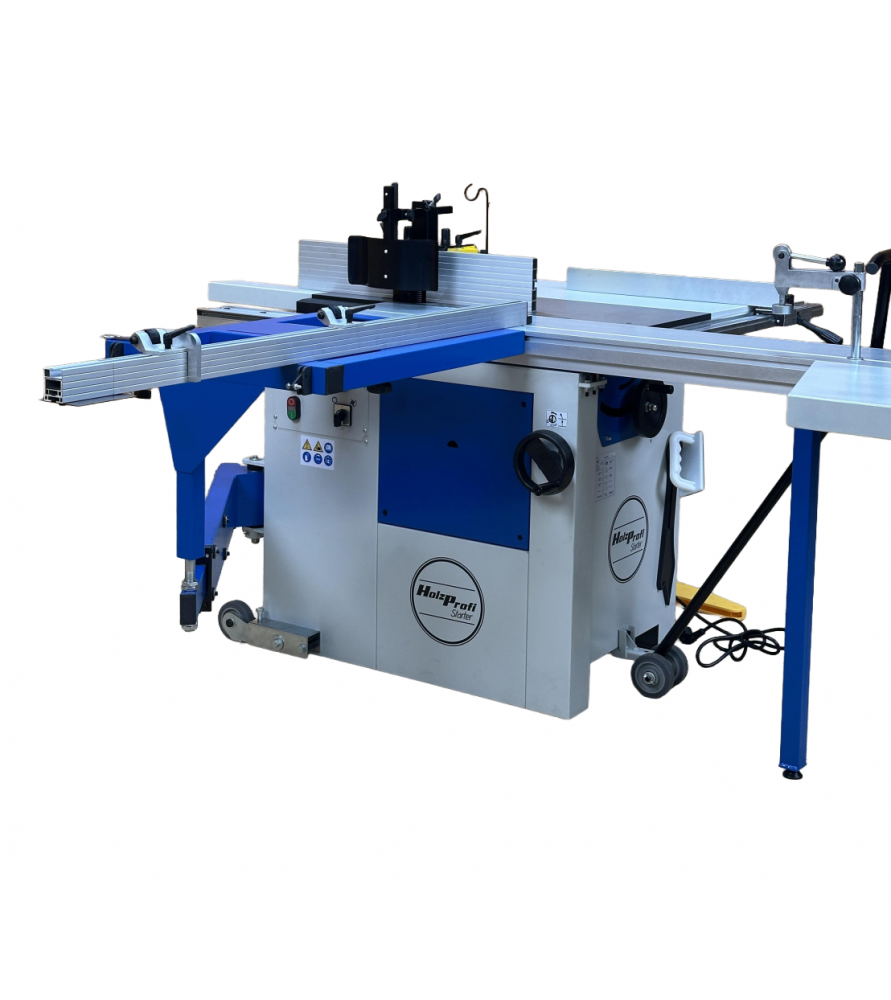

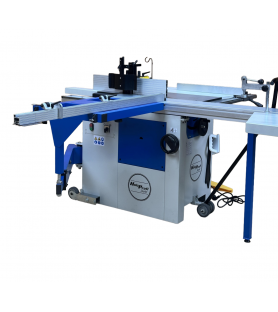

The Holzprofi Starter TS1600 spindle moulder/saw is equipped with a 1600 mm aluminum sliding table!

This sliding table ensures clean, precise cuts while facilitating workpiece handling.

Advantages of the Holzprofi Starter TS1600 spindle moulder/saw :

• The integrated circular saw is robust and powerful, while the spindle moulder offers great flexibility for your profiling and assembly work.
• Powered by a single-phase connection, this combination machine is suitable for all workshops, even without a three-phase installation.
• Compact, reliable, and efficient, it meets the needs of demanding woodworkers who want to optimize their workspace without compromising on quality.

The Holzprofi Starter TS1600 spindle moulder/saw comes with :

• Telescopic fence (1200-2000mm)
• 2 length stops
• Eccentric hold-down
• Miter guide with screw hold-down
• Side shelf
• Outfeed shelf

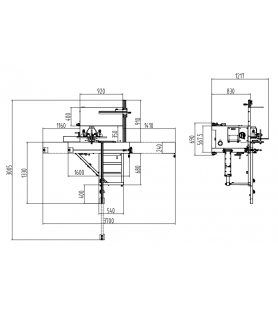

Technical specifications of the Holzprofi Starter TS1600 spindle moulder/saw :

Saw

• Cast iron table: 920x410mm
• Sliding carriage close to the blade: 1600x238mm
• Cutting length: 1600 mm
• Cutting width: 600 mm
• Speed: 4000 rpm for the blade
• Max. diameter Blade diameter: 254 mm
• Tiltable from 0 to 45°
• Maximum cutting height at 90°: 78 mm, 63 mm at 45°
• Slider frame: 680 x 530 mm
• 2.2 kW/S1 brake motor, 100% 3 HP, single-phase 230V/50Hz

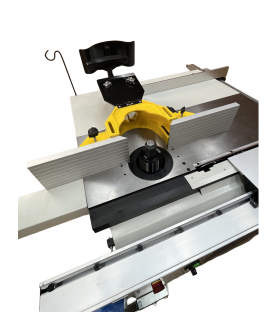

Spindle moulder

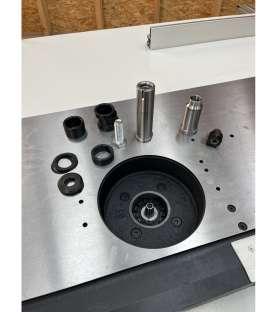

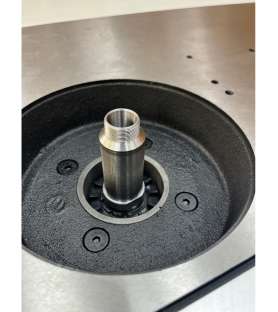

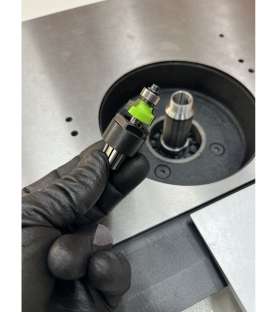

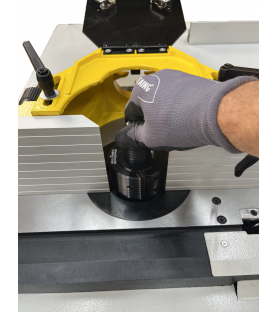

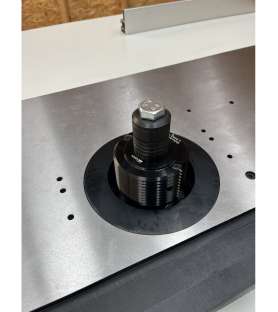

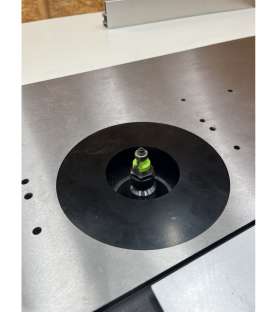

• Interchangeable 30 mm diameter fixed spindle and 8 mm collet for router bits, 100 mm working length
• Maximum tool diameter 160 mm in the spindle bore and housing
• 4 speeds: 1400/4000/6000/9000 rpm
• Equipped with a mechanical spindle travel drive
• 1.5 kW/2 HP/S1 brake motor, 100% /50Hz
• Duty dust extraction ports: 2 x 100 mm + 1 x Ø40mm
• Noise level: <80dB
• Weight approx.: 185 kg
• Packaging: 1100 x 720 x 950 mm + 1630 x 265 x 265 mm / 258 kg
• CE compliant

Important recommendation from Probois for many woodworking machines:

Before starting up, always check the inside of your machine, ensuring the belts are correctly installed, tightening the bolts, greasing the tables, etc., as vibrations can occur during transport.

Always use a 2.5 mm² wire extension cord.

The extension cord must not exceed 10 meters and must not be coiled.

The use of reels, power strips, or multi-socket adapters is PROHIBITED.

Install an electrical meter with dedicated machine start fuses of at least 16A.

Have a compliant electrical meter with neutral and ground connections.

Always work with a dust extractor for your health and to maintain the machine warranty.

Always grease cast iron tables with wood lubricant.

Always work with safety guards in place.
