The Holzprofi Maker CB410-SPIRAL-MONO 5-operation woodworking combination machine has been designed with special attention to small workshops. It offers a perfect balance between compactness, performance and advanced technology, thus meeting the specific needs of these demanding workspaces.
Important recommendation from Probois for many woodworking machines such as this woodworking combination machine :
Before starting, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, grease the tables, etc. because the various transports cause vibrations.
Always use an extension cord with a 2.5² wire thickness
The extension cord must not exceed 10 meters and must not be coiled
Provide an electric meter with special machine start-up fuses of at least 16A
Have a standard electric meter with neutral and earth
Always work with a chip vacuum cleaner for your health and for the machine warranty
Always grease the cast iron tables with wood slide
Always work with the guards in place
Do not work with blunt or dull irons, this can damage the mechanism, the advance of the planer, break the belt
The machine does not start? The chip ejection housing is probably not properly installed on the jointer-planer side, it is a safety feature!
Technical characteristics of the Holzprofi Maker CB410-SPIRAL-MONO 5-operation woodworking combination machine :
Saw
Cast iron table / 1650x380mm

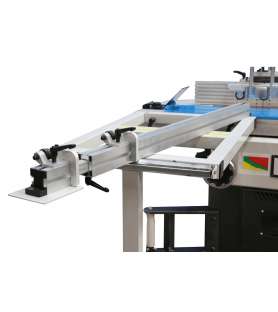

Sliding carriage flush with the blade 2000x270mm
Cutting length: 2000mm
Cutting width: 780mm Speed 4050 rpm for the blade and 8500 rpm for the scoring saw
Max. Ø. blade 315mm and Ø90 for the scorer
Tiltable from 0 to 45°
Max cutting height at 90°: 100 mm, at 45°: 80 mm
Carriage frame: 880x580mm
Telescopic ruler (1200-2200), stop and eccentric presser
3Kw/ 4CV brake motor, single-phase 230V/50Hz
Spindle moulder
Tiltable from 0 to -45°. 4 speeds (1800/3000/6000/9000)

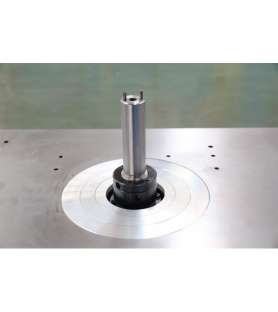

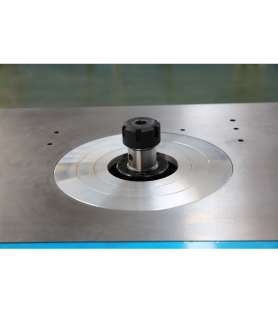

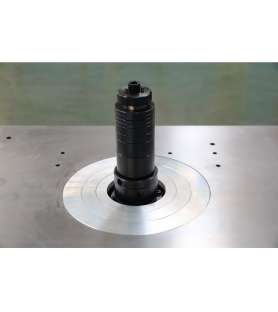

Interchangeable spindle of Ø30mm and 100mm useful height for the tool spindle with bore and ER25 collet, Ø8mm for the spindle receiving router cutters
Illuminated display of the selected speed
Gear change by belt
Adjustable aluminum input and output cheeks
Guide with safety bars and tenon plate supplied as standard
Maximum diameter of the tool in the well 180mm and 200mm in the housing

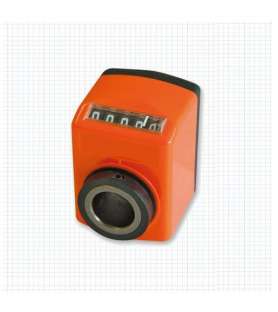

Reading by needle counter of the movement of the spindle
Motor 2.8 kW (3.8CV) /230V /50 Hz
Planer thicknesser
Cast iron table with simultaneous opening length 1600mm
Planing width: 410mm
Planing height: 230mm
Planing table: 600x410mm
Perpendicular guide: 1100x152mm

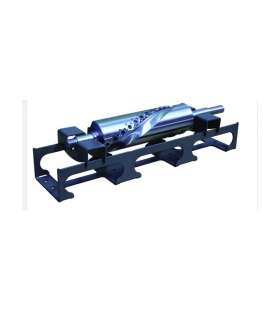

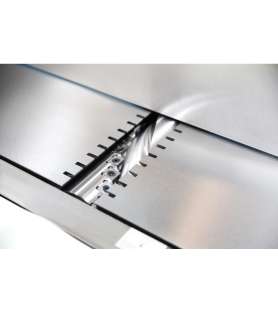

Arbor Ø 95mm with 4 helices equipped with 70 carbide plates 15x15x2.5mm with rounded corners
Feed speed 6m/min
Max. chip intake 4mm in planing and 5mm in planing
Brake motor 3kw/ 4CV/50Hz; Mono 230V. Rotation 4500rpm
Suction nozzle diameter: 100mm
Suction outlet 3xØ100mm + 1xØ40mm.
Noise level < 80dB
CE compliant
Weight approx. 600Kg
The Holzprofi Maker CB410-SPIRAL-MONO 5-operation woodworking combination machine is supplied with:
Safety guide and tenoning board
