Important recommendation from Probois for many woodworking machines such as this woodwork combination machine :

• Before starting up, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, grease the tables, etc. because the various transports cause vibrations.
• Always use an extension cord with a wire thickness of 2.5²
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Provide an electric meter with special machine start fuses of at least 16A
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always grease the cast iron tables with wood slide
• Always work with the guards in place
• Do not work with dull or blunt irons, this can damage the mechanism, the feed of the planer, break the belt
• The machine does not start? The chip ejection housing is probably incorrectly positioned on the thicknesser-planer side, it is a safety feature!

Technical characteristics of the Holzprofi Maker CB310-SPIRAL-MONO 5-operation woodworking combination machine :

Saw

• Cast iron table: 1650x380mm
• Sliding carriage flush with blade 2000x270mm
• Cutting length: 2000mm
• Cutting width: 780mm
• Speed: 4050 rpm for the blade and 8500 rpm for the scoring saw
• Max. Ø. blade: 315mm and Ø90 for the scorer
• Tiltable from 0 to 45°
• Max cutting height at 90°: 100 mm, at 45°: 80 mm

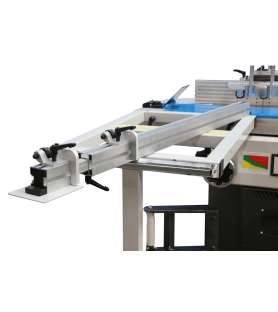

• Carriage frame: 880x580mm
• Telescopic ruler (1200-2200)
• eccentric stop and presser
• 3Kw/ 4CV single-phase 230V/50Hz brake motor

Spindle moulder

• Spindle moulder tiltable from 0 to -45°. 4 speeds (1800/3000/6000/9000)

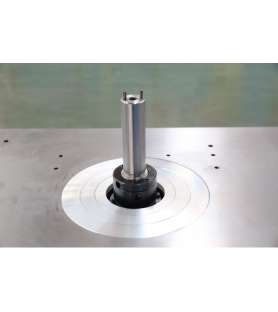

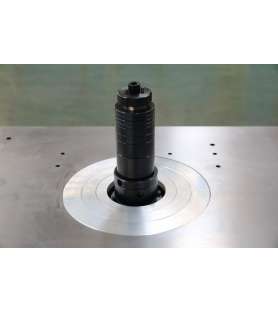

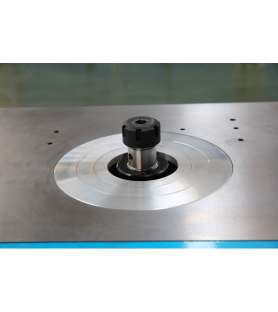

• Interchangeable spindle of Ø30mm and 100mm useful height for the tool spindle with bore and ER25 collet, Ø8mm for the spindle receiving router cutters
• Illuminated display of the selected speed
• Gear change by belt
• Adjustable aluminum input and output cheeks
• Guide with safety bars and tenon plate supplied as standard
• Maximum diameter of the tool in the well 180mm and 200mm in the housing

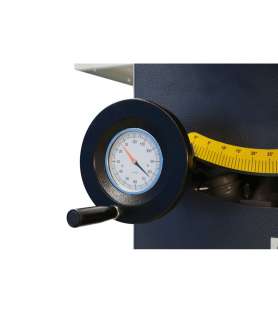

• Reading by needle counter of the movement of the spindle
• Motor 2.8 kW (3.8CV) / 230V / 50 Hz

Planer thicknesser

• Cast iron table with simultaneous opening length 1400mm
• Planing width: 310mm
• Planing height: 230mm
• Planing table: 600x310mm
• Perpendicular guide: 1100x152mm

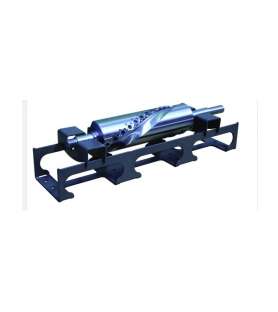

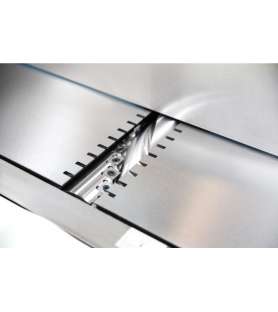

• Shaft Ø 75mm with 2 helices equipped with 30 carbide plates 15x15x2.5mm
• Feed speed 6m/min
• Max. chip intake 3mm in planing and 4mm in planing
• Brake motor 3kw/ 4CV/50Hz; Mono 230V. Rotation 4500rpm
• Suction nozzle diameter 100mm
• Suction outlet 3xØ100mm + 1xØ40mm
• Sound level < 80dB
• CE compliant
• Weight approx. 500Kg
• Packaging 2300x1130x1105 +1450X640X950mm

The 5-operation woodworking combination machine Holzprofi Maker CB310-SPIRAL-MONO is delivered with :

• safety guide and tenoning shelf
