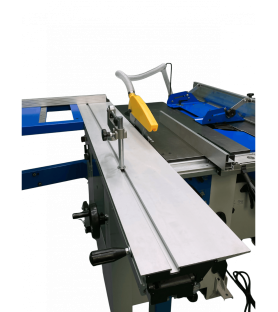

Introductory price for this new helical shaft combination from the Jean l'ébéniste brand!

Finally a woodworking combination with a 250 mm planing width and a helical shaft! It is equipped with a large carriage of 1600 mm length flush with the blade and a movement kit included.

Technical characteristics of the Jean l'ébéniste COMB250-SPIRAL 5-operation woodworking combination with helical shaft - 230V:

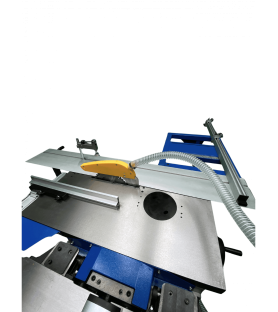

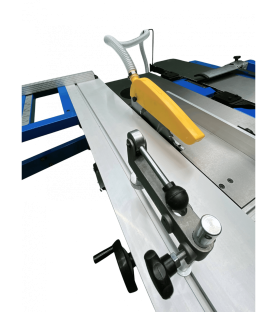

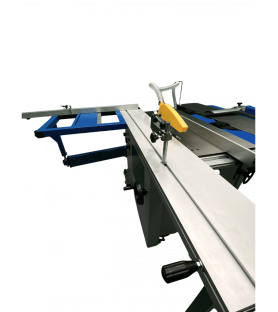

Saw :

• Robust cast iron table (920x410mm)
• Sliding trolley (1600x238mm)
• Cart frame: 680x530 mm
• Cutting length: 1600 mm
• Cutting width: 600 (300 saw table + 300 planer table)
• Blade diameter x bore: 254 x 30 mm
• Blade speed 4000 rpm Tiltable 0 to 45°
• Max cutting height at 90°: 78 mm
• Max cutting height at 45°: 63 mm
• Telescopic ruler 1200-2000 mm with stop and eccentric presser
• 230V motor of 2.2 KW - 3.0 HP

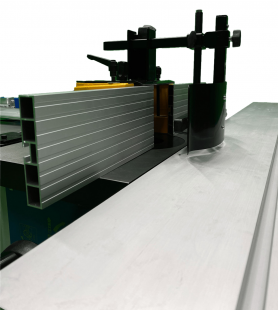

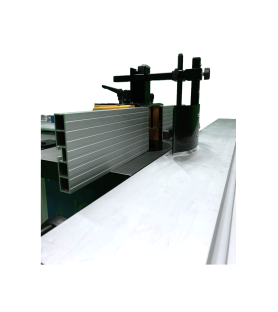

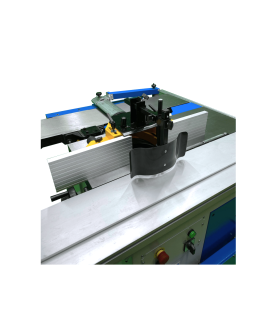

Spindle moulder :

• Interchangeable fixed shaft Ø30mm
• Collet arbor for router bits
• Max tool diameter: 160 mm (well and housing)
• Mechanical drive shaft movement
• 4 speeds (1400/4000/6000/9000 rpm)
• 230V motor of 1.5 KW - 2CV

Jointer planer

• Cast iron table with simultaneous opening length 1090mm
• Jointing width: 250mm
• Planing height: 225mm
• Height reading by mechanical meter at 1/10th
• Planing table: 545x258 mm
• Perpendicular guide: 700x123 mm
• Ø70mm shaft with 2 propellers of 24 carbide inserts 15x15x2.5 mm
• Shaft rotation speed: 5500 rpm
• Sound level <80db
• 230V motor of 2.2kW - 3.0 HP

General

• 3 suction outlets of 100 mm + 1 in 40 mm for the saw
• Moving kit included
• CE compliant
• Machine weight: 350 kg
• Package size: 1680x280x150 + 1260x1140x970mm
• Gross weight: 420 kg

Important recommendation from Probois for many woodworking machines such as this combination:

• Before starting up, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, grease the tables, etc. because the various transports cause vibrations.
• Always use an extension cord with a 2.5² wire size
• The extension cord must not exceed 10 meters and must not be coiled
• The use of drums, triplets or multi-grips is PROHIBITED.
• Provide an electric meter with special machine start-up fuses of at least 16A
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the warranty of the machine
• Always grease cast iron tables with wood slider
• Always work with protections in place
• Do not work with unsharpened or dull irons, this can damage the mechanism, the feed of the planer, break the belt
• The machine does not start? Undoubtedly the chip ejection casing is incorrectly positioned on the planer jointer side, this is a safety feature!

IMPORTANT FOR DELIVERY AND START-UP OF XS MACHINES!

XS machines are only shipped by 19 ton truck with tailgate. The delivery location must be planned so that this type of truck can approach and maneuver easily. If access is impossible by this type of truck, the machine must remain at the carrier's depot close to the customer who will then organize removal by its own means (trailer, van). If the carrier has the possibility to offer delivery by smaller truck, the additional costs will be the responsibility of the customer and must be paid before delivery. Getting started: The prices do not include assembly or electrical installation which must be done by a professional in order to avoid any damage to the machine's motors and electrical circuits that the warranty cannot cover.
