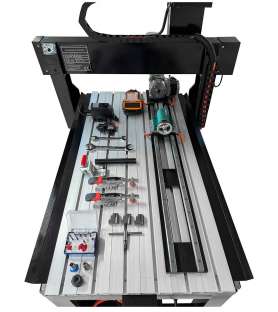

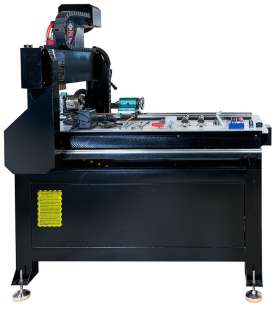

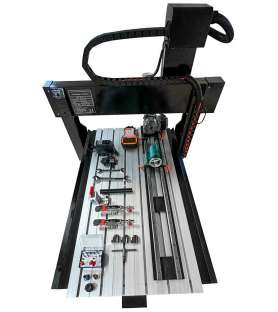

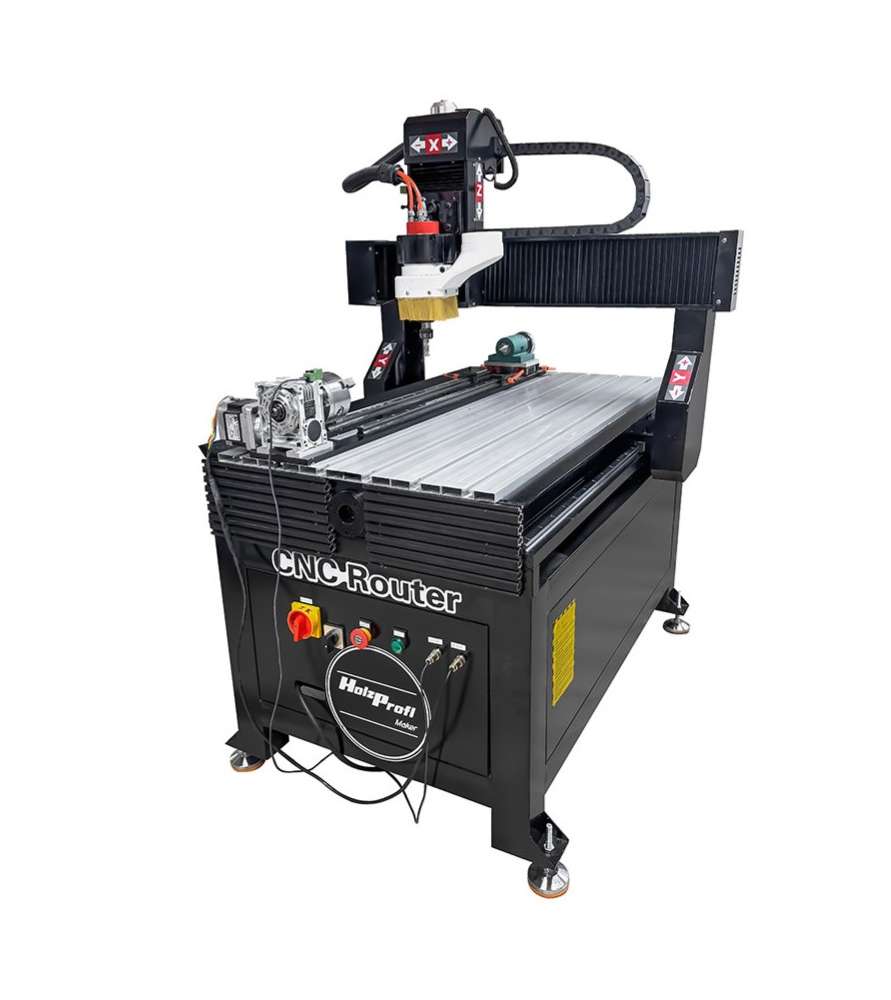

Equipped with a 2.2kW/3HP/230V spindle and Nema 34 stepper motors, the Holzprofi Maker CN6090 900 x 600 mm CNC milling machine ensures precision and performance.

Thanks to its DSP control unit, it offers efficient and safe operation.

Technical specifications of the Holzprofi Maker CN6090 900 x 600 mm CNC milling machine :

• Working dimensions (length x width x height): 900 x 600 x 200 mm
• End machining: 60 mm
• Cast iron frame: 1230 x 730 x 100 mm
• Mechanically welded sheet metal frame. Working height 750 mm without feet
• 2.2 kW/3 HP/230 V spindle powered by a Kerun frequency inverter and water-cooled
• Nema 34 stepper motors for the X, Y, Z, and A axes

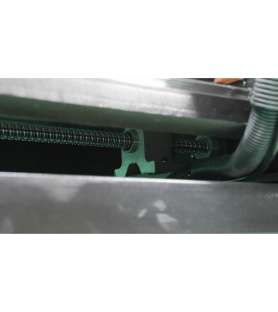

• The X, Y, and Z axes are driven by 2505 ball screws

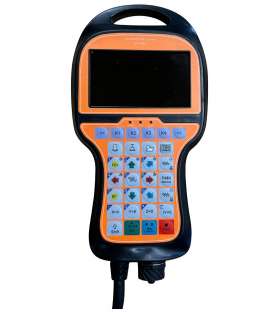

• DSP-type control unit

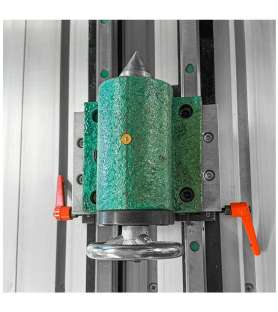

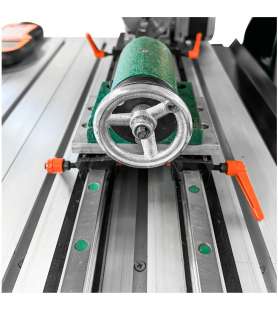

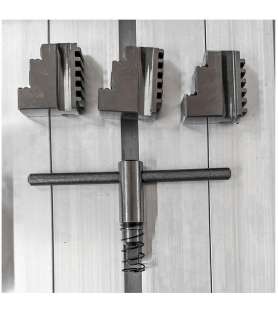

• A axis, chuck diameter 100 mm, center distance 800 mm
• 20 x 20 mm ground stainless steel guide rail for ball bearings

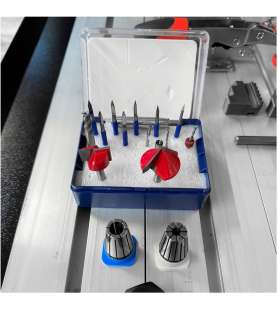

• ER20 collet for the spindle, with Ø3, 6, and 12.7 mm collets

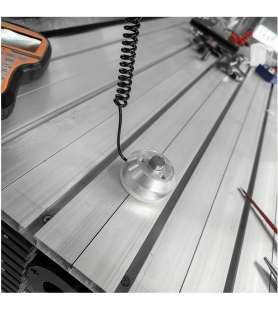

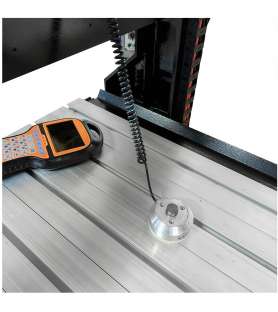

• Supplied with depth sensor
• Dimensions: 1400 x 1180 x 1600 mm
• Packaging: 1550 x 1235 x 1590 mm
• Weight: 320 kg
• CE compliant
