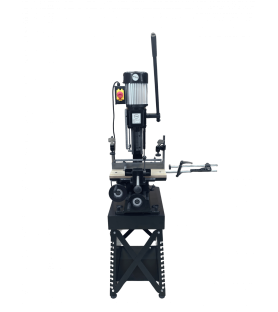

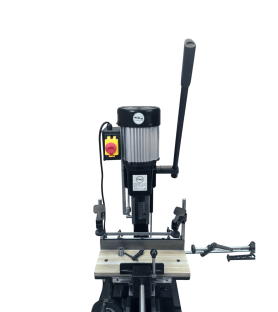

Holzprofi Maker MAB01M square chisel mortiser

The Holzprofi Maker MAB01M-MONO is a single-phase square chisel mortiser designed for accurate and repeatable mortising in wood. It is particularly well suited to producing mortise and tenon joints for furniture making, joinery, cabinetmaking and a wide range of solid wood projects.

Unlike mortising with a conventional drill bit, a square chisel mortiser combines the action of an auger bit and a hollow square chisel to produce mortises with square corners. This reduces the amount of additional finishing required and makes repetitive joinery faster and more consistent.

With its stationary design, movable worktable and multiple positioning adjustments, the MAB01M-MONO provides a practical dedicated solution for workshops where accurate mortising is an important part of the woodworking process.

Mortising capacity from 6 to 20 mm

The Holzprofi Maker MAB01M-MONO accepts square chisels from 6 to 20 mm, providing useful versatility for many common woodworking and joinery applications.

Its maximum mortising depth of 76 mm allows relatively deep mortises to be produced in workpieces of various sizes.

The machine also provides a 235 mm drilling stroke, while the maximum distance between the chisel and fence is 140 mm.

These capacities make the mortiser suitable for both individual projects and repetitive work where several identical mortises need to be produced accurately.

Movable table for accurate workpiece positioning

One of the key advantages of this Holzprofi square chisel mortiser is its adjustable worktable.

The table measures 400 × 150 mm and provides 175 mm of lateral travel to both the left and right, together with 145 mm of front-to-back travel.

These movements allow the workpiece position to be adjusted relative to the chisel without having to manually reposition it for every operation. This is particularly useful when producing wider mortises in several passes or repeating the same mortise on a series of components.

A 55 × 400 mm fence also helps position and support the workpiece during mortising.

Powerful 1.1 kW single-phase 230 V motor

The MAB01M-MONO is equipped with a 1.1 kW / 1.5 HP motor operating from a 230 V single-phase, 50 Hz power supply.

This makes it suitable for workshops equipped with an appropriate single-phase electrical supply, without requiring a three-phase installation.

The spindle runs at 2800 rpm, while the chuck has a maximum capacity of 16 mm.

This specification makes the MAB01M-MONO a genuine stationary woodworking mortiser suitable for joiners, cabinetmakers, craftsmen and demanding woodworking enthusiasts looking for a dedicated machine for mortise and tenon joinery.

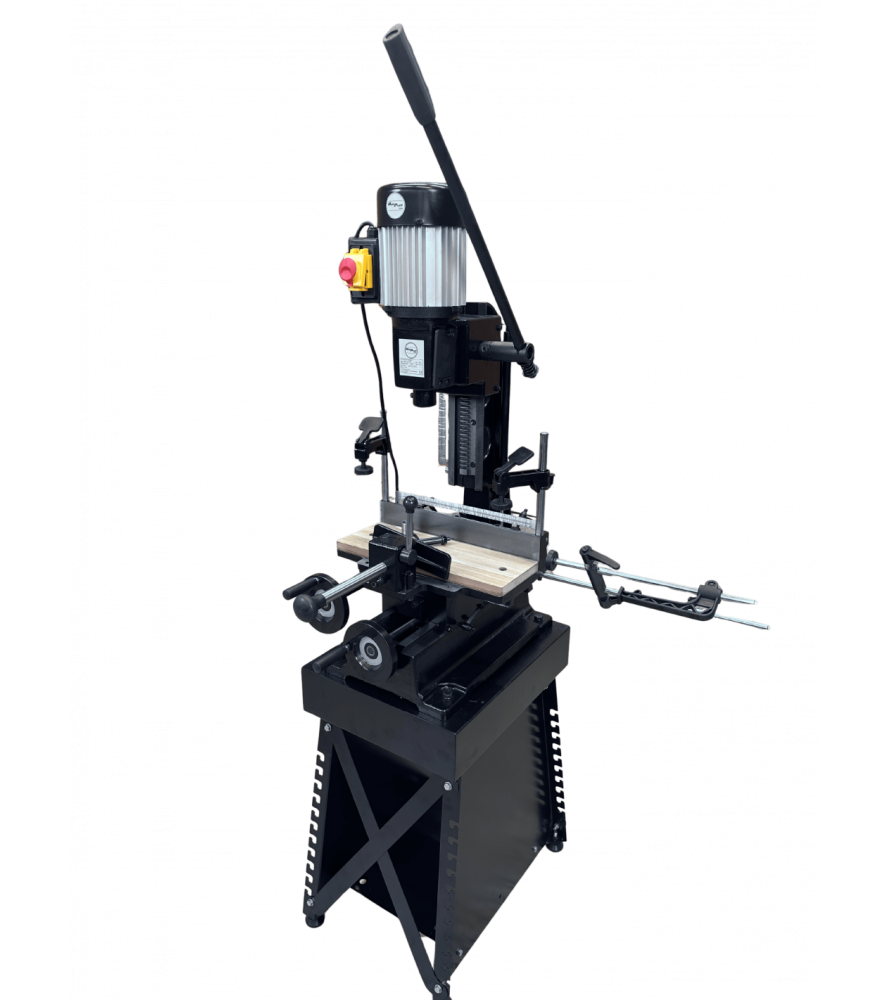

A 100 kg mortiser supplied with its stand

With a weight of 100 kg, the Holzprofi Maker MAB01M-MONO is designed as a substantial stationary workshop machine.

Its overall dimensions are 900 × 500 × 1720 mm.

The mortiser is supplied with its stand, creating a self-contained mortising station without requiring a dedicated workbench for installation.

This is particularly convenient in workshops where mortising is carried out regularly: the machine can remain installed and ready for use whenever a new mortise and tenon joint needs to be produced.

Why choose a square chisel mortiser?

In traditional furniture making, joinery and solid wood construction, the mortise and tenon joint remains one of the most widely used woodworking joints.

Using a machine specifically designed for mortising can improve consistency and save valuable time, particularly when a project requires several identical joints.

The Holzprofi Maker MAB01M-MONO square chisel mortiser offers several practical advantages:

• production of mortises with square corners;

• 6 to 20 mm square chisel capacity;

• maximum mortising depth of 76 mm;

• movable table for accurate workpiece positioning;

• easier production of repeatable mortises;

• a dedicated mortising machine that avoids repeatedly setting up another woodworking machine for the same operation.

It is therefore particularly useful in joinery, cabinetmaking and furniture workshops where accurate, repeatable mortise and tenon joints are regularly required.

A dedicated woodworking mortiser

The MAB01M-MONO focuses on one essential woodworking operation: accurate mortising.

This dedicated design is one of its main strengths. When regularly building furniture, frames, doors or other projects incorporating mortise and tenon joints, having a purpose-built mortiser can make the workflow more efficient and help maintain consistent settings from one workpiece to the next.

Its combination of a 6–20 mm mortising capacity, 76 mm maximum depth, movable table and 230 V single-phase motor makes the Holzprofi Maker MAB01M-MONO an attractive option for workshops looking for a substantial stationary mortiser without requiring a three-phase power supply.
