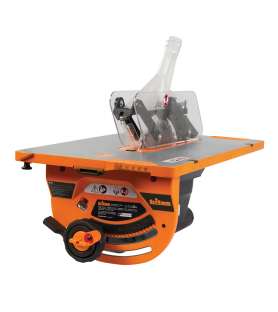

Triton TWX7CS002 contractor saw bench module designed to be used with the Workcentre TWX7 !

These two tools will provide a complete set of saw bench for work and results worthy of professionals.

The advantages of Triton TWX7CS002 module:

• Powerful 1800 W motor and 254 mm diameter precision blade with tungsten carbide tips.
• Ability to adjust the blade height to 86 mm and angle adjustment to 0-45 ° to make complex bevel cuts.
• Reporter and longitudinal guide that will also allow you to make splits, cross-cuts and cuts of tabs.
• Double dust extraction device located under the table.
• Easy to assemble and configure.
• Many optional accessories available to increase its functionality.
• Safety push button included for total control of the workpiece near the blade for safe working
• Notches to position hands at the table surface to facilitate removal of modules

Technical specifications of Triton TWX7CS002 module:

• Range of bevel angle: 0 - 45 °
• Blade diameter: 254 mm
• Blade type: 40 teeth, carbide
• Diameter of the bore of the blade: 30 mm
• Cutting capacity - 45 °: 59,5 mm
• Cutting capacity - 90 °: 86 mm
• Slitting capacity: 775 mm
• Unloaded speed: 4,500 rpm
• Power: 1,800 W
• Product weight: 15,2 Kg
• Table height: 900 mm
• Size of the table: 851 x 650 mm

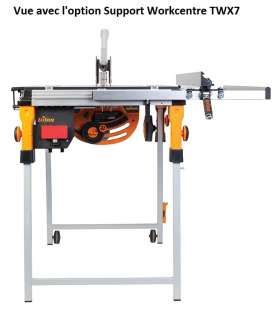

Warning: Can only be used with the versatile workstation Triton Workcentre TWX7 !

Click here to read the user guide
