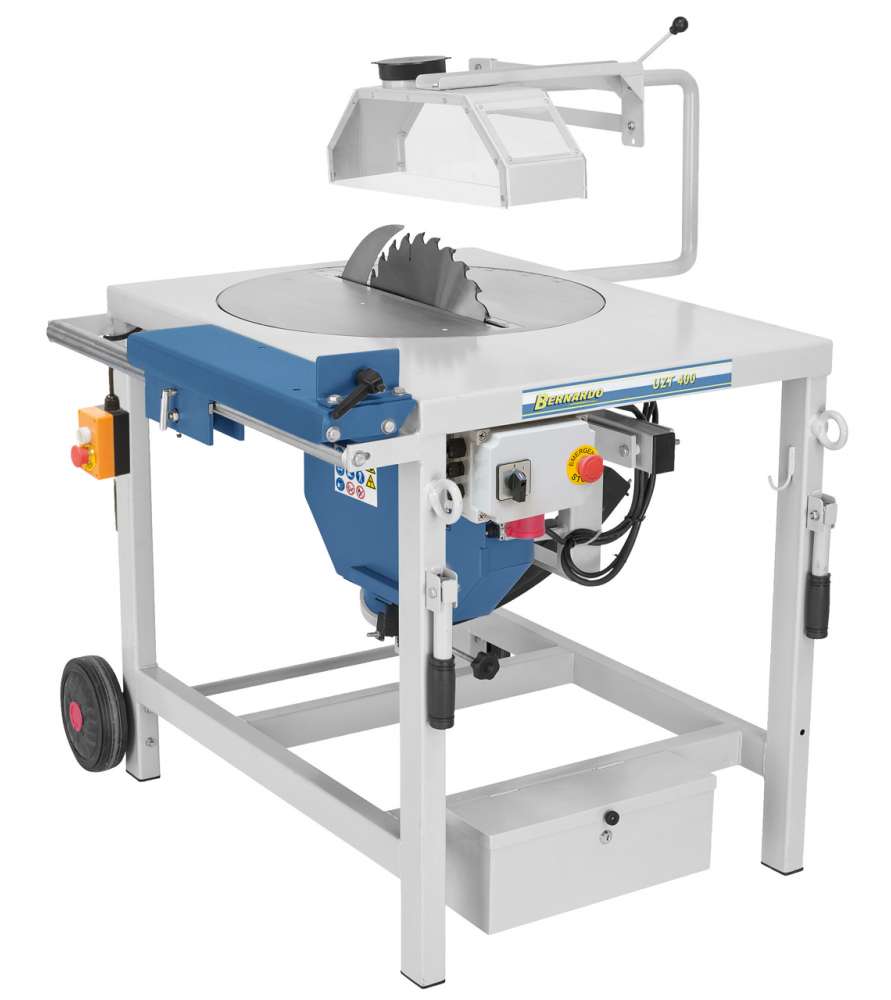

The Carpenter Table circular saw Bernardo UZT400 is an ideal machine for experienced craftsmen and hobbyists!

It has a cutting height of 120 mm.

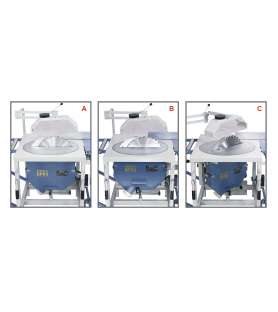

The machine comes with: a carbide saw blade 400 x 4.0 x 30 mm 28 teeth, a blade protector with dust extraction and a sliding table.

Specifications of the Carpenter Table circular saw Bernardo UZT400 :

• Table dimensions: 945 x 715 mm
• Max. of the saw blade: 400 x 30 mm
• Max Height cutting 90 ° / 45 °: 120/90 mm
• Height of the table: 845 mm
• Roller roller (optional): 1000 x 550 mm
• Roller extension (optional): 1000 x 550 mm
• Main blade speed: 2800 rpm
• High output / low suction: 100/100 mm
• Output motor power S1 100%: 2.8 kW (3.8 CV)
• S6 engine power input 40%: 3.9 kW (5.3 HP)
• Voltage: 400 V
• Dimensions of the machine (W x D x H): 1350 x 1400 x 1200 mm

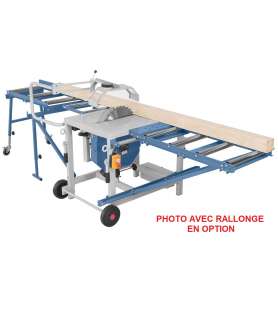

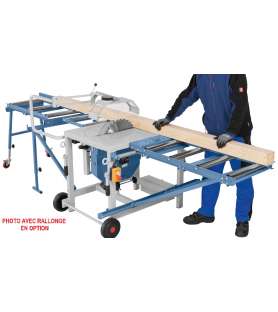

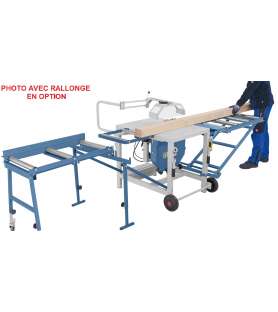

• Dimensions of the machine with table and roller extension (optional): 3500x1400x1200 mm
• Weight approx. : 210 kg
