General description of the Bernardo BBM35M hinged drill - Grass :

• With stop for drilling depth adjustment
• Compact, transportable machine
• Simple to use, no compressed air required
• Powerful motor (0.75 kW) for extended operation
• Precise drilling for furniture hinges, Blum or Grass type of your choice

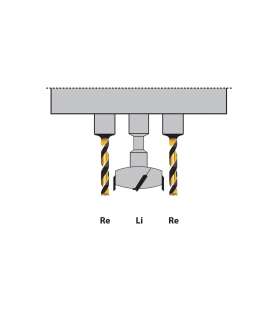

The Bernardo BBM35M - Grass hinged drill is delivered with :

• Hinge cutter diam. 35mm left
• 2 drills diam. 2mm right
• 3-pin drill head
• Stop rule 0.5 m with two folding stops
• Manual lever
• Table

Technical characteristics of the Bernardo BBM35M hinged drill - Grass :

• Drilling diameter: 35 mm
• Number of pins: 3
• Manual command
• Tightening of parts: manual
• Maximum table/spindle distance: 85 mm
• Maximum table/drill distance: 50 mm
• Table dimensions: 500 x 350 mm
• Adjustable table: 105 mm
• Length of guides (with extensions): 500 mm
• Rotation speed: 3000 rpm
• Motor power: 0.75 kW
• Voltage: 230 V
• Machine dimensions (L x D x H): 500 x 500 x 520 mm
• Weight (approx.): 19 kg
