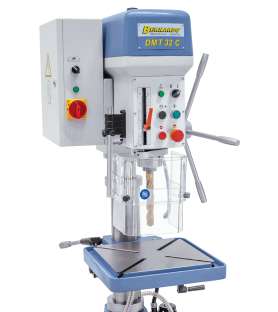

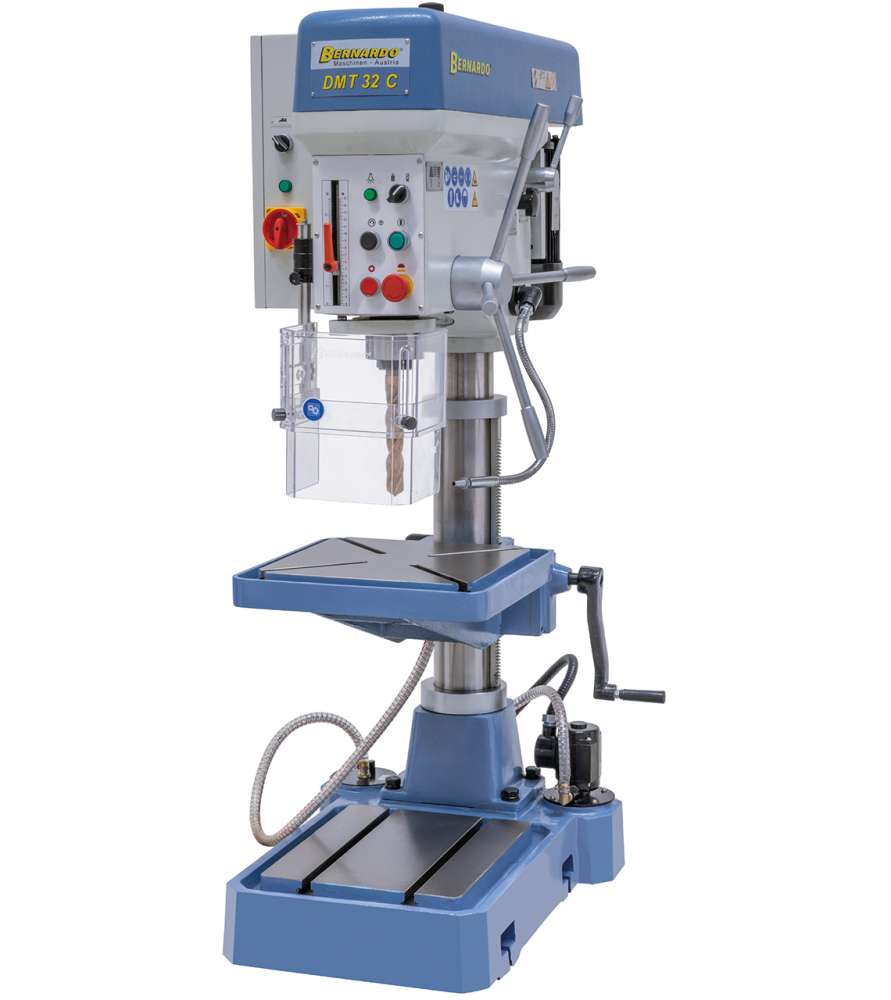

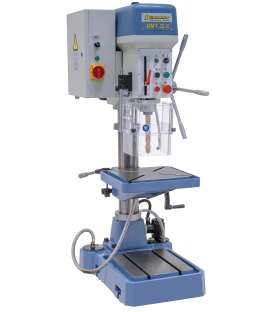

Advantages of the bench drilling machine Bernardo DMT 32 C - 400V :

• Protective cover in accordance to CE standards, adjustable to various drill bit sizes

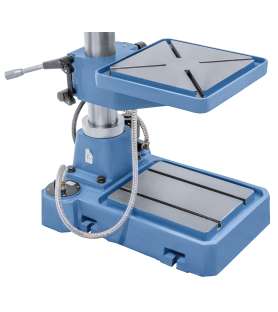

• Surface treated work table, height adjustable via gear rack and crank
• Polished base plate features T-slots for mounting of large workpieces

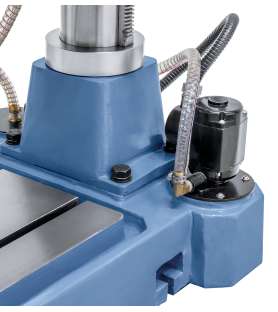

• Precisely treated base includes T-slots and integrated coolant device

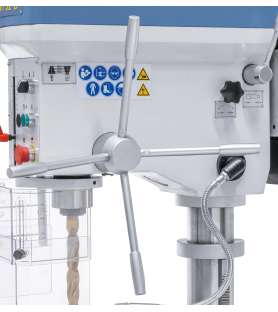

• Adjustable drill depth stop allows accurate spindle feed
• High concentricity ≤ 0,02 mm measured at spindle
• Powerful motor even at continuous operation
• Solid and powerful drilling machine for high demands
• Including automatic reverse rotation for thread cutting

The bench drilling machine Bernardo DMT 32 C - 400V comes with :

• Drill chuck 5 - 20 mm / B 22
• Drill chuck arbor MT 3 / B 22
• Morse taper drill sleeve MT 3 / MT 2
• Coolant device
• Thread cutting device
• LED machine light

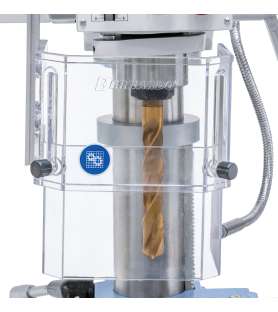

• Height adjustable protective cover

Technical specifications of the bench drilling machine Bernardo DMT 32 C - 400V :

• Drilling capacity max : 32 mm
• Thread cutting max. : M 24
• Morse taper : MT 3

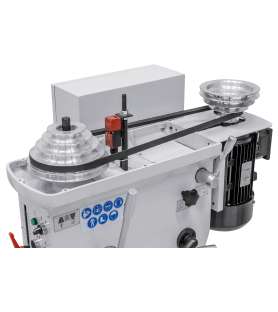

• Spindle speed : (5) 320 - 1820 rpm
• Distance spindle to column : 265 mm
• Distance spindle to table max. : 375 mm
• Distance spindle to column : 735 mm
• Spindle stroke : 150 mm
• Column diameter : 100 mm
• Table size / T-slot size : 332 x 332 mm / 14 mm
• Working surface of base : 385 x 315 mm

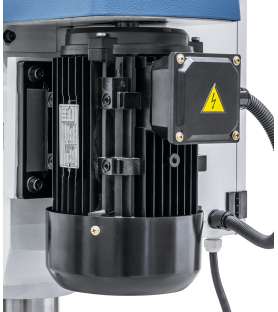

• Motor power output S1 100% : 1,5 kW / 400 V
• Motor power input S6 40% : 2,2 kW / 400 V
• Machine dimension (W x D x H) : 520 x 920 x 1420 mm
• Weight approx. : 280 kg
