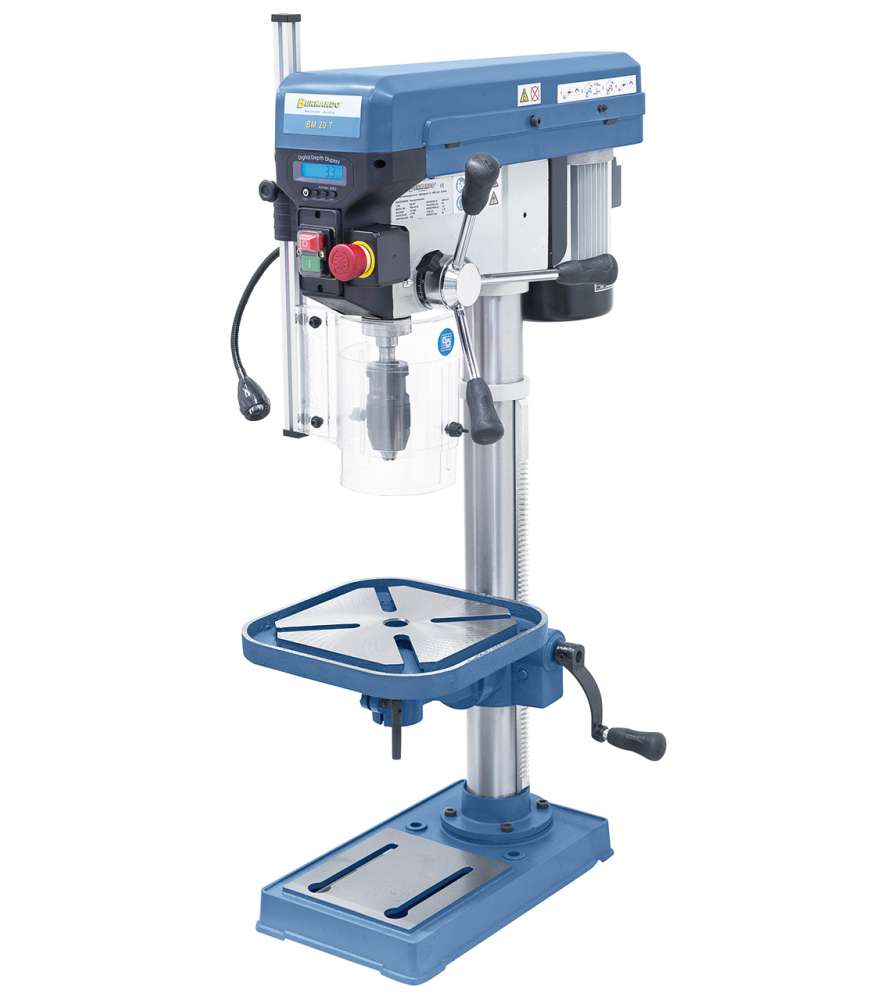

Bernardo BM20T bench drill press accurate and powerful!

This machine is equipped with high-quality ball bearings that guarantee a high concentricity of ≤ 0.03 mm measured at the spindle.

Advantages of the Bernardo BM20T Bernardo bench drill press:

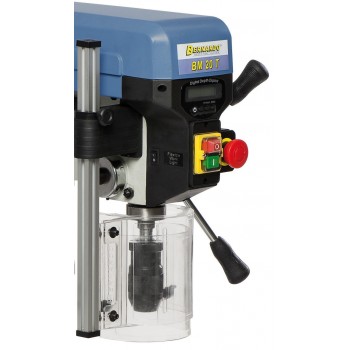

• Digital display for spindle stroke and LED lamp
• Gray cast iron blocks for smooth running

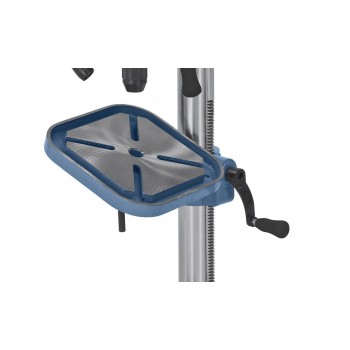

• Large drilling table features t-diagonal slots.
• Inclination of the drilling table (± 45 °), the rack allows adjustment in height.
• High performance motor according to IP 54
• Base of machine with T slots
• Handles providing great comfort when using

Technical specifications of the Bernardo BM20T bench drill press:

• Steel drilling capacity of 20 mm
• Chuck: 1-16 mm / B 18
• Morse taper: MT 2

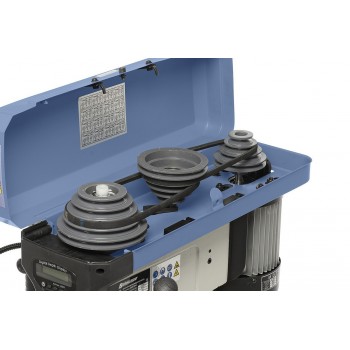

• Spindle speed: (16) 180 - 2770 rpm
• Distance axis of the column: 160 mm
• Tilting table: -45 ° to + 45 °
• Distance spindle to table max. : 440 mm
• Distance from the spindle to the base: 630 mm
• Spindle stroke: 80 mm
• Diameter of the column: 72 mm
• Size / size table T-slot: 285 x 285 mm / 16 mm
• Work surface of the base: 205 x 190 mm
• Output motor power S1 1 100%: 0.55 kW / 400V as desired
• S6 motor power input 40%: 0.8 kW / 230V or 400V as desired
• Size of the machine (W x D x H): 400 x 590 x 980 mm
• Weight approx. : 45 kg

Delivery with the Bernardo BM20T bench drill press:

• Chuck 1-16 mm / B 18
• MT shaft chuck 2 / B 18
• Digital pin indication of race
• T-slot nuts
• Height-adjustable protective cover
• Separate emergency stop switch
• Tools
